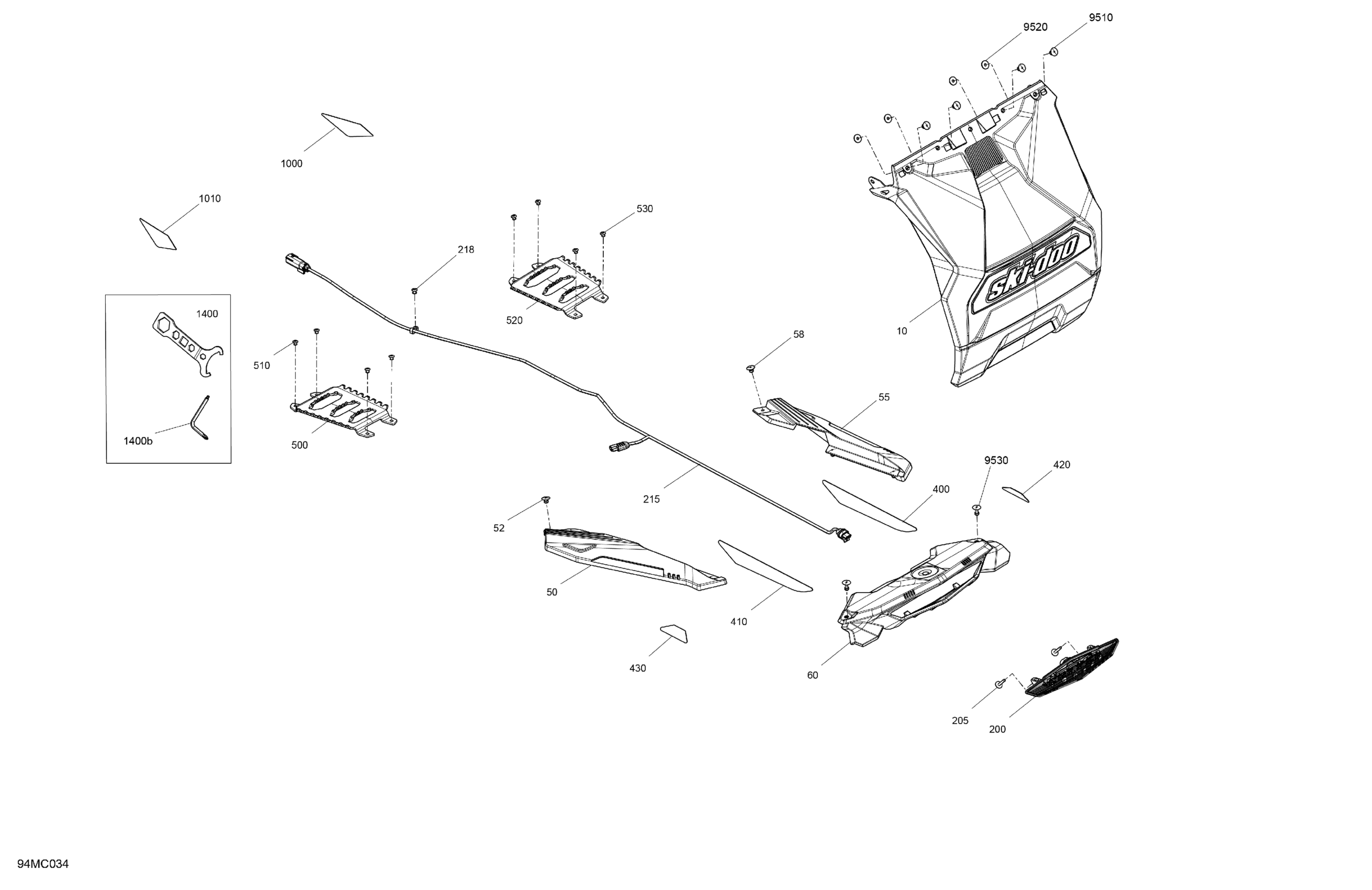

Ski-Doo GRAND TOURING 900 ACE - LTD - 2023 Miscellaneous - Utilities Diagram

Description

Price

Snow Gard Ass'y

520001640

$126.99

LH Rear Guard

520001854

$15.29

Pop Rivet 3/16"

293150103

$0.55

RH Rear Guard

520001858

$15.29

Pop Rivet 3/16"

293150103

$0.55

Light Fairing

520001487

$20.99

200

Tail Light

520002710

$78.49

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

215

Taillight Wiring Harness | Includes 8000 to 8000a

515178404

$37.99

218

Pop Rivet 3/16"

390402200

$0.35

400

Red, RH Rear Reflector

520001900

$19.99

410

Red, LH Rear Reflector

520001901

$19.99

420

Red, RH Rear Reflector

520001842

$4.99

430

Red, LH Rear Reflector

520001860

$4.99

500

Deep Black, Passenger Footrest

520002896

$48.99

510

Rivet 3/16"

293150102

$0.70

520

Deep Black, Passenger Footrest

520002896

$48.99

530

Rivet 3/16"

293150102

$0.70

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400b

520001767

$50.99

1400b

Key

520001815

$11.79

9510

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

9520

Washer

517124300

$0.19

9530

Pop Rivet 3/16"

293150100

$1.09
