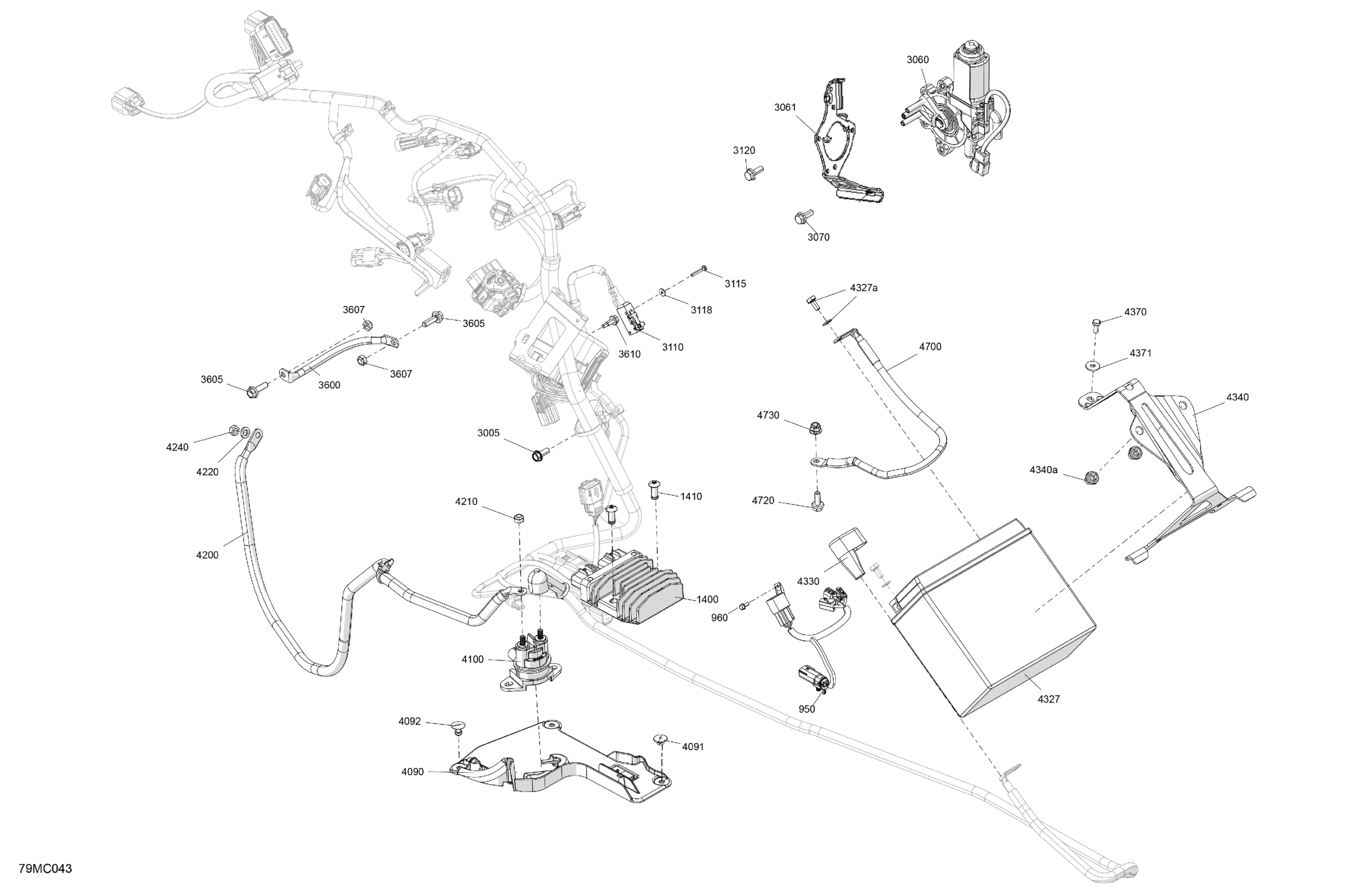

Ski-Doo GRAND TOURING 900 ACE - LTD - 2023 Electric - Lower Section Diagram

Description

Price

950

Compressor Wiring Harness

515178649

$49.99

960

Hex Flange Screw M5 X 11

210251150

$2.19

1400

Voltage Regulator | Package-DPS, Model-Europe

710005569

$109.99

1410

Monobolt Rivet 6.4

293150182

$3.19

3005

Hex. Flange Screw M6 X 16

250001062

$1.59

3060

Motor Ass'y

515180200

$189.99

3061

Stopper Plate

515178896

$27.99

3070

Hex. Flange Screw M6 X 16

207661644

$1.49

3110

Switch Ass'y

515177460

$47.99

3115

Hex Screw M3 X 20

207132044

$2.19

3116

Rivet | Not Shown

515178495

$1.49

3118

Flat Washer M3, Stainless

234032600

$1.49

3120

Hex. Flange Screw M6 X 20

210262040

$2.19

3600

Ground Wire

515178338

$16.99

3605

Hex. Flange Screw M6 X 20

207662044

$2.09

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

3610

Hex. Flange Screw M5 X 16

250000911

$1.49

4090

Starter Relay Support

515178244

$3.59

4091

Pop Rivet 3/16"

293150103

$1.49

4092

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4100

Starter Relay

278003012

$43.99

4200

Battery Wire

515178336

$48.99

4210

Elastic Stop Nut M6

232561434

$1.99

4220

Flat Washer 6 mm

234061410

$1.49

4240

Elastic Stop Nut M6

232561434

$1.99

4327

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$159.95

4327a

Battery Bolt Kit

250000282

$7.49

4330

Protector Cap | STD

710001817

$11.49

4340

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

4340a

Insert

293450275

$12.99

4370

Hex. Screw M5 X 12

207151244

$1.49

4371

Washer | DS 650 X

391301600

$1.49

4700

Ground Wire

515178155

$27.99

4720

Hex. Flange Screw M6 X 16

207661644

$1.49

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.19
