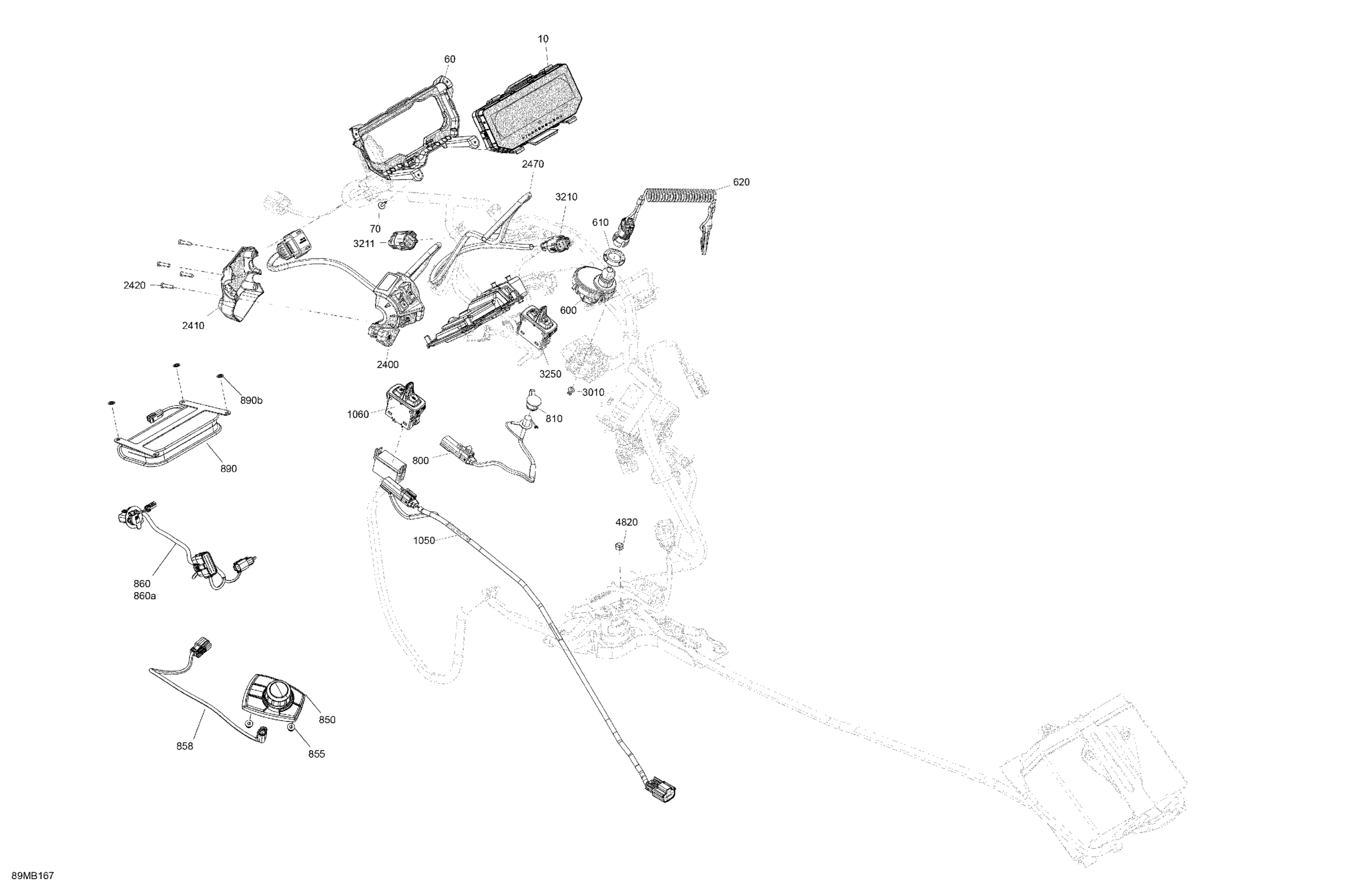

Ski-Doo GRAND TOURING 900 ACE - LTD - 2022 Electric - Upper Section - VIP Hi-End Gauge Diagram

Description

Price

Full Size Color Multifunction Gauge

515179262

$1,055.35

Gauge Support

515178965

$5.17

Screw M4 X 16

250000725

$2.87

600

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

610

Safety Nut (DESS Switch)

278002963

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

800

Heated Visor Wiring Harness

515178645

$36.12

810

Cap

572103300

$9.65

850

Switch

515178325

$479.20

855

Elastic Flange Nut M6 X 1.0

233261416

$1.74

858

Adaptor Wiring Harness

515178958

$25.35

860

USB Wiring Harness | Includes 860 to 860a

515178758

$88.43

860a

USB Connector

710006405

$33.77

890

Protective Bag | Includes 890 to 890a

515179153

$109.20

890b

Push Nut

732610072

$1.72

1050

Seat Wiring Harness

515178608

$36.12

1060

Switch Rocker

515178503

$19.20

2400

LH Switch Housing

515178851

$268.43

2410

Housing Plate

515177147

$17.66

2420

Torx Screw

250000671

$0.83

2470

Braided Sleeve

415130141

$56.12

3010

Rivet

515177929

$2.12

3210

4 Circuits Female Housing

515178177

$11.89

3211

Coil Connector

515178202

$12.88

3250

Rocket Switch

515178501

$19.20

4820

Elastic Stop Nut M6

232561434

$1.55

5001

Extension

515175851

$10.88
