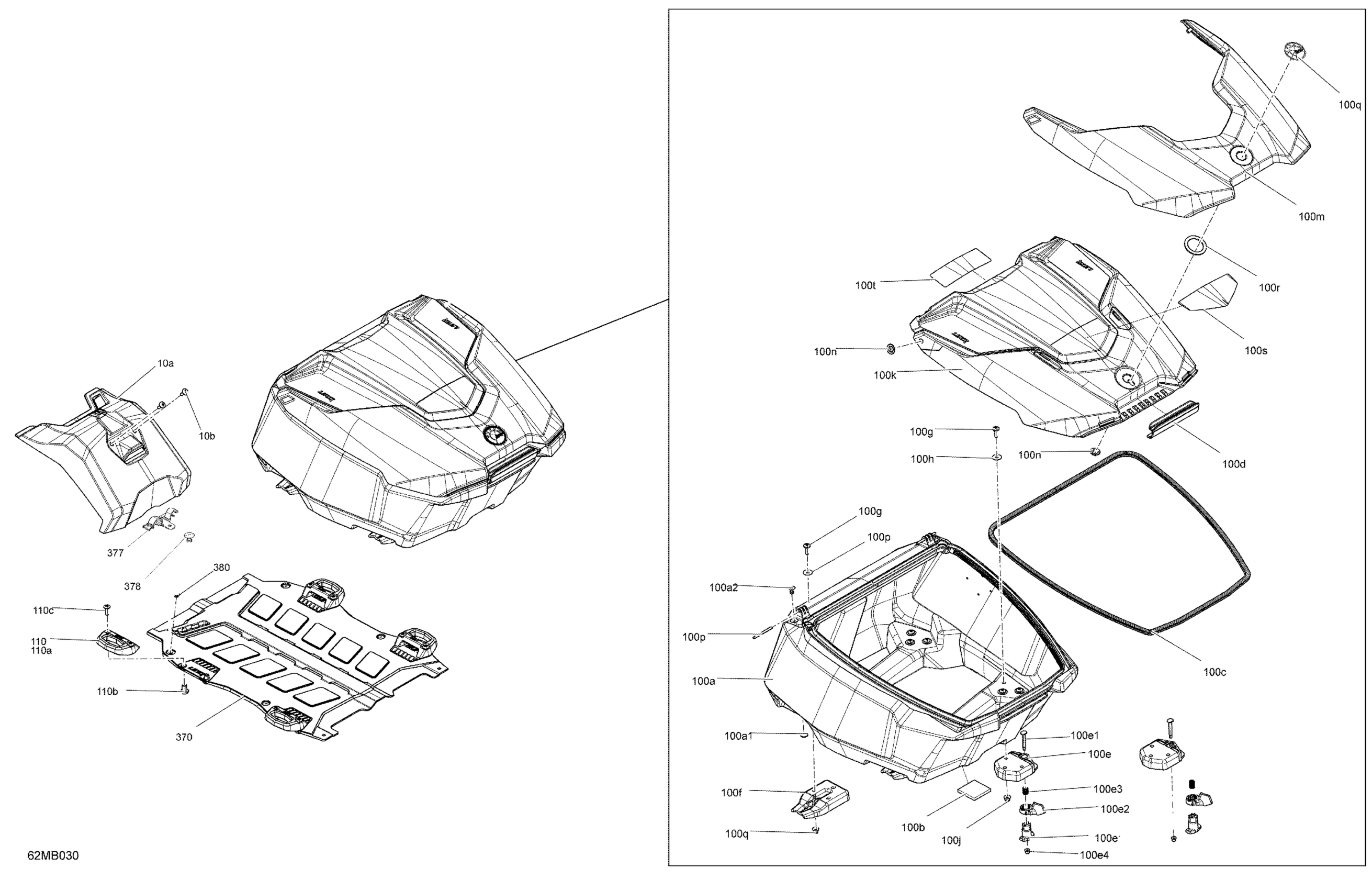

Ski-Doo 003 - GRAND TOURING 900 ACE - LTD - North America, 2022 07- Body - Cargo Diagram

Description

Price

10a

Battery Cover

511001210

$30.99

10b

Torx Screw M6 X 16

250001005

$0.53

100a

Storage Box Ass'y | Includes 100a to 100a3

511001340

$139.99

100a1

Washer

517124300

$0.19

100a2

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

100b

Self Adhesive Protective Foam

511001275

$0.72

100c

Seal, 1PC = 3M

293830188

$39.99

100d

Clip | Outlander Max

269501945

$15.89

100e

RH Low Profile LINK Fasterner | Includes 100g to 100g4

511001827

$42.49

100e1

Rod

511001138

$110.99

100e2

RH Lever

708200374

$4.02

100e3

Spring | Package Hunter

708200263

Unavailable

100e4

Elastic Flange Nut M5

229000078

Unavailable

100f

Linq Toe In

511001164

$23.49

100g

Torx Screw M6 X 20

250000712

$2.11

100h

Flat Washer

250200040

$1.90

100j

Hex. Flange Elastic Nut M6

233261466

$2.00

100k

Storage Lid

511001150

$60.99

100m

Liquid Titan, Storage Trim

511001733

$119.99

100m

Deep Black, Storage Box Trim

511001208

$119.99

100n

Self Threading Nut 8MM

250100213

$3.80

100p

Hinge Pin

511001211

$14.68

100q

BRP Logo Emblem 48 MM UV

704909040

$16.49

100r

Self Adhesive Weather Strip

511001392

$0.70

100s

Warning Label

516009527

Unavailable

100t

Warning Label

516009528

Unavailable

110

Luggage Rack Base With Hardware | Includes 5200 to 5200c

860201806

$42.49

110a

Luggage Rack Base With Hardware | Includes 5200 to 5200c

860201806

$42.49

110b

Threaded Insert

511000822

$2.09

110c

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

370

Radiator Trim 137

860201830

$54.49

377

Cap

520001722

$11.49

378

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

380

Pop Rivet 3/16" | DS 650 X

293150104

$1.09
