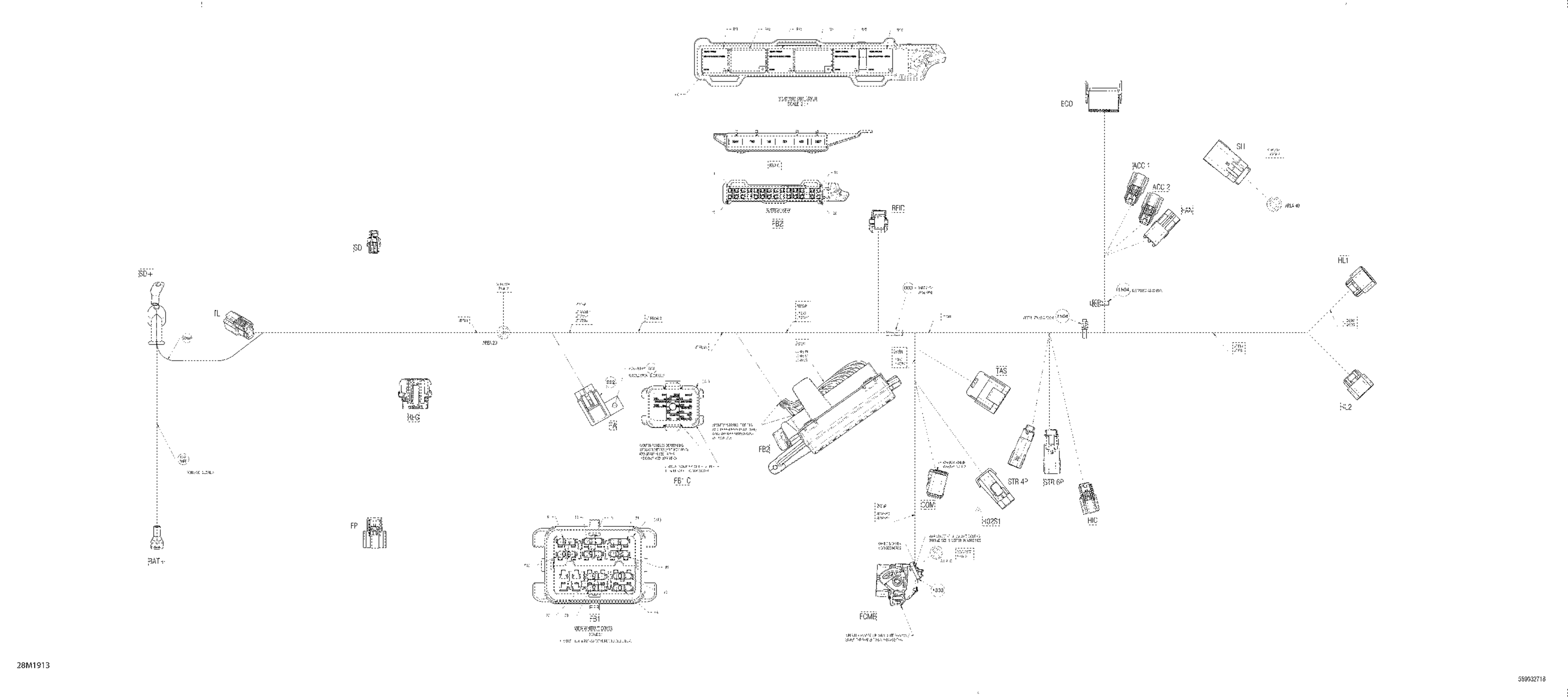

Ski-Doo GRAND TOURING 900 ACE, 2019 Main Harness 515178558 Diagram

#

Description
Price

3000

Chassis Wiring Harness | Package LTD

515178558

$283.55

ACC1

2 Circuits Female Housing

278002853

$16.39

ACC2

2 Circuits Female Housing

278002853

$16.39

ACS

Female Housing, 3 Circuits

409209600

$34.30

ACS

Wire Seal

278001013

$3.12

ACS

Female Terminal

278001014

$3.12

COM

Female Housing 6 Circuits

710002706

$18.63

COM

Lock

710002705

$4.15

COM

Female Terminal

710005438

$3.88

COM

Female Terminal

710005439

$4.15

ECMB

Cover, 48 positions

710001591

$11.54

ECMB

Molex Housing, 48 Circuits

710001967

$132.06

ECMB

Plug

710001592

$2.06

ECMB

Female Terminal

710001589

$2.06

ECMB

Female Terminal

710001727

$2.93

ECO

4 Circuits Female Housing

515178175

$10.81

ECO

Female Terminal

515178302

$4.96

F1

Little Fuse, 5 Amperes

710000742

$8.31

F10

Little Fuse, 30 Amperes

710000747

$7.78

F2

Little Fuse, 20 Amperes

710000746

$7.78

F3

Little Fuse, 10 Amperes

710000744

$8.31

F4

Little Fuse, 10 Amperes

710000744

$8.31

F5

Little Fuse, 10 Amperes

710000744

$8.31

F6

Little Fuse, 15 Ampere

710000745

$7.78

F7

Little Fuse, 7.5 Amperes

710000743

$7.78

F8

Little Fuse, 15 Ampere

710000745

$7.78

F9

Little Fuse, 15 Ampere

710000745

$7.78

FA

Fuse

710001613

$8.31

FA

Fuse Holder

278001325

$8.31

FA

Female Terminal

710000357

$5.85

FAN

Female Housing, 2 Circuits

278000217

$8.72

FAN

Wire Seal

278000218

$4.00

FAN

Male Terminal

409004300

$5.30

FB1

Case Ass'y with seal, 24 positions

278002824

$33.55

FB1

Seal Plug

278002880

$6.24

FB1

Wire Seal

278000218

$4.00

FB1

Wire Seal

278001065

$5.85

FB1

Female Terminal

710000890

$4.28

FB1

Female Terminal

710000918

$5.85

FB1C

Fuse Box Cover

515178559

$10.55

FB1C

Little Fuse, 10 Amperes

710000744

$8.31

FB1C

Little Fuse, 15 Ampere

710000745

$7.78

FB1C

Little Fuse, 20 Amperes

710000746

$7.78

FB2

Housing

515178311

$34.30

FB2

Female Terminal

710006126

$4.01

FB2

Female Terminal

710000274

$8.72

FB2C

Cover

515178310

$12.60

FP

Female Housing

515178474

$32.06

FPS1

Female Terminal

710004858

$3.73

FPS2

Female Terminal

710004858

$3.73

GND

Open Barrel Terminal

278001392

$4.00

HIC

Female Housing, 4 circuits

278003535

$24.60

HL1

Female Housing

515178006

$13.27

HL1

Seal Wire

710001332

$3.12

HL1

Terminal

710001228

$3.12

HL2

Female Housing

515178006

$13.27

HL2

Seal Wire

710001332

$3.12

HL2

Terminal

710001228

$3.12

HO2S1

Clip

710000992

$3.88

HO2S1

Housing

710002466

$2.90

HO2S1

Lock

710002469

$1.93

HO2S1

Seal

278001482

$2.93

HO2S1

Gold Terminal

710002597

$2.90

HO2S1

Terminal

710000736

$5.19

MG

Female Housing, 24 Circuits

515175801

$8.73

MG

Retainer Block

515175802

$10.34

MG

Plug

515175812

$1.96

MG

Female Housing

710000399

$13.60

MG

Wire Seal

515175803

$2.76

MG

Female Terminal

515175806

$0.93

MG

Female Terminal

710001131

$6.79

REG

Female Housing, 3 Circuits

710000879

$24.60

REG

Cap

710000882

$10.55

REG

Seal

710000881

$16.39

REG

Female Terminal

710000877

$7.25

RFID

Housing

710001161

$10.51

RFID

Wire Seal

710001163

$5.85

RFID

Female Terminal

710001164

$6.79

RPS1

Female Terminal

710000082

$5.85

RPS2

Female Terminal

710000082

$5.85

RV

Female Terminal Housing

515176550

$6.24

RV

Female Terminal

515175282

$6.24

RY1

Relay

715900824

$18.63

RY2

Relay, 30 AMP

515176774

$18.63

RY3

Relay

715900824

$18.63

RY4

Relay, 30 AMP

515176774

$18.63

RY5

Relay

715900824

$18.63

RY6

Relay

715900824

$18.63

SD

Female Housing, 2 Circuits

515177192

$7.25

SD

Seal Wire

710001332

$3.12

SD

Terminal

710000925

$2.93

SD+

Terminal

515177214

$6.24

SH

12 Circuits Male Housing

515178015

$11.18

SH

Male Terminal

515178013

$2.93

STR 4P

4 Circuits Male Housing

515178176

$11.18

STR 4P

Male Terminal

515178013

$2.93

STR 6P

Male Housing, 6 Circuits

278002906

$12.49

STR 6P

Male Terminal

515178013

$2.93

TAS

Clip

710000992

$3.88

TAS

Housing

710001231

$11.69

TAS

Seal

710001233

$2.93

TAS

Terminal

710001224

$2.93

TL

Female Housing Connector 4 Pins W/O CPA

515178346

$13.18

VSS

Housing

515178024

$34.30
