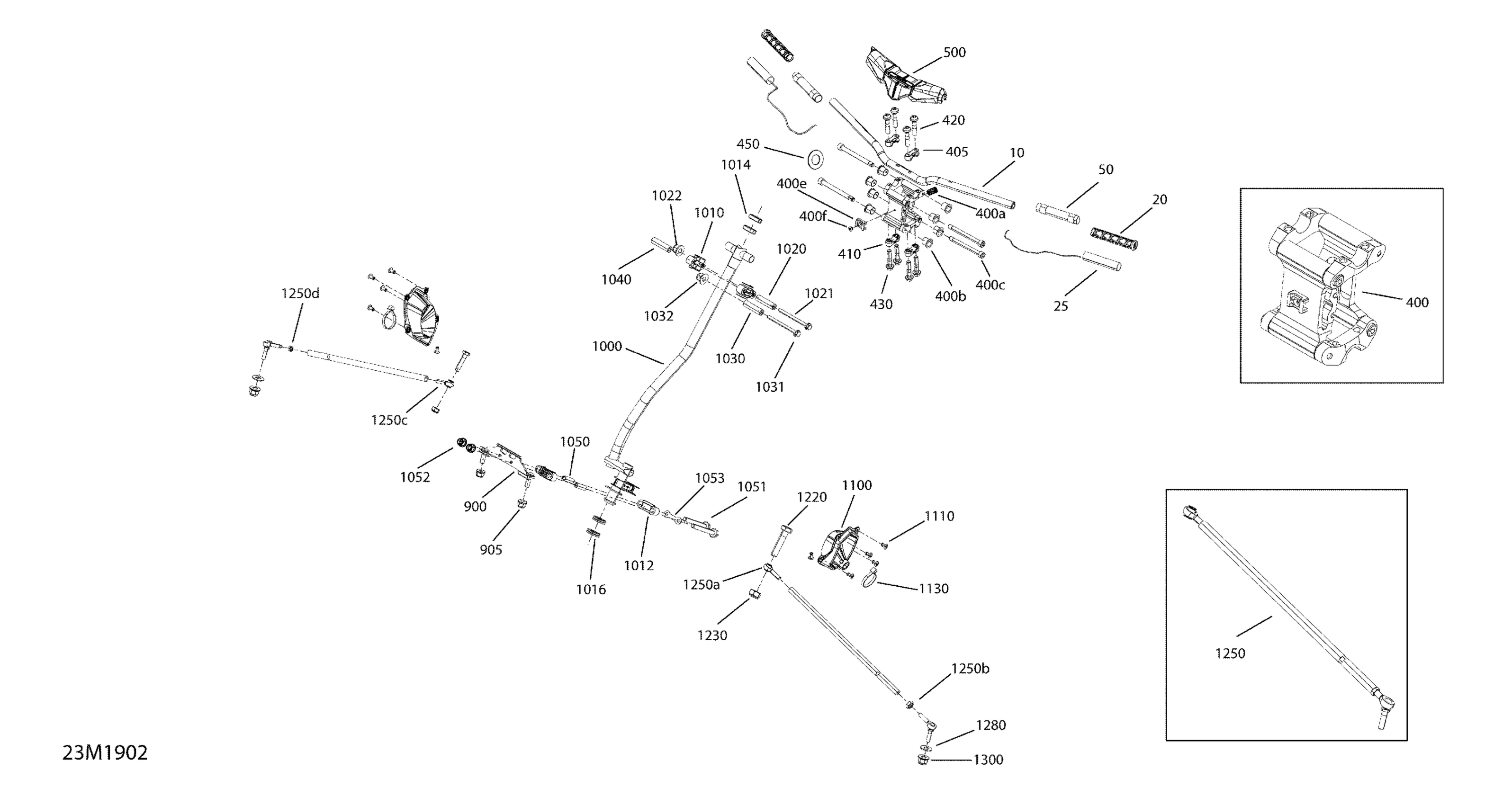

Ski-Doo GRAND TOURING 900 ACE, 2019 Steering Diagram

#

Description
Price

10

Handle Bar

506153038

$95.35

20

Grip

506152501

$10.18

25

Heated Film

506152901

$35.35

30

Heated Film

506152902

$35.35

50

Insulant

506153178

$10.23

400

Riser Kit, Adjustable | Includes 400 to 400q

860201320

$154.99

400a

Spring

506152820

$6.59

400b

Cushion

506152520

$12.37

400c

Socket Head Screw M8 X 85

205588554

$0.83

400e

Tie Rap Mount (screwable)

515176795

$5.11

400f

Pop Rivet 3/16"

390402200

$0.26

405

Steering Support

506152894

$12.48

410

Steering Support

506152894

$12.48

420

Button Head Torx Screw M8 X 38

250000904

$1.74

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$1.74

450

Washer

506152992

$1.06

500

Steering Pad

506152991

$51.51

900

Support Plate | Includes 900 to 900a

506152787

$35.35

905

Hex. Elastic Flange Nut M8

233281416

$1.25

1000

Main Tube

506153014

$196.12

1010

Upper Half Housing

506152219

$1.68

1012

Lower Half Housing

506153048

$5.57

1014

Upper Vibration Ring

506152292

$0.72

1016

Lower Vibration Ring

506152518

$4.52

1020

Housing Bushing

506152297

$10.23

1021

Hex. Flange Screw M6 X 75

207667554

$3.61

1022

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1030

Housing Bushing

506152297

$10.23

1031

Hex. Flange Screw M6 X 75

207667554

$3.61

1032

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1040

Housing Bushing

506152297

$10.23

1050

Housing Bushing

506152937

$10.23

1051

Hex. Flange Screw M8 X 70

207687044

$6.11

1052

Hex. Elastic Flange Nut M8

233281416

$1.25

1053

Stopper Plate

506152938

$10.23

1100

Cap

506153294

$25.35

1110

Pop Rivet 3/16"

293150008

$0.40

1130

Tie-Rap 180 mm

414115200

$0.09

1220

Hex. Screw M8 X 35

207083544

$0.92

1230

Hex. Elastic Stop Nut M8

232581414

$0.47

1250

Rod Ass'y | Includes 1250 to 1250f

506152794

$73.82

1250a

LH Threaded Ball Joint

506152344

$39.97

1250b

LH Threaded Hex. Jam Nut M10

250100016

$0.72

1250c

RH Threaded Ball Joint

506152684

$42.28

1250d

RH Threaded Hex. Jam Nut M10

732610010

$0.72

1280

Washer

506152582

$4.42

1300

Hex. Flange Elastic M10 x 1.5

233201464

$6.18
