Description

Price

10

Chaincase Ass'y | Includes 10 to 10b

504153498

$98.43

20

Kit Plate Ass'y

861805514

$73.05

30

Flange Elastic Nut M6

233261434

$3.61

60

Washer

504082900

$2.58

70

Torx Screw M8 X 20, Scotch Grip

250000740

$2.09

80

Flange Elastic Nut M6

233261434

$3.61

100

Oil Seal

293200168

$13.65

110

Ball Bearing

293350115

$11.15

120

Circlip

504152576

$8.71

140

Sprocket 24 Teeth Ass'y | Includes 140 to 140a

504153727

$50.74

140a

Bearing Needle

293350123

$26.89

200

Connecting Shaft Ass'y

504153500

$126.89

210

External Retaining Ring

293370183

$3.51

220

Spring Release

504153179

$9.83

230

Sliding Gear 27 Teeth Machined

504153502

$101.51

260

Washer

504152689

$6.26

270

Circlip

293370055

$7.31

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

500

Axle Reverse Ass'y | Includes 500 to 500b

504153519

$35.35

500a

Rolled Pin M3 X 10

250400010

$1.85

510

Ring

504078700

$17.66

520

Sprocket 19 Teeth Ass'y

504154086

$87.66

530

Alignement Rod

570048600

$13.77

550

Gear Straight 29 Teeth Ass'y

504154087

$103.82

560

Spacer

504077300

$6.26

1100

Oil Seal

293200159

$13.12

1110

Ball Bearing

293350059

$30.74

1120

Circlip

504152582

$8.71

1130

Kit Sprocket This part replaces 504152581.

861805539

$149.97

1140

Circlip

504152572

$6.26

1150

O-Ring

293300201

$0.98

1160

Magnetic Cap Ass'y | Includes 1160 to 1160a

504153696

$26.12

1160a

Magnetic Cap

504153697

$2.09

1500

Drive Chain, 110 Links

504153266

$179.20

1510

Hair Pin

414575600

$1.51

1520

Adjustment Screw

504153760

$23.82

1540

Hex. Countersunk Drain Plug

250500013

$6.78

1545

Magnetic Plug

504153704

$4.88

1550

O-Ring

293300202

$0.98

1600

Tensioner

504153559

$16.12

1610

Slider Chain

504153312

$67.66

1640

Copper Washer

250200185

$1.26

1650

Circlip

293370105

$2.06

1670

Torx Head Screw M6 X 16

250000717

$1.74

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

1700

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153503

$179.97

1700b

Clip Connector

515178223

$1.63

1700c

Braided Sleeve

415130141

$56.12

1710

O Ring

293300214

$11.52

1720

Torx T-30 Pan HD Taptite M6X20

250001012

$0.46

1740a

Cap

504152930

$6.26

1740b

Straight Fitting

293710035

$8.63

1740c

Polyurethane Hose 10000Mm Long

219704410

$46.12

1740d

Protector Tube

504153074

$12.58

1750

Tie Wrap 142 mm

293750002

$0.88

1770

Hex. Countersunk Drain Plug

250500013

$6.78

1800

Fork Ass'y

504154097

$31.51

1810

O-Ring

293300202

$0.98

1820

Axle Reverse

504153508

$18.43

1830

Spring Pin M5 X 16

250400045

$3.73

1860

Machined Lever

504153532

$28.43

1880

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$3.61

1890

Rod Actuating Adjustable Ass'y

504153657

$38.43

1900

Rod Actuating Ass'y

504153707

$12.32

1900

Rod Actuating Ass'y

504153944

$12.32

1910

Hex. Flange Screw M6 X 25

207562544

$1.39

1920

Socket Head Screw M6 X 20, Scotch Grip

205562044

$1.74

1930

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1930

Hex. Flange Screw M6 X 25

207562544

$1.39

1940

Reverse Lever

504153524

$28.43

1960

Socket Head Screw M6 X 40, S.GRIP

205564044

$2.06

1970

Hex. Flange Screw M6 X 25

207562544

$1.39

1980

Washer

504082900

$2.58

1990

Hex. Screw M8 X 90

207089044

$2.82

2030

O-Ring

293300201

$0.98

2040

Magnetic Cap

504153697

$2.09

2050

Circlip

504152572

$6.26

2070

Hex. Flange Screw M6 X 25

207562544

$1.39

2090

Handle Support

504153683

$19.97

2110

Spacer

504153648

$3.37

2120

Bushing

504153735

$0.52

2130

Hex. Flange Screw M6 X 25

207562544

$1.39

2180

Bushing

504153735

$0.52

2190

Spacer

504153648

$3.37

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$18.43

2510

Hex. Flange Elastic Nut M8

233281414

$1.14

3000

Axle Drive Ass'y | Includes 3000 to 3000b

504153838

$415.35

3000

Drive Axle Ass'y | Includes 3000 to 3000b

504153949

$396.89

3000a

Retaining Ring

504153886

$18.43

3000b

Ball Bearing

293350059

$30.74

3200

Track 15 X 137 X 1,25 | Includes 3200 to 3200b

504154383

$1,149.99

3200

Track 15 X 137 X 1,25 | Includes 3200 to 3200b

504154383

$1,149.99

3200a

Track Guide | Track Width 16''

415129528

$3.12

3200b

Cleat

504152651

$8.22

3200b

Cleat

504152651

$8.22

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

4020

Washer

504082900

$2.58

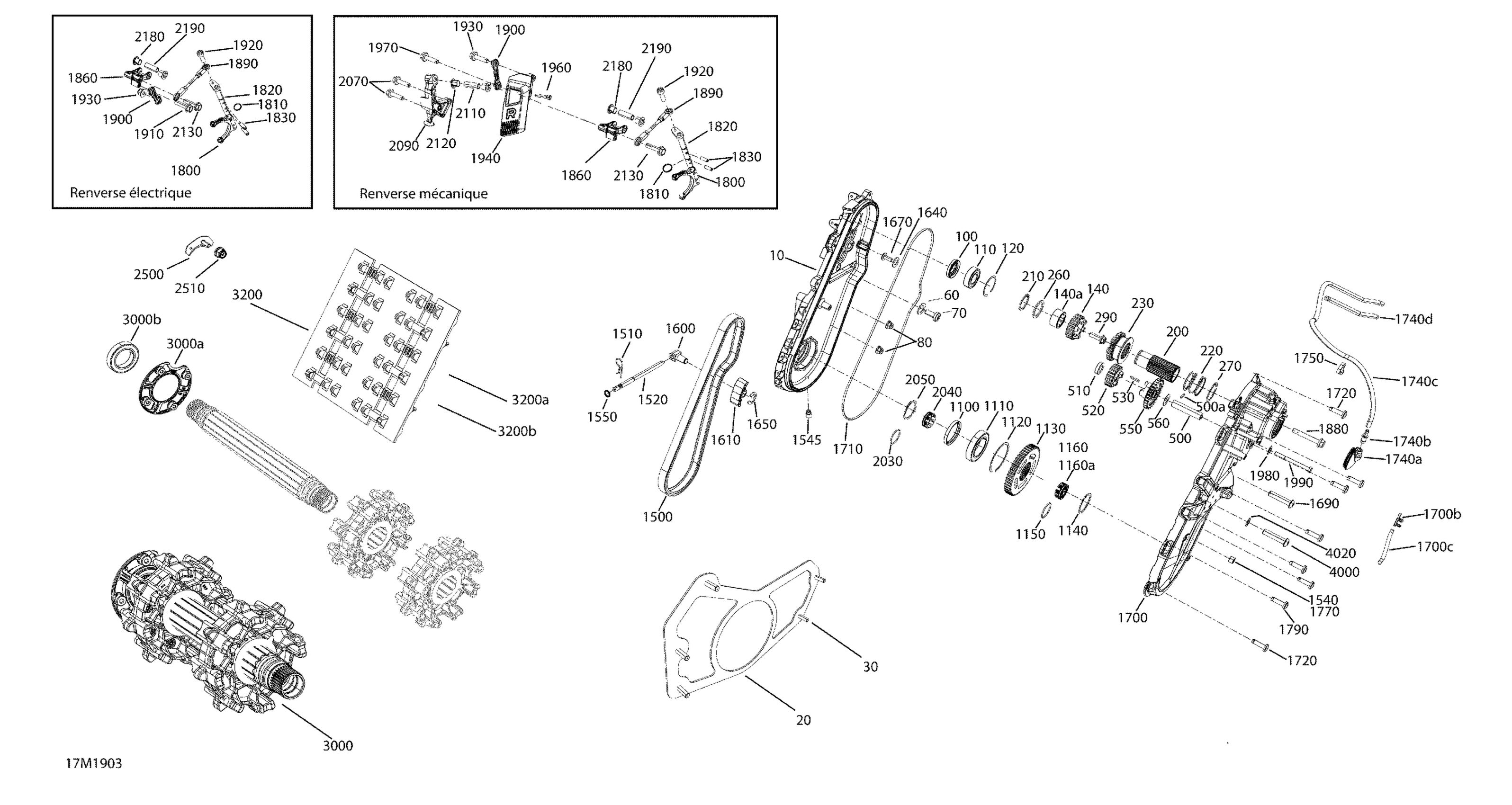

Ski-Doo GRAND TOURING 900 ACE, 2019 Drive Diagram

Chaincase Ass'y | Includes 10 to 10b

Kit Plate Ass'y

Flange Elastic Nut M6

Washer

Torx Screw M8 X 20, Scotch Grip

Flange Elastic Nut M6

Oil Seal

Ball Bearing

Circlip

Sprocket 24 Teeth Ass'y | Includes 140 to 140a

Bearing Needle

Connecting Shaft Ass'y

External Retaining Ring

Spring Release

Sliding Gear 27 Teeth Machined

Washer

Circlip

Hex. Flange Screw M10 X 30, Scotch Grip

Axle Reverse Ass'y | Includes 500 to 500b

Rolled Pin M3 X 10

Ring

Sprocket 19 Teeth Ass'y

Alignement Rod

Gear Straight 29 Teeth Ass'y

Spacer

Oil Seal

Ball Bearing

Circlip

Kit Sprocket This part replaces 504152581.

Circlip

O-Ring

Magnetic Cap Ass'y | Includes 1160 to 1160a

Magnetic Cap

Drive Chain, 110 Links

Hair Pin

Adjustment Screw

Hex. Countersunk Drain Plug

Magnetic Plug

O-Ring

Tensioner

Slider Chain

Copper Washer

Circlip

Torx Head Screw M6 X 16

Hex. Button Head Screw M8 X 1.25 X 35

Chaincase Cover Ass'y | Includes 1700 to 1700c

Clip Connector

Braided Sleeve

O Ring

Torx T-30 Pan HD Taptite M6X20

Cap

Straight Fitting

Polyurethane Hose 10000Mm Long

Protector Tube

Tie Wrap 142 mm

Hex. Countersunk Drain Plug

Fork Ass'y

O-Ring

Axle Reverse

Spring Pin M5 X 16

Machined Lever

Hex. Flange Screw M6 X 40, Scotch Grip

Rod Actuating Adjustable Ass'y

Rod Actuating Ass'y

Rod Actuating Ass'y

Hex. Flange Screw M6 X 25

Socket Head Screw M6 X 20, Scotch Grip

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 25

Reverse Lever

Socket Head Screw M6 X 40, S.GRIP

Hex. Flange Screw M6 X 25

Washer

Hex. Screw M8 X 90

O-Ring

Magnetic Cap

Circlip

Hex. Flange Screw M6 X 25

Handle Support
