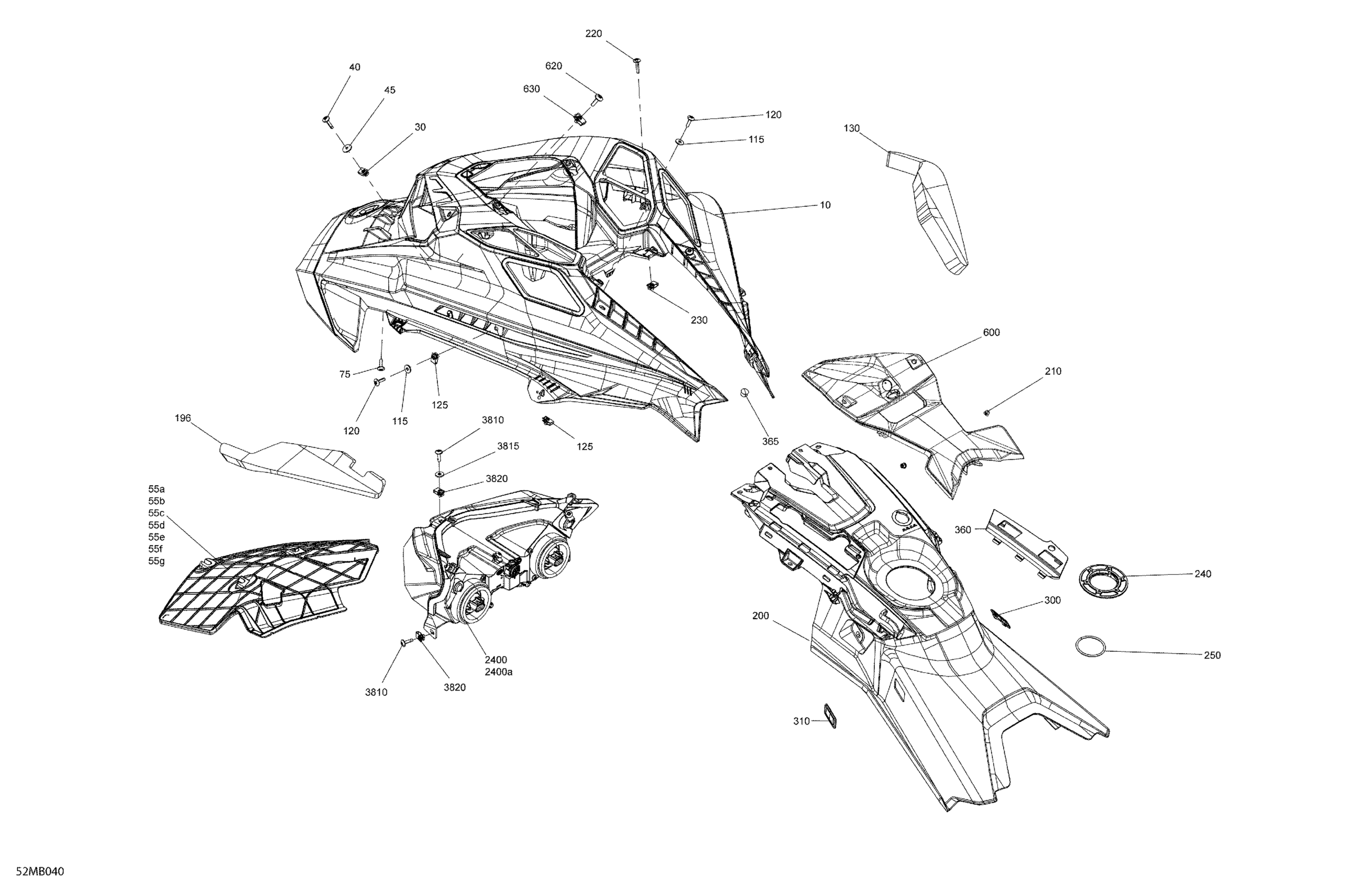

Ski-Doo 003 - FREERIDE 154 850 E-TEC TURBO - North America, 2022 07- Body - Hood Diagram

Description

Price

Hood

517307790

$194.99

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M5 X 26

250000587

$4.44

Washer

250200166

$2.11

55a

Support CTRL

517307545

$19.99

55b

Heat Shield

517308255

$2.09

55c

Heat Shield

517308256

$8.09

55d

Hood Acoustic Insulation

517307550

$38.99

55e

Washer | Not Shown

503193995

$4.54

55f

Screw M4 X 16

250000725

$3.49

55g

Neoprene Seal (1PAC=3M)

219704364

$27.49

Screw M4 X 16

250000725

$3.49

115

Washer

517307442

$1.48

120

Torx Screw M5 X 20

250000528

$2.11

125

Panel Nut M5 X 0.8

250000958

$4.23

130

Self-Adhesive Spacer

705015250

$3.99

196

LH Hood Foam

517306002

$13.49

200

Rear Console

517307685

$189.99

210

Flange Elastic Nut M5

233251434

$2.00

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Console Nut

517306602

$13.49

250

O-Ring

706002839

$1.01

270

RH Hood Spacer | Not shown

517308189

$12.49

275

LH Hood Spacer | Not shown

517308190

$12.49

300

RH Cap

517306587

$1.39

310

LH Cap

517306588

$1.39

360

LH Front Console

517306583

$31.99

365

Cap

572051500

$5.89

600

Indicator Support

517307436

$19.49

620

Torx Truss M5 X 20

250000586

$4.44

630

Panel Nut M5 X 0.8

250000958

$4.23

2400

Headlamp | Includes 2400 to 2400a

517305752

$449.99

2400a

Bulb

415130081

$41.49

3810

Torx Screw M5 X 20

250000528

$2.11

3815

Washer

517307442

$1.48

3820

Panel Nut M5 X 0.8

250000958

$4.23
