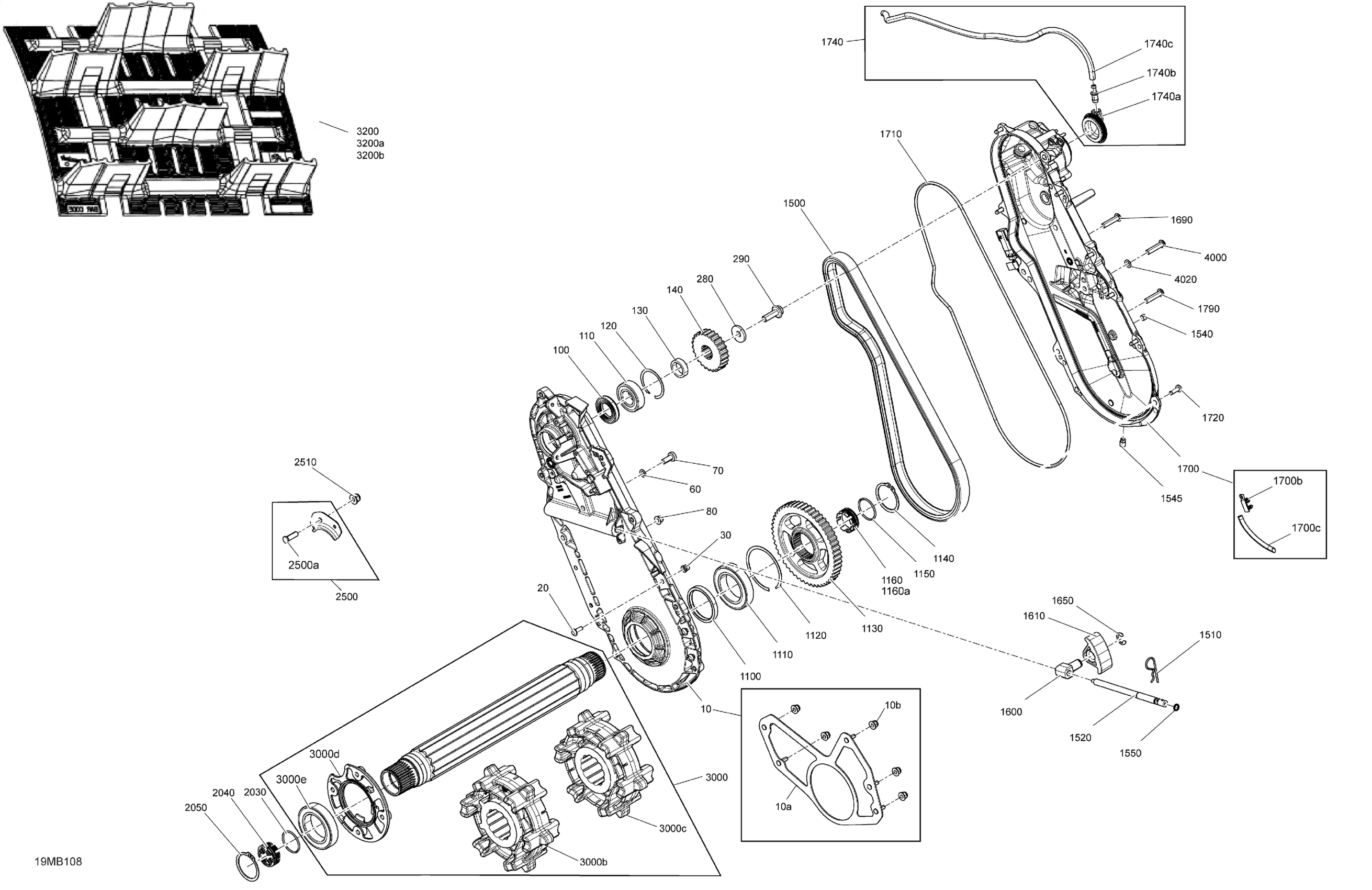

Ski-Doo 003 - FREERIDE 154 850 E-TEC TURBO - North America, 2022 04- Drive - System Diagram

#

Description
Price

10

Black, Chain Case Ass'y

504154102

$349.99

10a

Plate Ass'y

504153560

$79.99

10b

Flange Elastic Nut M6

233261434

$4.44

20

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

30

Collar Huck Magna-Grip 6.4

293150149

$0.48

60

Washer

504082900

$2.64

70

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

80

Flange Elastic Nut M6

233261434

$4.44

100

Oil Seal

293200168

$14.49

110

Ball Bearing

293350115

$12.11

120

Circlip

504152576

$9.99

130

Shim

504152628

$10.99

140

Sprocket 21 Teeth

504154188

$44.99

140

Chain And Sprocket Kit 21-51

861805572

Unavailable

280

Spring Washer M10

504152784

$7.65

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

1100

Oil Seal

293200159

$16.25

1110

Ball Bearing

293350059

$30.99

1120

Circlip

504152582

$9.99

1130

Sprocket 51 Teeth

504154824

$51.99

1130

Chain And Sprocket Kit 21-51

861805572

Unavailable

1140

Circlip

504152572

$6.95

1150

O-Ring

293300201

$1.01

1160

Magnetic Cap | Includes 150c to 150c2

504154019

$26.49

1160a

Cap

504154043

$2.11

1500

Drive Chain, 116 Links

504153759

$214.99

1500

Chain And Sprocket Kit 21-51

861805572

Unavailable

1510

Hair Pin

414575600

$1.89

1520

Adjustment Screw

504153760

$24.99

1540

Hex. Countersunk Drain Plug

250500013

$7.89

1545

Hex. Countersunk Drain Plug

250500013

$7.89

1550

O-Ring

293300202

$1.01

1600

Tensioner

504153559

$18.99

1610

Slider Chain

504153312

$65.99

1650

Circlip

293370105

$2.11

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

1700

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

504154079

$189.99

1700b

Clip Connector

515178223

$2.09

1700c

Braided Sleeve

415130141

$55.99

1710

O-Ring

293300200

$13.16

1720

Hex. Flange Screw M6X20

250001153

$2.11

1740

Cap Ass'y | Includes 1740 to 1740c

504153535

Unavailable

1740a

Cap

504152860

$20.49

1740b

Male Connector

414580700

$4.12

1740c

Polyurethane Hose 10000Mm Long

219704410

$56.99

1790

Hex. Flange Screw M6 X 35

250001015

$1.46

2030

O-Ring

293300201

$1.01

2040

Cap

504154043

$2.11

2050

Circlip

504152572

$6.95

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$19.49

2500a

Clinch Stud, M8 X 25

250300028

$4.44

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

3000

Drive Axle Ass'y | Includes 3000 to 3000f

504154430

$412.99

3000b

Not Available As Spare Parts

XXX

Unavailable

3000c

Not Available As Spare Parts

XXX

Unavailable

3000d

Retaining Ring

504153886

$21.99

3000e

Ball Bearing

293350059

$30.99

3200

Track Ass'y 16" X 154" X 3" | Track Profil 3''

504153785

$1.00

3200

Track 16 X 154 X 2,5 | Includes 3200 to 3200b

504154405

$1.00

3200a

Track Guide

415130083

$3.29

3200b

Cleat

415130084

$8.59

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

4020

Washer

504082900

$2.64
