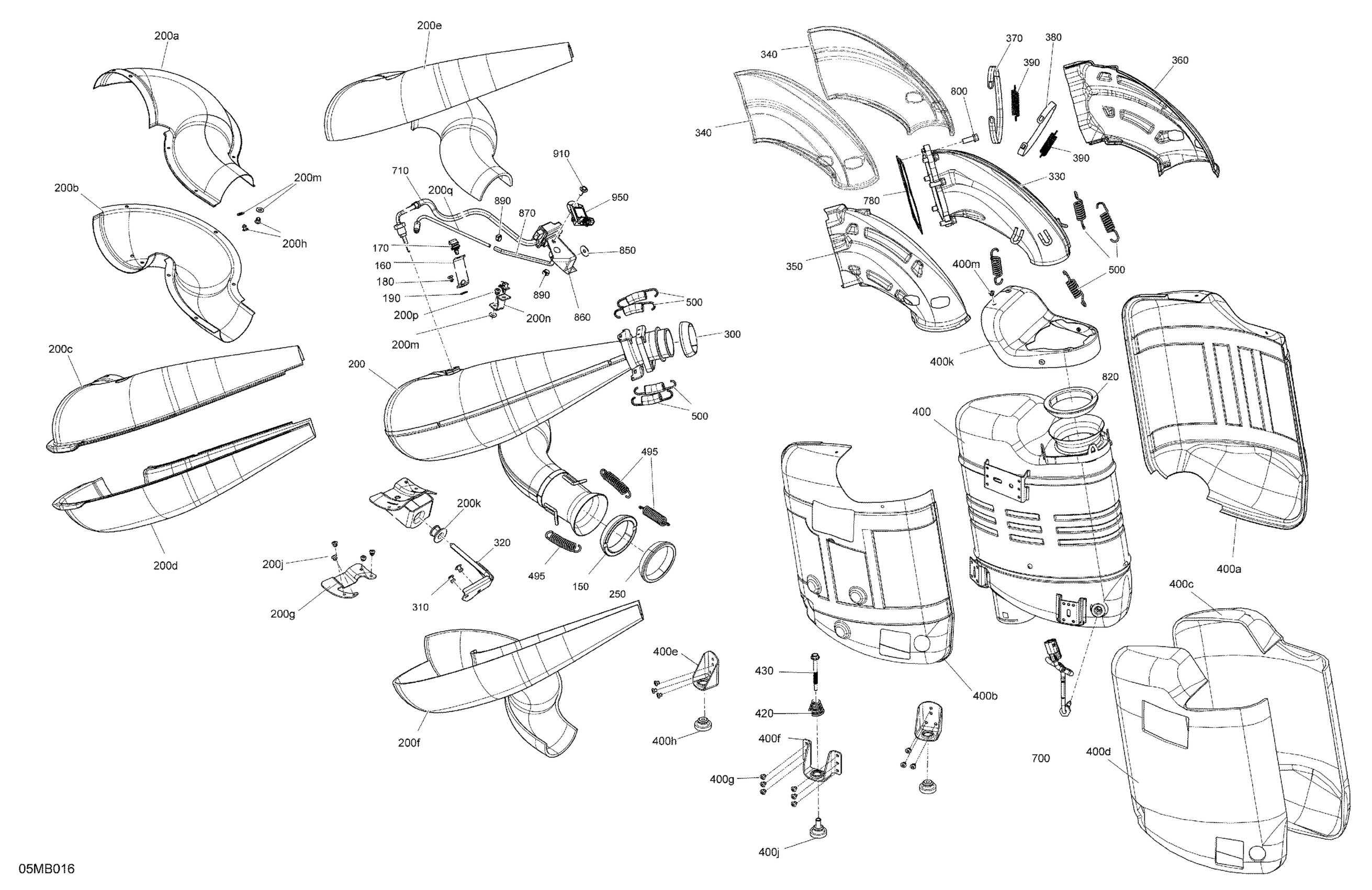

Ski-Doo FREERIDE 154 850 E-TEC TURBO - 2022 Engine - Exhaust Diagram

#

Description
Price

150

Exhaust Gasket

514053487

$25.34

160

Support

514055512

$3.03

170

Tie Rap Mount (screwable)

515176795

$4.96

180

Avex Rivet

390909100

$0.28

190

Washer 3/16

514055537

$0.96

200

Tuned Pipe Ass'y | Includes 200 to 200s

514056406

$689.52

200a

Shell

514056283

$36.54

200b

Shell

514056282

$34.30

200c

Rear Upper Aluminum Shell

514055617

$75.34

200d

Rear Lower Aluminum Shell

514056141

$75.34

200e

Insulated Wool

514055715

$18.63

200f

Glass Wool

514056352

$6.75

200g

Plate

514055844

$5.13

200h

Avex Rivet

390909200

$0.28

200j

Avex Rivet

390909200

$0.28

200k

Rubber

514055632

$2.00

200m

Washer 3/16

514055537

$0.96

200n

Support

514055846

$9.00

200p

Avex Rivet

390909100

$0.28

200q

Tube

514055725

$15.64

250

Seal

514055965

$17.88

300

Exhaust Gasket

514054174

$26.84

310

Hemlock Rivet, 6.5 mm

293150119

$3.88

320

Support

514055214

$9.27

330

Manifold

514056157

$128.33

340

Glass Wool

514056380

$4.15

350

Rear Sheild

514056161

$35.79

360

Front Shield

514055747

$35.79

370

Retaining Strap

514056144

$8.04

380

Retaining Strap

514056145

$8.04

390

Spring

514053643

$6.01

400

Muffler Ass'y | Includes 400 to 400m

514056205

$698.48

400a

RH Deflector

514056114

$52.96

400b

LH Deflector

514056212

$52.21

400c

Glass Wool

514056356

$17.88

400d

Wool

514056049

$6.97

400e

Support

514056054

$5.07

400f

Support

514056055

$5.07

400g

Pop Rivet 3/16"

390402200

$0.30

400h

Stopper

514055203

$18.63

400j

Stopper Ass'y

514056138

$12.21

400k

Cap

514056151

$52.96

400m

Pop Rivet 3/16"

390402400

$0.28

420

Spring

514055282

$6.01

430

Hex. Flange Screw M6

250000926

$0.96

495

Spring

514056058

$6.01

500

Spring

514055198

$6.01

700

Exhaust Temperature Sensor

514055888

$137.28

710

Module

515178170

$169.37

780

Exhaust Gasket

514056159

$14.10

800

Hex. Flange Screw M8 X 20

250001130

$12.73

820

Exhaust Gasket

514055731

$23.10

850

Flat Washer

224060201

$1.12

860

Sensor Support

514055723

$10.06

870

Hose

514056300

$82.81

890

Crimp Clamp

293650249

$3.15

910

Screw M4 X 16

250000725

$3.30

950

Pressure Sensor

514055908

$183.55
