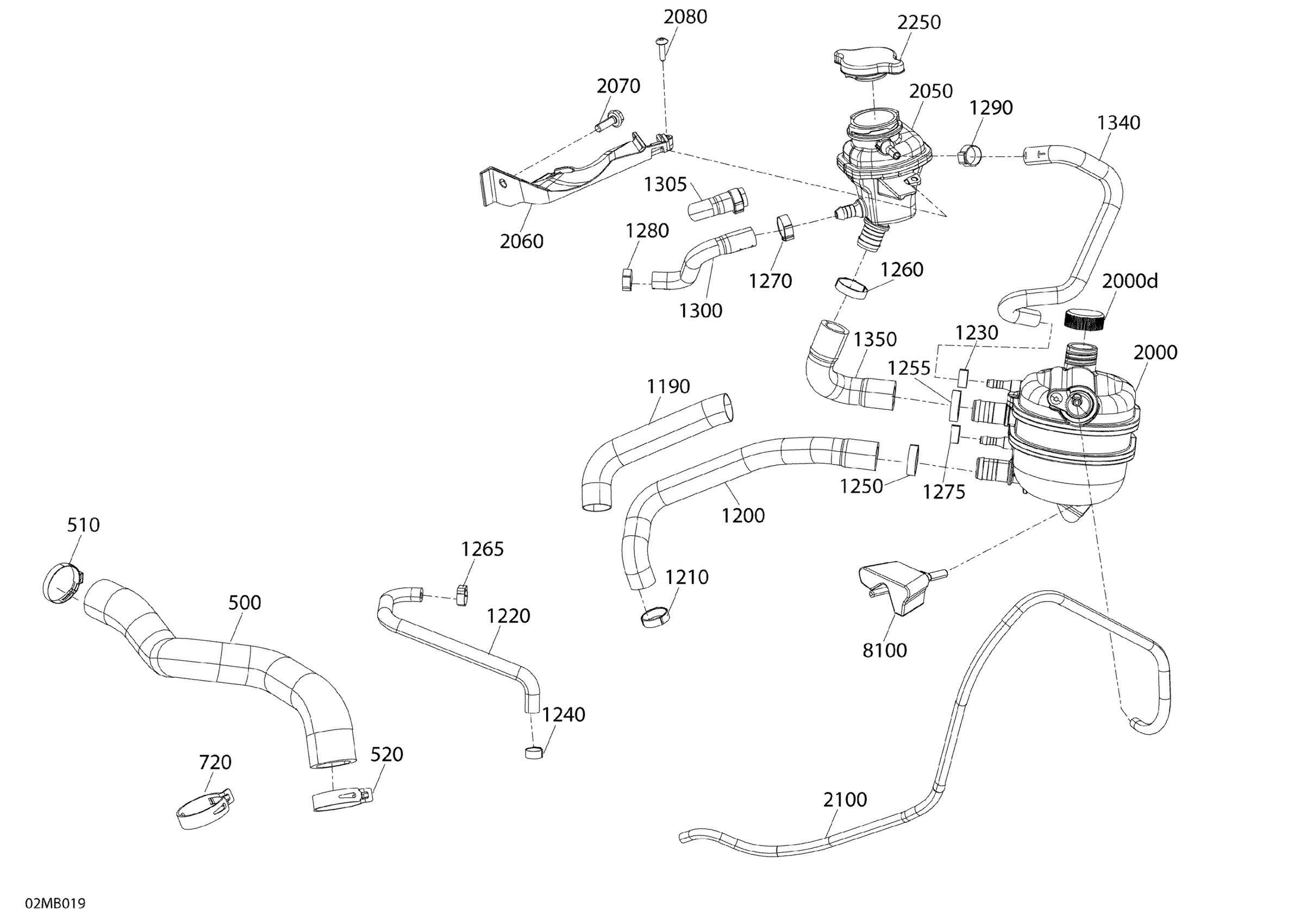

Ski-Doo FREERIDE 154 850 E-TEC TURBO - 2022 Engine - Cooling Diagram

Description

Price

500

Thermostat Hose | Includes 500 to 500a

509001413

$23.85

510

Oetiker Gear Clamp

293650254

$8.89

520

Norma Spring Clamp

293650264

$4.15

720

Norma Spring Clamp

293650264

$4.15

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60

1200

Hose

509001141

$23.10

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

1220

Cooling Hose

509001263

$43.25

1230

Oetiker Clamp

293650046

$2.67

1240

Oetiker Clamp

293650046

$2.67

1250

Oetiker Clamp

509001041

$1.87

1255

Oetiker Clamp

509001041

$1.87

1260

Oetiker Clamp

509001041

$1.87

1265

Oetiker Clamp

293650046

$2.67

1270

Oetiker Clamp | Europe

293650030

$4.96

1275

Oetiker Clamp

293650046

$2.67

1280

Crimp Clamp, 15.3-706R

293650047

$3.03

1290

Oetiker Clamp

293650046

$2.67

1300

Cooling Hose

509001262

$23.85

1305

Braided Sheath 20 MM ID

293100020

$4.63

1340

Hose

509001132

$17.88

1350

Cooling Hose

509001238

$10.21

2000

Coolant Tank Ass'y | Includes 2000 to 2000d

509001292

$84.30

2000b

Check Valve

513033849

$34.30

2000c

Truss Torx Screw K40 X 16

250000918

$2.00

2000d

Tank Cap

509001293

$5.19

2050

Filler Neck

509001131

$14.90

2060

Support

509001137

$5.07

2070

Hex. Flange Screw M6 X 20

207662046

$2.00

2080

Torx-Truss Pt K40 X 16

250000759

$2.00

2100

Hose 6 Mm 15000Mm Long

219704360

$120.12

2110

Anchorage Tie Wrap Christmas Tree

293750099

$1.91

2250

Radiator Pressure Cap

509000180

$13.42

8100

Rubber Support

509001171

$9.85
