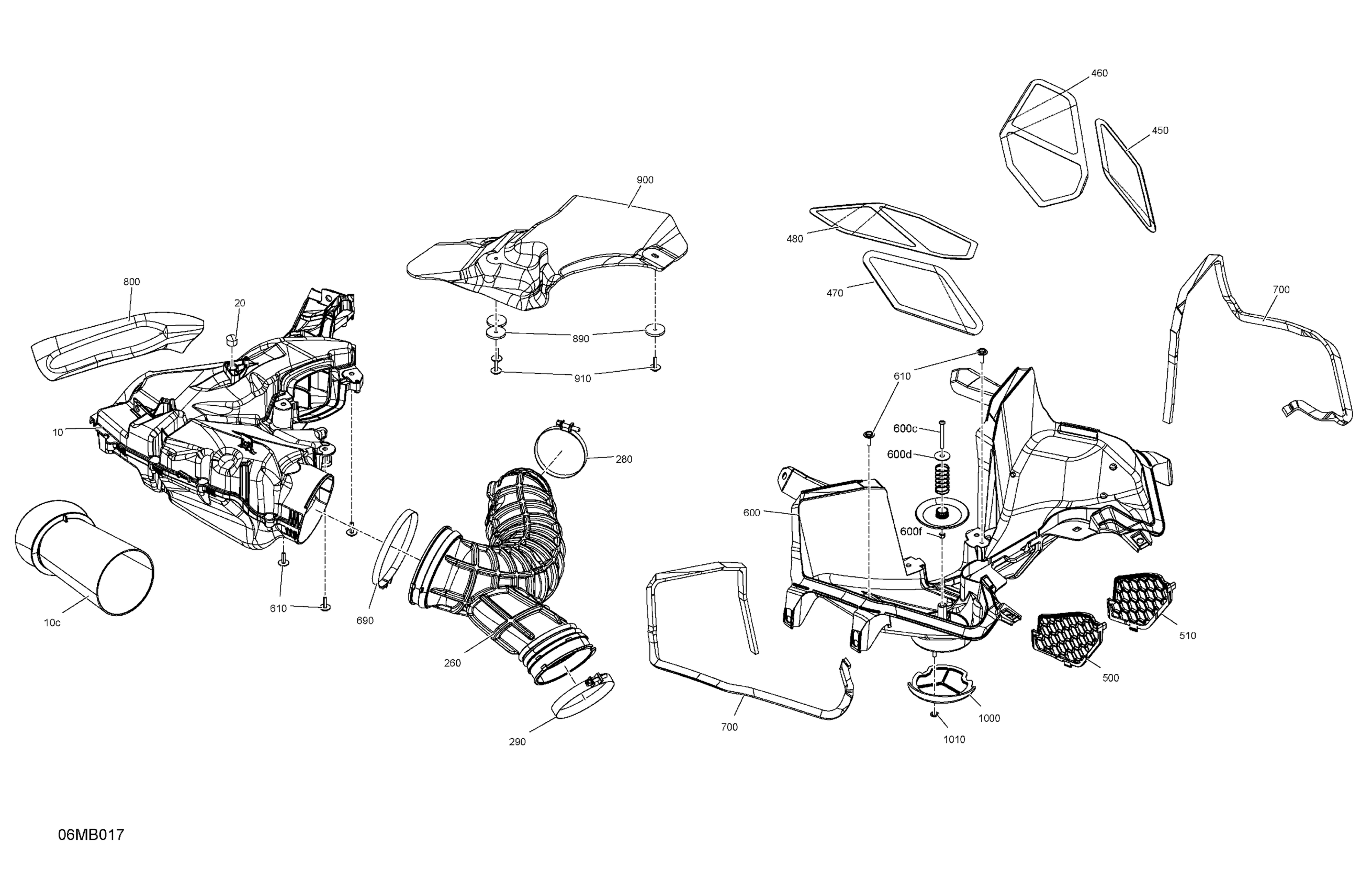

Ski-Doo FREERIDE 154 850 E-TEC TURBO - 2022 Engine - Air Intake Diagram

Description

Price

Secondary Intake Silencer Ass'y

508000948

$164.58

10c

Admission Tube

508000949

$13.94

Cap

572051500

$5.38

260

Intake Manifold Hose

508001146

$36.12

280

Gemi Clamp

508000369

$11.52

290

Gemi Clamp

293650152

$14.57

450

Air Filter

508001035

$36.89

460

Air Filter

508001040

$36.89

470

Air Filter

508001034

$36.89

480

Air Filter

508001038

$36.89

500

LH Protective Grille

508001049

$0.82

510

RH Protective Grille

508001050

$0.82

600

Air Duct Ass'y | Includes 600 to 600f

508000950

$76.89

600c

Socket Head Screw M4 X 40

205444056

$1.74

600d

Flat Washer

224060201

$1.15

600f

Elastic Stop Nut M4

232541414

$0.48

610

Screw M4 X 16

250000725

$2.87

690

Gemi Clamp

293650247

$6.26

700

Seal, 1PC = 3M

293830188

$37.66

800

Heat Shield

508001047

$2.05

890

Adhesive Patch

508001154

$1.82

900

RH Heat Shield

508000956

$49.20

910

Screw M4 X 16

250000725

$2.87

1000

Pop Off Filter

508000815

$6.83

1010

Push Nut

250001189

$1.11
