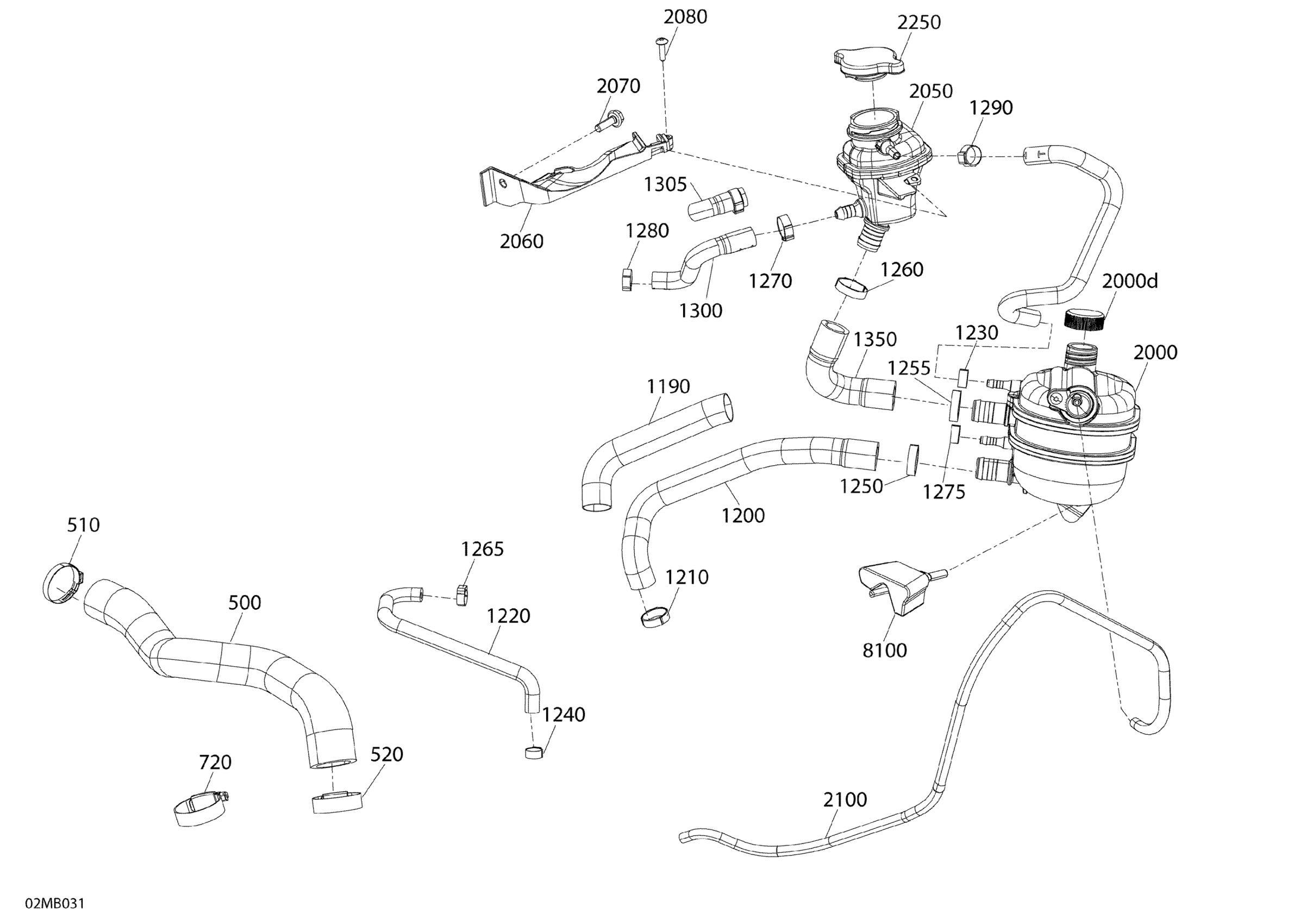

Ski-Doo FREERIDE 154 850 E-TEC TURBO - Europe, 2022 Engine - Cooling Diagram

Description

Price

500

Thermostat Hose | Includes 500 to 500a

509001413

$24.58

510

Oetiker Gear Clamp

293650254

$7.16

520

Aba Gear Clamp, 26-38 MM

509000443

$5.68

720

Aba Gear Clamp, 26-38 MM

509000443

$5.68

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

1200

Hose

509001141

$23.82

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

1220

Cooling Hose

509001263

$44.58

1230

Oetiker Clamp

293650046

$2.33

1240

Oetiker Clamp

293650046

$2.33

1250

Oetiker Clamp

509001041

$2.75

1255

Oetiker Clamp

509001041

$2.75

1260

Oetiker Clamp

509001041

$2.75

1265

Oetiker Clamp

293650046

$2.33

1270

Oetiker Clamp | Europe

293650030

$4.32

1275

Oetiker Clamp

293650046

$2.33

1280

Crimp Clamp, 15.3-706R

293650047

$2.64

1290

Oetiker Clamp

293650046

$2.33

1300

Cooling Hose

509001262

$24.58

1305

Braided Sheath 20 MM ID

293100020

$4.77

1350

Cooling Hose

509001238

$10.52

2000

Coolant Tank Ass'y | Includes 2000 to 2000d

509001292

$86.89

2000b

Check Valve

513033849

$36.89

2000c

Truss Torx Screw K40 X 16

250000918

$2.06

2000d

Tank Cap

509001293

$5.35

2050

Filler Neck

509001131

$15.35

2060

Support

509001137

$5.23

2070

Hex. Flange Screw M6 X 20

207662046

$1.74

2080

Torx-Truss Pt K40 X 16

250000759

$1.74

2100

Hose 6 Mm 15000Mm Long

219704360

$104.62

2110

Anchorage Tie Wrap Christmas Tree

293750099

$1.83

2250

Radiator Pressure Cap

509000180

$11.69

8100

Rubber Support

509001171

$10.15
