Description

Price

10a

Fixed Flange Ass'y

417224332

$209.99

10d

Sheave Drive Pulley Sliding Ass'y | Includes 10ab to 10abg

417224610

$359.99

10g

Bushing

293250389

$21.99

10h

Circlip

293370137

$3.28

10j

Back Torque Roller

417224153

$16.99

10k

Pulley Roller Ext

417224916

$31.99

10m

Pin

417224510

$9.95

10n

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

10p

Spider Drive Pulley | Includes 10a3 to 10a3h

417225067

$209.99

10q

Roller Pulley Ass'y

417224947

$35.99

10r

Axle - 10mm

417224204

$10.49

10s

Thrust Washer

417224868

$2.32

10t

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10u

Clutch Spring

417224168

$28.49

10u

Clutch Spring

417224015

$28.49

10v

Seat Spring

417224003

$10.38

10w

Circlip

293370116

$3.28

10x

Ramp 965

417224141

$31.99

10x

Ramp 990

417224326

$31.99

10y

Molded Cam

417224113

$8.89

10z

RH Lever

417224086

$9.10

10aa

LH Lever

417224114

$5.61

10ab

Pivot 33mm

417224221

$5.79

10ab

Pivot 26mm

417224220

$5.79

10ac

Weight

417224507

$4.44

10ad

Pin Ramp

417224694

$10.49

10ae

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10af

VIbration Damper

417224682

$149.99

10ag

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt M14 X 144

417300522

$32.99

100a

Fixed Flange Ass'y | Includes 100a to 100a6

417127595

$539.99

100b

Pulley Roller

417127016

$24.49

100c

Pivot Stud

417127294

$14.49

100d

Lock Washer 8 mm

250200009

$2.11

100f

Spring Pin

250400070

$2.00

100g

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

100h

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100k

Circlip

293370049

$4.99

100m

Cam Ass'y | Includes 100c to 100c3

417127672

$159.49

100n

Blue Spring

417127118

$44.49

100n

Black, Return Spring

417127039

$46.49

100p

Swivel Abutment

417127116

$9.39

100q

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100t

Calibration Ass'y

415129604

$21.49

100u

Socket Screw M5 X 25

250000981

$1.68

100v

Flat Washer M5

234051410

$0.53

100w

Elastic Stop Nut M5

232551414

$0.87

100x

Washer

417127155

$8.26

100y

Ball Bearing

504152574

$35.99

200

Drive Belt

417300571

$239.99

300

Belt Guard

417300479

$77.99

330

Front Retaining Hook

417300561

$10.49

340

Avex Rivet

390909200

$0.30

360

CVT Duct Cooling

417300553

$28.99

365

Acoustic Panel

417300590

$39.99

370

Pop Rivet 3/16"

293150103

$0.55

380

Black, Dart

414644300

$0.98

500

Rear Guard Support

417300577

$15.49

505

Hex. Flange Elastic Nut M6

233261466

$2.00

510

Torx Screw M6 X 16

250000755

$0.87

520

Hair Pin

114045200

$11.11

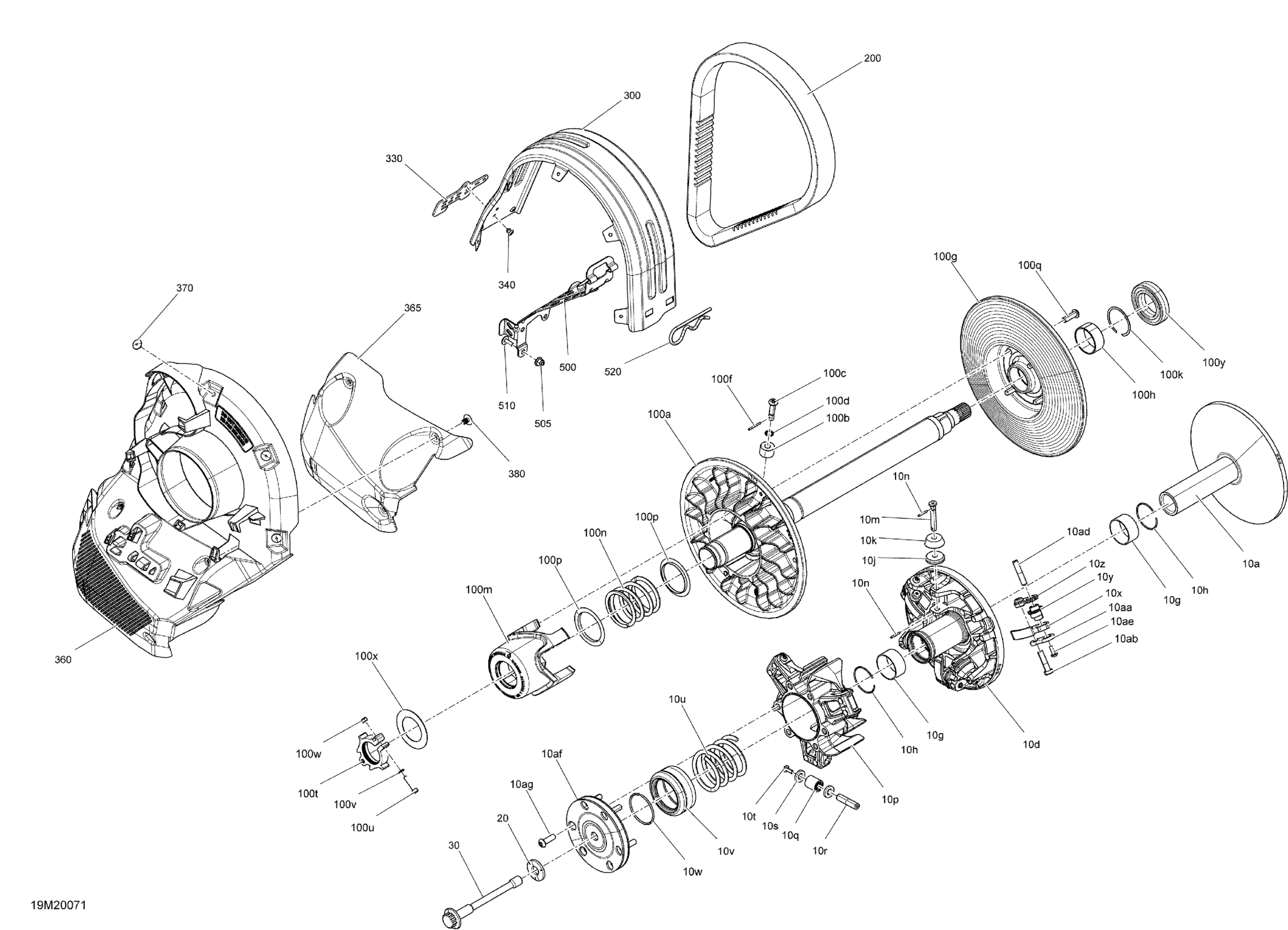

Ski-Doo 003 - FREERIDE 154 850 E-TEC - North America, 2020 05- Pulley - System Diagram

Fixed Flange Ass'y

Sheave Drive Pulley Sliding Ass'y | Includes 10ab to 10abg

Bushing

Circlip

Back Torque Roller

Pulley Roller Ext

Pin

Spring Pin 2.6MM X 20.5MM

Spider Drive Pulley | Includes 10a3 to 10a3h

Roller Pulley Ass'y

Axle - 10mm

Thrust Washer

Torx-Truss M/S M5 X 14 S.Grip

Clutch Spring

Clutch Spring

Seat Spring

Circlip

Ramp 965

Ramp 990

Molded Cam

RH Lever

LH Lever

Pivot 33mm

Pivot 26mm

Weight

Pin Ramp

Torx-Truss M/S M5 X 14 S.Grip

VIbration Damper

Button Head Torx Screw M8 X 25 S.Gr

Conical Spring Washer M14

Pulley Drive Bolt M14 X 144

Fixed Flange Ass'y | Includes 100a to 100a6

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin

Sliding Flange Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Ass'y | Includes 100c to 100c3

Blue Spring

Black, Return Spring

Swivel Abutment

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Drive Belt

Belt Guard

Front Retaining Hook

Avex Rivet

CVT Duct Cooling

Acoustic Panel

Pop Rivet 3/16"

Black, Dart

Rear Guard Support

Hex. Flange Elastic Nut M6

Torx Screw M6 X 16

Hair Pin
