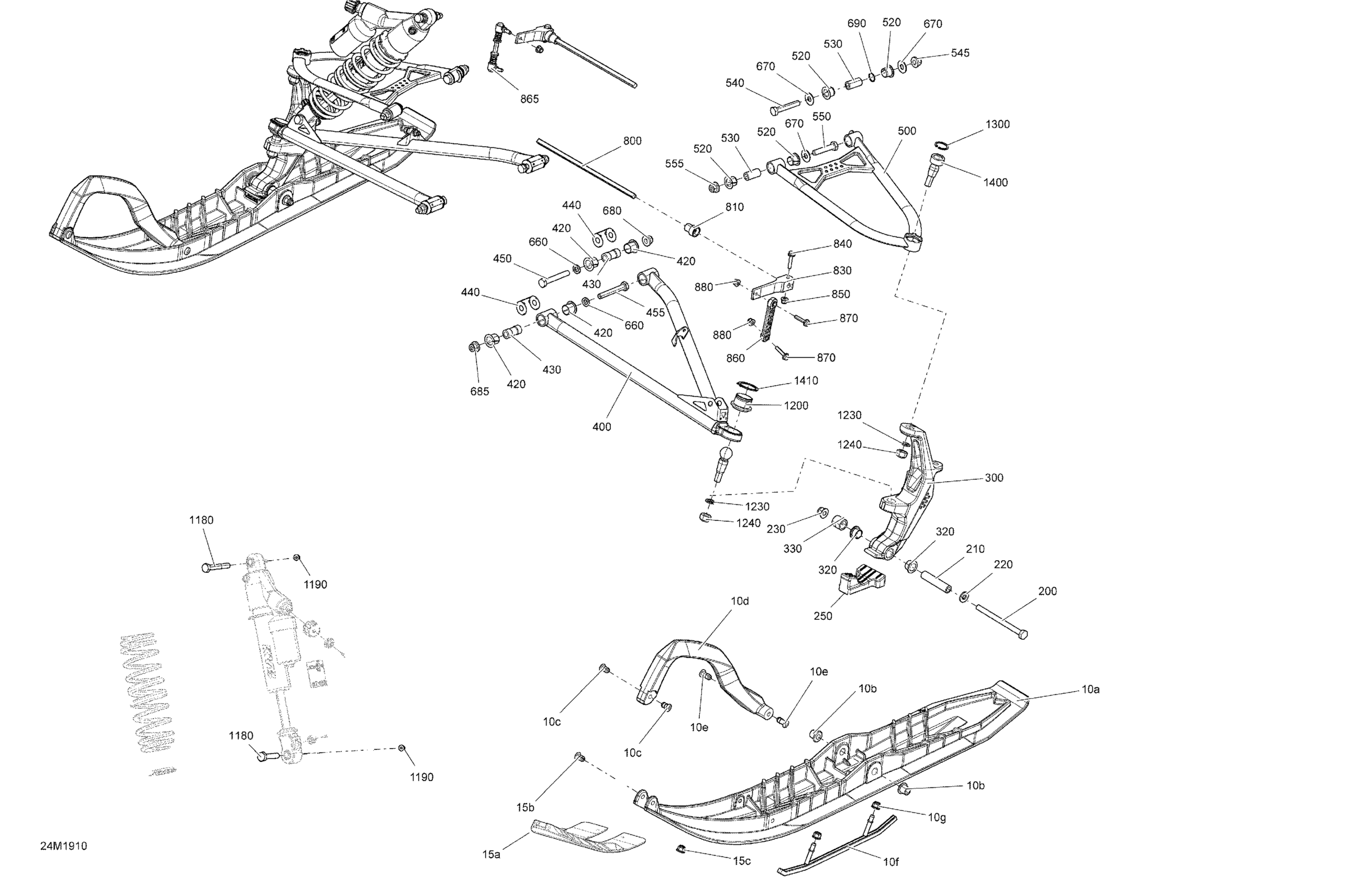

Ski-Doo FREERIDE 154 850 E-TEC, 2019 Front Suspension And Ski - Packages 154 & 165 Diagram

#

Description
Price

10a

Deep Black, Ski Pilot DS 3-E | Includes 10a to 10a1

505074746

$190.99

10b

Ski Bushing

505071781

$16.18

10c

Retainer 17mm long

505071812

$5.95

10d

Red, Handle

505073388

$41.49

10e

Retainer 23mm Long

505072133

$6.78

10f

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

10g

Hex. Flange Elastic Nut M8

233281414

$1.47

15a

Ski Tip

505073784

$51.99

15b

Hex. Socket Screw M6 X 20

250000770

$2.09

15c

Hex. Flange Elastic Nut M6

233261466

$2.00

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

210

Ski Axle

505073691

$14.22

220

Washer

732900049

$0.58

230

Hex. Flange Elastic Nut M10

233201414

$1.58

250

Ski Stopper

505074138

$30.49

300

Can-Am Red, LH Ski Leg | Except Hill Climb Edition & Ski Stance 38''

505074480

$234.99

300

Can-Am Red, LH Ski Leg

505074488

$234.99

300

Can-Am Red, LH Ski Leg | Model with Viper Red Ski Leg

505074533

$234.99

300

Can-Am Red, RH Ski Leg | Except Hill Climb Edition & Ski Stance 38''

505074481

$234.99

300

Can-Am Red, RH Ski Leg

505074489

$234.99

300

Can-Am Red, RH Ski Leg | Model with Viper Red Ski Leg

505074534

$234.99

320

Leg Bushing

505072690

$12.49

330

Spacer

503193651

$9.69

400

RH Lower Arm 36"

505074500

$204.99

400

RH Lower Arm

505074085

$204.99

400

RH Lower Arm

505074085

$204.99

400

LH Lower Arm 36"

505074499

$204.99

400

LH Lower Arm

505074504

$204.99

400

LH Lower Arm

505074504

$204.99

420

Bushing

505072208

$3.28

430

Sleeve

505072209

$17.84

430

Sleeve

505072209

$17.84

430

Bushing

505072214

$18.89

440

Wear Plate

505072634

$6.29

445

O-Ring

505072448

$2.32

450

Screw Hex. M10 X 70

250001024

$2.11

455

Screw Hex. M10 X 70

250001024

$2.11

470

Wear Plate

505073723

$6.19

480

Plate

505073844

$2.29

500

LH Upper Arm 36"

505074609

$154.99

500

LH Upper Arm 39"

505074611

$204.99

500

M Type LH Upper Arm 39"

505074613

$154.99

500

RH Upper Arm 36"

505074610

$154.99

500

RH Upper Arm 39"

505074612

$154.99

500

RH Upper Arm 39"

505074614

$154.99

520

Bushing

505072250

$3.28

530

Sleeve

505072143

$9.00

540

Screw Hex. M10 X 60

250001023

$2.11

545

Hex. Flange Elastic Nut M10

250100165

$0.85

550

Screw Hex. M10 X 60

250001023

$2.11

555

Hex. Flange Elastic Nut M10

250100165

$0.85

660

Washer

503189564

$0.74

670

Washer

505072392

$4.76

680

Hex. Flange Elastic Nut M10

250100165

$0.85

685

Hex. Flange Elastic Nut M10

250100165

$0.85

690

O-Ring

505072448

$2.32

800

Stabilizer Bar

505075485

$74.49

810

Bushing

505072786

$9.23

830

Stabilisator Lever

505073752

$18.49

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

850

Hex. Flange Elastic Nut M6

233261466

$2.00

860

Double Ball Joint Link

505073172

$56.99

865

Double Ball Joint Link

860200811

$92.49

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

880

Hex. Flange Elastic Nut M6

233261466

$2.00

1120

Adjustment Knob

505072753

$2.19

1130

Allen Screw M3 X 0.5 X 10

250000644

$2.11

1140

Shock Adjuster Knob

503193033

$10.99

1150

Allen Screw M3 X 0.5 X 10

250000644

$2.11

1170

Hex. Flange Screw M8 X 58

250000824

$2.11

1180

Hex. Flange Screw M8 X 58

250000824

$2.11

1190

Hex. Flange Elastic Nut M8

233281414

$1.47

1200

Ball Joint

505074009

$54.99

1200

Ball Joint

505074133

$53.99

1230

Washer

503192491

$4.54

1240

Hex Elastic Nut M12 X 1.25

232521464

$2.11

1300

Circlip

293370070

$8.99

1400

Upper Ball Joint

505072913

$72.99

1410

Snap Ring

293370098

$3.17
