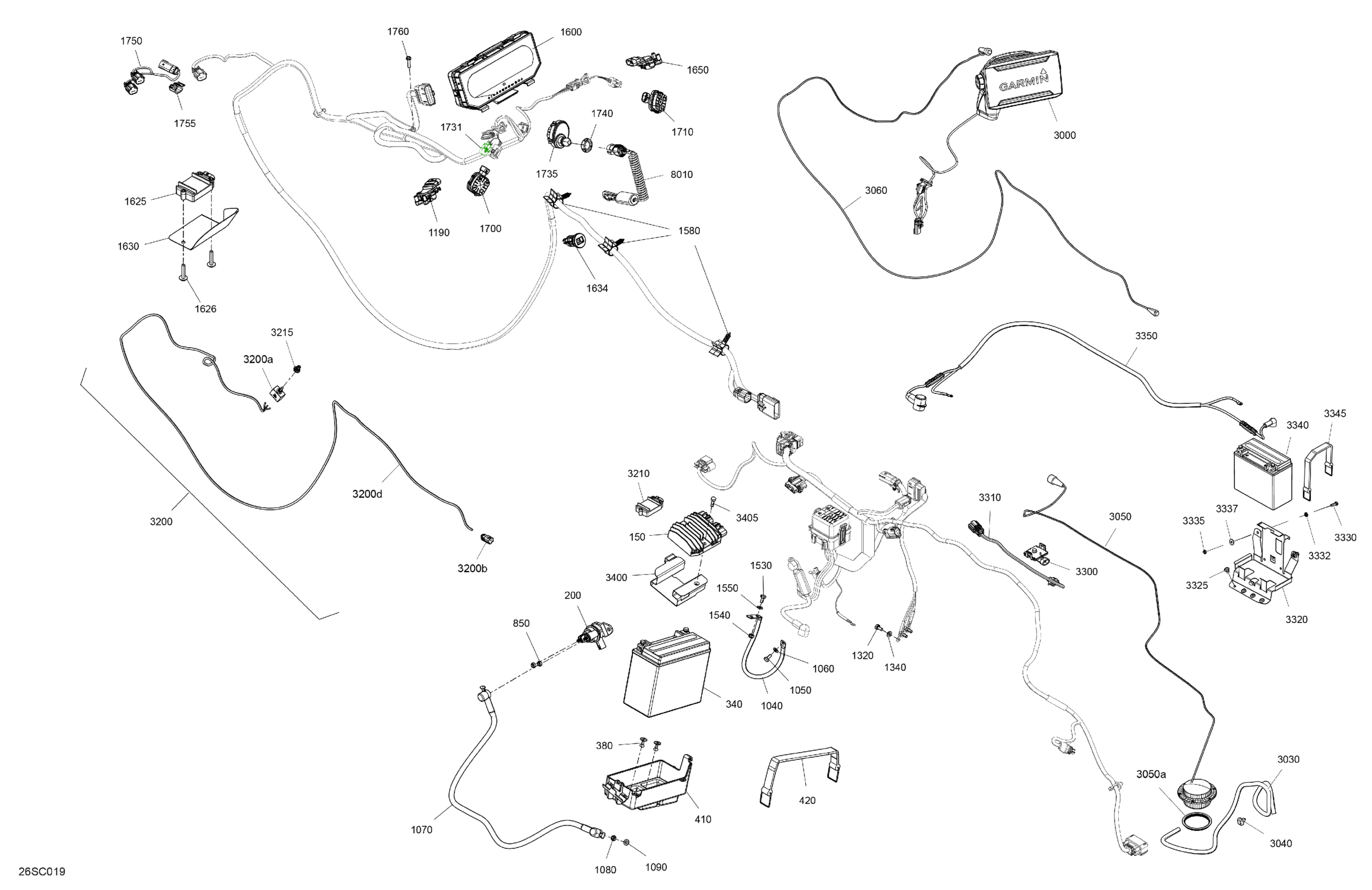

Sea-doo FISH PRO TROPHY 170, 2023 Electric - System Diagram

Voltage Regulator

710005842

$159.87

Starter Relay

278003012

$35.07

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Pop Rivet 3/16"

293150123

$3.43

Battery Support

278003473

$22.72

Fuel Tank Strap

293850095

$14.27

Elastic Stop Nut M6, Brass

232561200

$3.51

Ground Battery Cable

278003451

$31.17

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Stainless Flat Washer M6

234061600

$0.25

Starter Cable

278003369

$31.17

Elastic Stop Nut M6, Brass

232561200

$3.51

Stainless Flat Washer M6

234061600

$0.25

LH Throttle Sensor

278002284

$108.18

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Stainless Flat Washer M6

234061600

$0.25

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Elastic Stop Nut M6, Brass

232561200

$3.51

Stainless Flat Washer M6

234061600

$0.25

Retainer

278003564

$6.57

Full Size Multifunction Color Gauge

278004097

$925.57

GPS

278004506

$85.77

Hexagonal Cap Screw M6 X35

250000399

$3.61

Bent Deflector

278003976

$9.73

Wiring Grommet

293720121

$3.59

Throttle Position Sensor

278002283

$94.22

Switch

278003821

$101.37

RH Switch Keypad

278003474

$101.37

Start/Stop Switch This part replaces 296000440.

296000440

$42.87

Terminal DESS One Wire

515179305

$60.42

Specialized Nut

278004274

$2.72

Multiple Accessory Harness

278003684

$41.57

Connectors Support

278003734

$2.72

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Echo Sounder Switch Kit

295100975

$1,074.99

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

Mount Dart

710008294

$0.99

Transducer | Includes 3000 to 3000a

295100972

$341.22

Seal

292002447

$2.63

Echo sounder Wiring Harness

278003982

$83.82

Pump Wiring Harness | Includes 3200 to 3200d

278004018

$107.43

Switch

278004017

$33.77

Housing

515178954

$34.30

Female Terminal

515178014

$1.92

Shrink Tubing, 6 mm

515177246

$0.99

Module Minuterie

278003996

$305.19

Switch Trim

278004016

$4.75

O.T.A.S. Sensor

278003538

$83.17

Seat Wiring Harness

278003986

$20.77

Battery Support

278004014

$57.82

Pop Rivet 3/16

293150186

$1.63

Hex. Forming Screw M6 X 20

207162060

$1.03

Sealing Washer

250200114

$3.61

Elastic Stop Nut M6, Brass

232561200

$3.51

Flat Washer M6, Stainless

234062600

$0.64

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Fuel Tank Strap

293850095

$14.27

Secondary Battery Wiring Harness

278004007

$114.15

Support Régulateur De Tension

278004030

$52.96

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

Safety Lanyard Ass'y, RFID

278003400

$58.47
