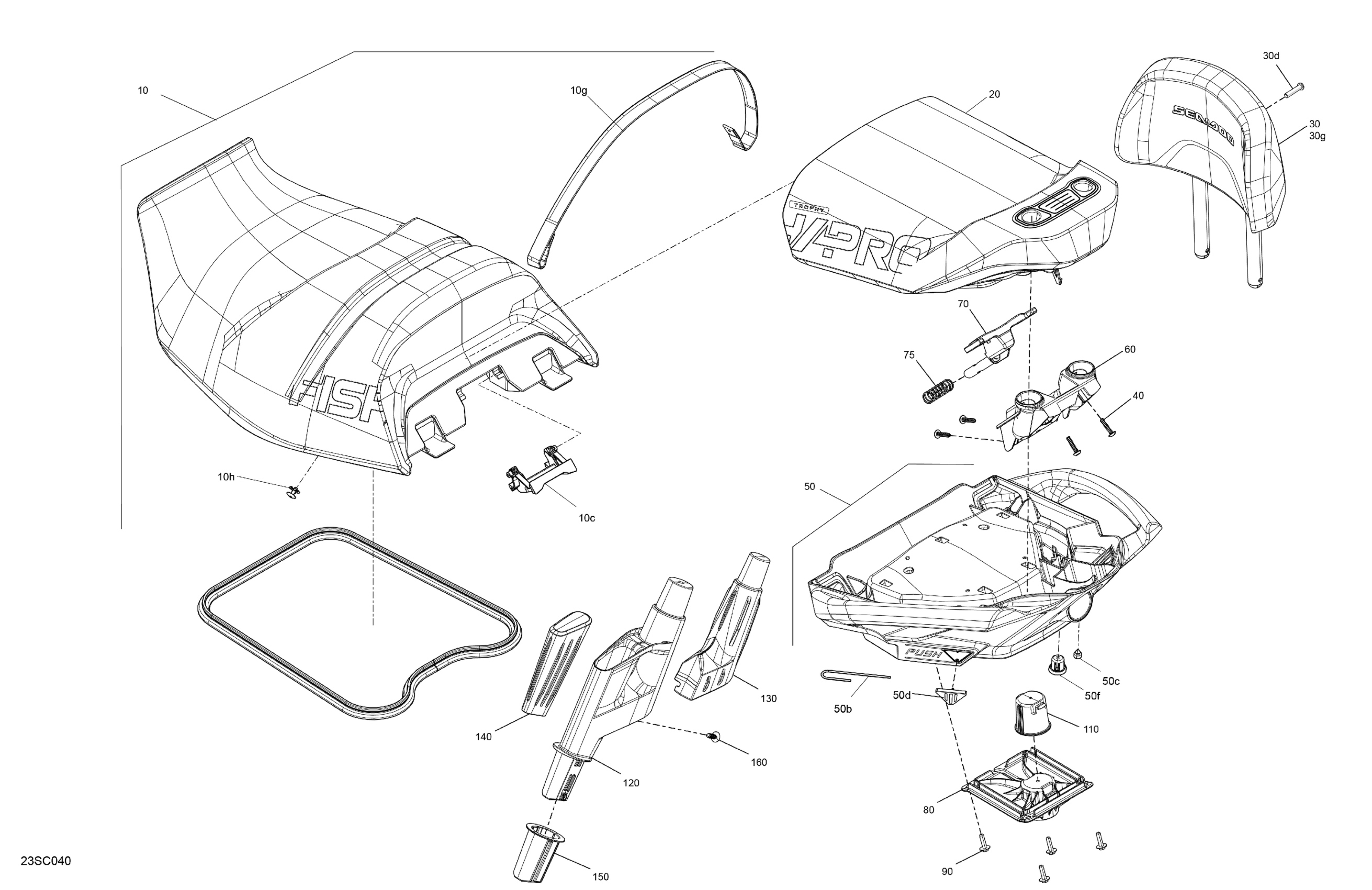

Sea-doo FISH PRO TROPHY 170, 2023 Body - Seat Diagram

#

Description
Price

10

Coastal Grey, Driver Seat Ass'y | Includes 10 to 10h

269003631

$399.99

10c

Seat Latch

269003103

$8.99

10g

Swift Silver, Seat Strap

269003744

$46.99

10h

Rivet | Model-T3

293150067

$2.89

20

Orange Crush, Passenger Seat Ass'y

269003615

$429.99

30

Removable Passenger Backrest Ass'y | Includes 30 to 30g

269003642

$269.99

30d

Plastite Torx Screw #10 X 7/8"

250001196

$4.61

30g

Hexagonal Cap Screw M6 X 25

250000978

$4.44

40

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

50

Ash Grey, Rear Handle Ass'y | Includes 50 to 50f

269004207

$429.99

50b

Spring Latch

269003083

$21.99

50c

Rubber Bumper

293830005

$8.09

50d

Handle Trim This part replaces 269003778.

269004355

$4.79

50f

Stud Receiver

269003085

$5.92

60

Base Latch

269003709

$18.99

70

Overmolded Backrest Latch

269003708

$14.99

75

Compression Spring

269003782

$15.99

80

Upper Seat Anchorage

269003673

$46.99

90

Hexagonal Cap Screw M6 X 25

250000978

$4.44

110

Upper Wear Ring

269003634

$7.30

120

Central Seat Support

269003674

$68.99

130

Lower Float

269003694

$3.69

140

Upper Float

269003756

$27.99

150

Lower Wear Ring Ass'y

291005700

$18.54

160

Black, Dart

293730006

$0.99
