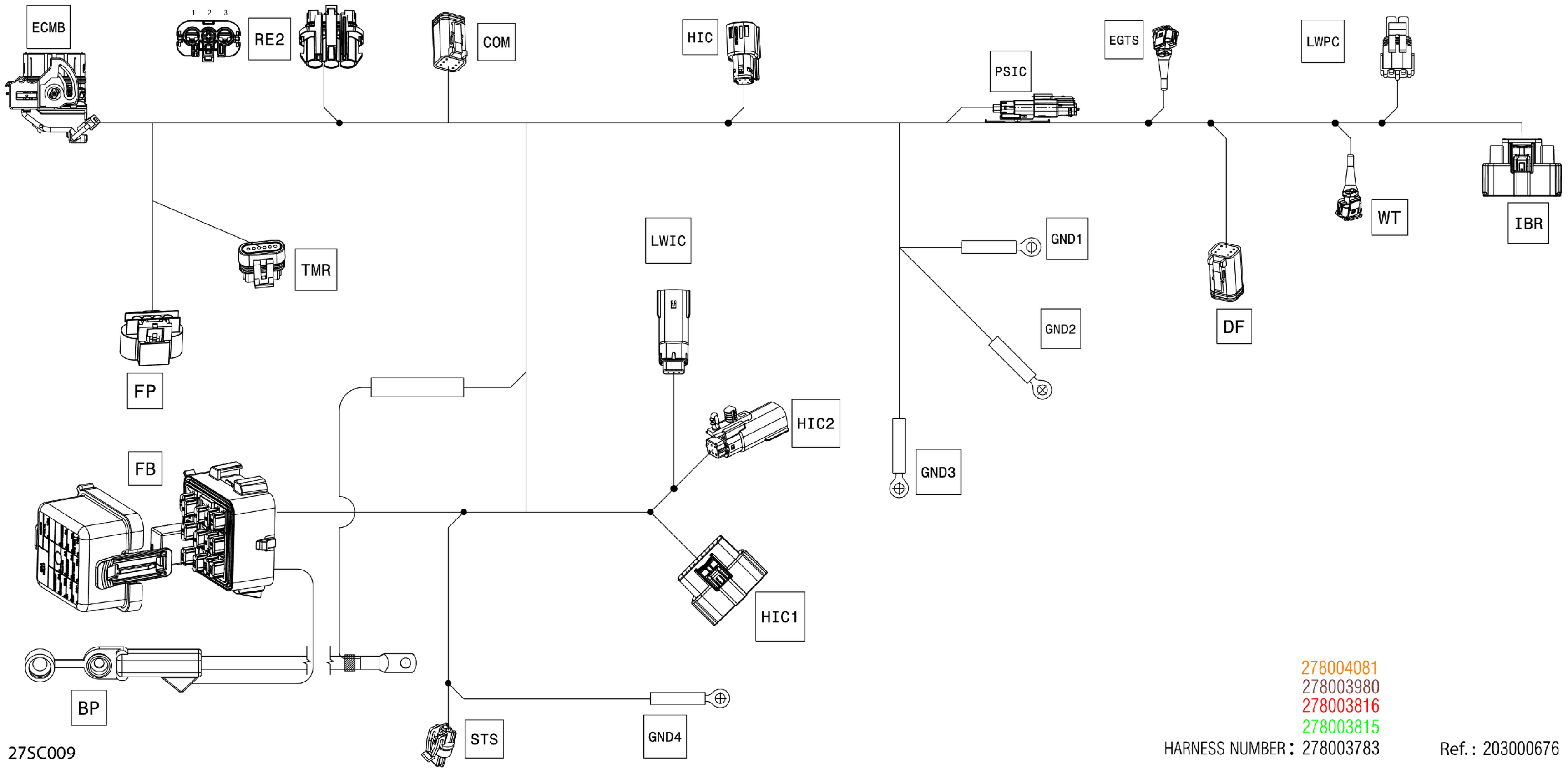

Sea-doo FISH PRO TROPHY 170, 2023 Electric - Main Harness - 278004081 Diagram

#

Description
Price

1000

Main Wiring Harness

278004081

$759.99

BP

Battery Cable

278004036

$71.99

COM

Female Housing 6 Circuits

710002706

$20.49

COM

Lock

710002705

$4.44

COM

Female Terminal

710005438

$4.29

COM

Female Terminal

710005439

$4.44

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB

Plug

710001593

$2.21

ECMB

Plug

710001592

$2.21

ECMB

Female Terminal

710001590

$2.09

ECMB

Female Terminal

710001727

$3.19

ECMB

Female Terminal

710001589

$2.21

EGTS

Housing

710001136

$13.22

EGTS

Seal

415128501

$1.89

EGTS

Female Terminal

710001137

$4.55

FB

Fuse Cover

278003879

$4.44

FB

Little Fuse, 4 Amps

710007051

$29.49

FB

Little Fuse, 4 Amps

710007051

$29.49

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Fuse Base Ass'y

278003448

$31.99

FB

Seal Plug

278002880

$7.86

FB

Relay

715900824

$21.99

FB

Relay 30 Amp

278003828

$13.99

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

710000048

$7.69

FB

Wire Seal

278001065

$7.69

FB

Female Terminal

710000890

$4.55

FB

Female Terminal

710000918

$7.69

FB

Female Terminal

278002578

$1.04

FB

Female Terminal

515177177

$6.49

FP

Male Housing, 4 Circuits

278002185

$7.90

FP

Lock

710001222

$2.09

FP

Wire Seal

278002186

$5.50

FP

Female Terminal

278002187

$6.39

GND1

Open Barrel

278000992

$2.21

GND2

Open Barrel Terminal

278001392

$4.79

GND3

Open Barrel Terminal

278001392

$4.79

GND4

Open Barrel

278000992

$2.21

HIC

Female Housing, 4 circuits

278003535

$25.99

HIC

Female Terminal | Not Shown

278002453

$5.79

HIC

Female Terminal | Not Shown

278002642

$3.79

HIC1

Female Housing 20 Circuits

278002858

$22.49

HIC1

Female Terminal | Not Shown

278002453

$5.79

HIC1

Female Terminal | Not Shown

278002642

$3.79

HIC2

Clip Connector

515178223

$2.09

HIC2

Housing 6 Circuits

278003866

$13.75

HIC2

Male Terminal

278002454

$5.79

IBR

Female Housing ,16 Circuits

278003484

$17.59

IBR

Seal Plug

278002880

$7.86

IBR

Sealing Cap

278002860

$1.79

IBR

Seal

278003046

$0.92

IBR

Female Terminal

278003045

$2.99

IBR

Female Terminal | Not Shown

278002453

$5.79

LWIC

Housing

515178023

$14.74

LWIC

Male Terminal

515178013

$3.19

LWPC

Male Connector, 2 Circuits

278000220

$15.49

LWPC

Wire Seal

278000218

$4.39

LWPC

Female Terminal

409007300

$0.45

PSIC

Clip

278003549

$2.29

PSIC

Housing

515178023

$14.74

PSIC

Housing

515178954

$35.99

PSIC

Sealing Cap

278002860

$1.79

PSIC

Male Terminal

515178013

$3.19

RE2

Female Housing, 3 Circuits

710000879

$25.99

RE2

Seal

710001932

$3.27

RE2

Terminal

710001934

$5.50

STS

Female Housing, 2 Circuits

515177192

$9.12

STS

Wire Seal

710001163

$7.69

STS

Female Terminal

710001164

$8.89

TMR

Female Terminal Housing 6 Circuits

278002299

$9.10

TMR

Female Terminal

278001114

$3.19

WT

Housing

710001136

$13.22

WT

Seal

415128501

$1.89

WT

Female Terminal

710001137

$4.55
