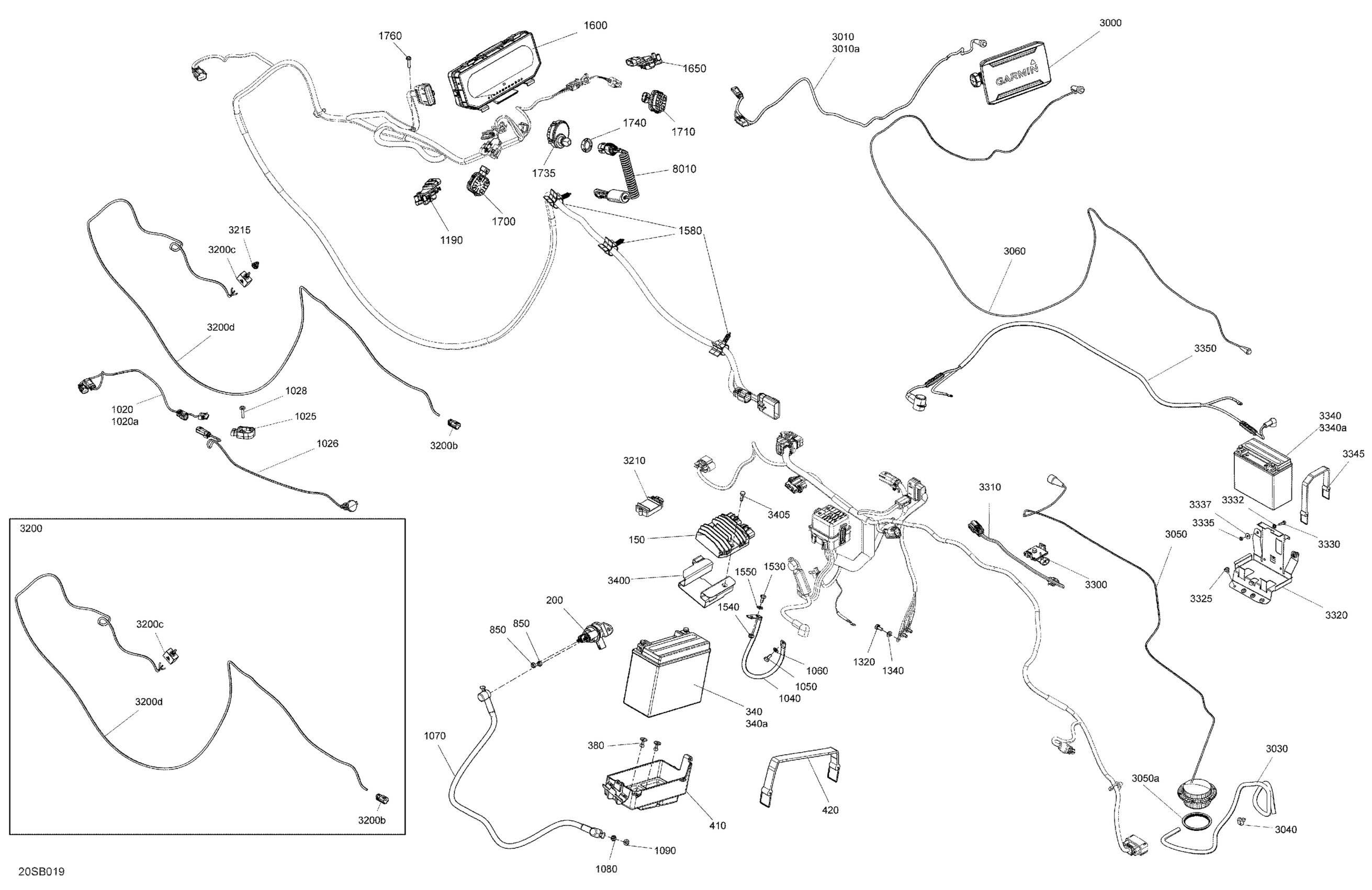

Sea-doo FISH PRO TROPHY 170, 2022 Electric - System - VIP Medium Diagram

#

Description
Price

150

Voltage Regulator

710005842

$159.87

200

Starter Relay

278003012

$35.07

340

Battery 12 Volt 18AH

296000449

$126.07

340a

Battery Bolt Kit

250000282

$2.95

380

Pop Rivet 3/16"

293150123

$3.43

410

Battery Support

278003473

$22.72

420

Fuel Tank Strap

293850095

$14.27

850

Elastic Stop Nut M6, Brass

232561200

$3.51

1020

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$140.37

1020a

Connector USB wih Cable

710005857

$38.78

1025

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$140.37

1026

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$140.37

1028

Hexagonal Cap Screw M6 X35

250000399

$3.61

1040

Ground Battery Cable

278003451

$31.17

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1060

Stainless Flat Washer M6

234061600

$0.25

1070

Starter Cable

278003369

$31.17

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1540

Elastic Stop Nut M6, Brass

232561200

$3.51

1550

Stainless Flat Washer M6

234061600

$0.25

1580

Retainer

278003564

$6.57

1600

Full Size Multifunction Mono Gauge

278003432

$729.07

1650

Throttle Position Sensor

278002283

$94.22

1700

Switch

278003821

$101.37

1710

RH Switch Keypad

278003474

$101.37

1735

Terminal_Dess One-Wire Open

515179239

Unavailable

1740

Safety Nut (DESS Switch)

278002963

$2.72

1760

Hex. Screw 10-14 X 7/8”

211000023

$2.91

3000

Echo Sounder Switch Kit

295100975

$1,074.99

3010

Echo Sounder Wiring Harness | Includes 3010 to 3010k

278003974

$74.07

3010a

Power Supply Cable

278003975

$36.37

3030

Polyurethane Hose

293830193

Unavailable

3040

Mount Dart

293730040

$0.86

3050

Transducer | Includes 3000 to 3000a

295100972

$341.22

3050a

Seal

292002447

$2.63

3060

Echo sounder Wiring Harness

278003982

$83.82

3200

Pump Wiring Harness | Includes 3200 to 3200d

278004018

$107.43

3200b

Housing

515178954

$34.30

3200c

Female Terminal

515178014

$1.92

3200d

Shrink Tubing, 6 mm

515177246

$0.99

3210

Module Minuterie

278003996

$305.19

3215

Switch Trim

278004142

Unavailable

3300

O.T.A.S. Sensor

278003538

$83.17

3310

Seat Wiring Harness

278003986

$20.77

3320

Battery Support

278004014

$57.82

3325

Pop Rivet 3/16

293150186

$1.63

3330

Hex. Forming Screw M6 X 20

207162060

$1.03

3332

Sealing Washer

250200114

$3.61

3335

Elastic Stop Nut M6, Brass

232561200

$3.51

3337

Flat Washer M6, Stainless

234062600

$0.64

3340

Battery 12 Volt 18AH

296000449

$126.07

3340a

Battery Bolt Kit

250000282

$2.95

3345

Fuel Tank Strap

293850095

$14.27

3350

Secondary Battery Wiring Harness

278004007

$114.15

3400

Support Régulateur De Tension

278004030

$52.96

3405

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

8010

Safety Lanyard Ass'y, RFID

278003400

$58.47
