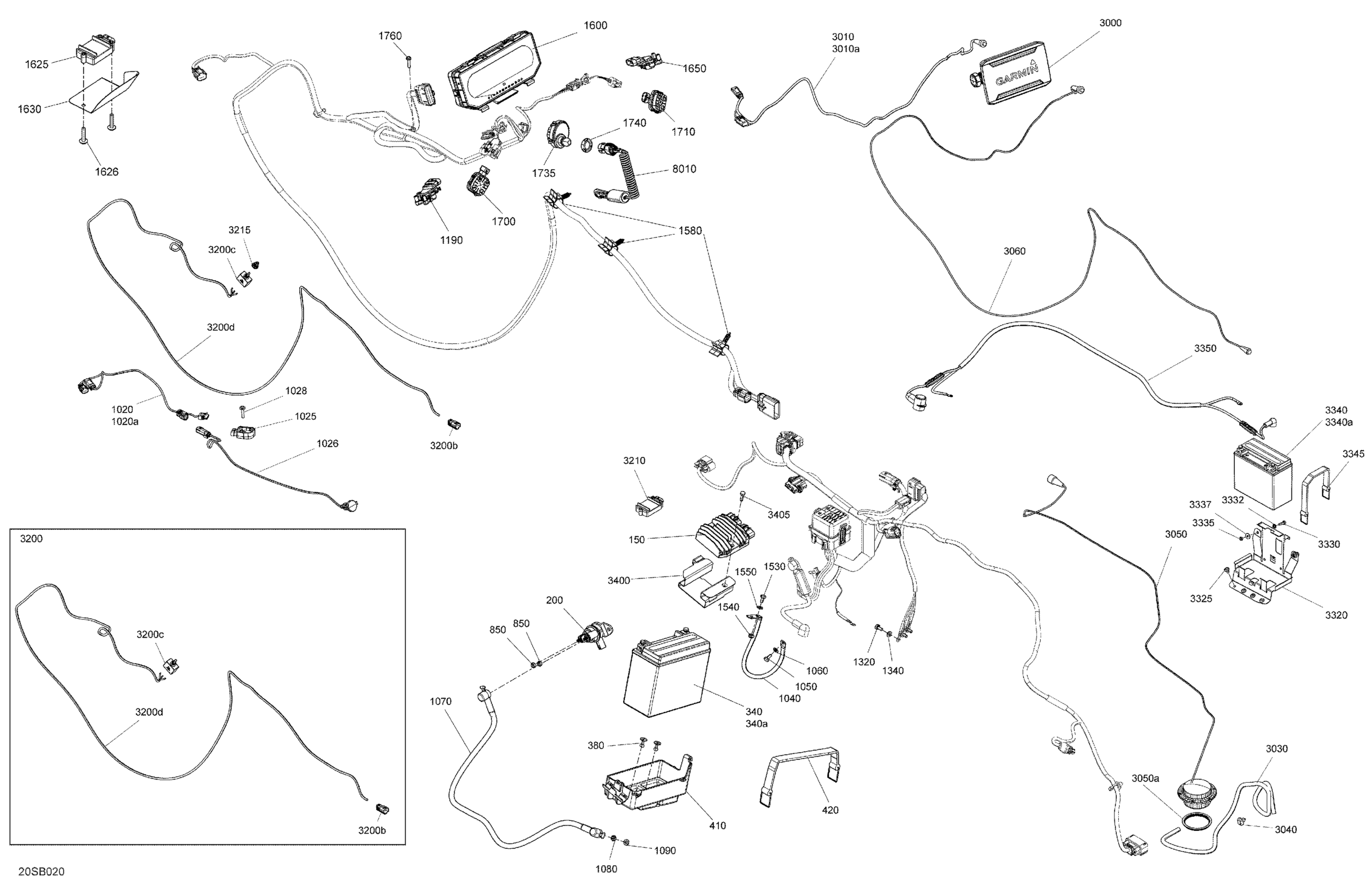

Sea-doo FISH PRO TROPHY 170, 2022 Electric - System - International Diagram

#

Description
Price

150

Voltage Regulator

710005842

$189.99

200

Starter Relay

278003012

$42.49

340

Battery 12 Volt 18AH

296000449

$92.28

340a

Battery Bolt Kit

250000282

$7.29

380

Pop Rivet 3/16"

293150123

$4.29

410

Battery Support

278003473

$28.99

420

Fuel Tank Strap

293850095

$19.99

850

Elastic Stop Nut M6, Brass

232561200

$4.23

1020

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$149.99

1020a

Connector USB wih Cable

710005857

$41.49

1025

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$149.99

1026

USB Charger Cable Ass'y | Includes 1020 to 1020b

295100710

$149.99

1028

Hexagonal Cap Screw M6 X35

250000399

$4.44

1040

Ground Battery Cable

278003451

$39.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1580

Retainer

278003564

$8.39

1600

Full Size Multifunction Color Gauge

278004097

$1.00

1625

External GPS Module

278003899

$189.99

1626

Hexagonal Cap Screw M6 X35

250000399

$4.44

1630

Bent Deflector

278003976

$10.99

1650

Throttle Position Sensor

278002283

$119.99

1700

Switch

278003821

$126.99

1710

RH Switch Keypad

278003474

$126.99

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

1740

Safety Nut (DESS Switch)

278002963

$3.28

1750

Multiple Accessory Harness

278003684

$53.99

1755

Connectors Support

278003734

$2.96

1760

Hex. Screw 10-14 X 7/8”

211000023

$3.59

3000

Echo Sounder Switch Kit

295100975

$1.00

3010

Echo Sounder Wiring Harness | Includes 3010 to 3010k

278003974

$94.99

3010a

Power Supply Cable

278003975

$46.99

3030

Polyurethane Hose

293830193

Unavailable

3040

Mount Dart

293730040

$1.04

3050

Transducer | Includes 3000 to 3000a

295100972

$349.99

3050a

Seal

292002447

$3.27

3060

Echo sounder Wiring Harness

278003982

$109.99

3200

Pump Wiring Harness | Includes 3200 to 3200d

278004018

$119.99

3200b

Housing

515178954

$35.99

3200c

Female Terminal

515178014

$2.39

3200d

Shrink Tubing, 6 mm

515177246

$1.04

3210

Module Minuterie

278003996

$339.99

3215

Switch Trim

278004142

Unavailable

3320

Battery Support

278004014

$73.99

3325

Pop Rivet 3/16

293150186

$2.09

3330

Hex. Forming Screw M6 X 20

207162060

$1.29

3332

Sealing Washer

250200114

$4.44

3335

Elastic Stop Nut M6, Brass

232561200

$4.23

3337

Flat Washer M6, Stainless

234062600

$0.77

3340

Battery 12 Volt 18AH

296000449

$92.28

3340a

Battery Bolt Kit

250000282

$7.29

3345

Fuel Tank Strap

293850095

$19.99

3350

Secondary Battery Wiring Harness

278004007

$129.99

3400

Support Régulateur De Tension

278004030

$58.99

3405

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99
