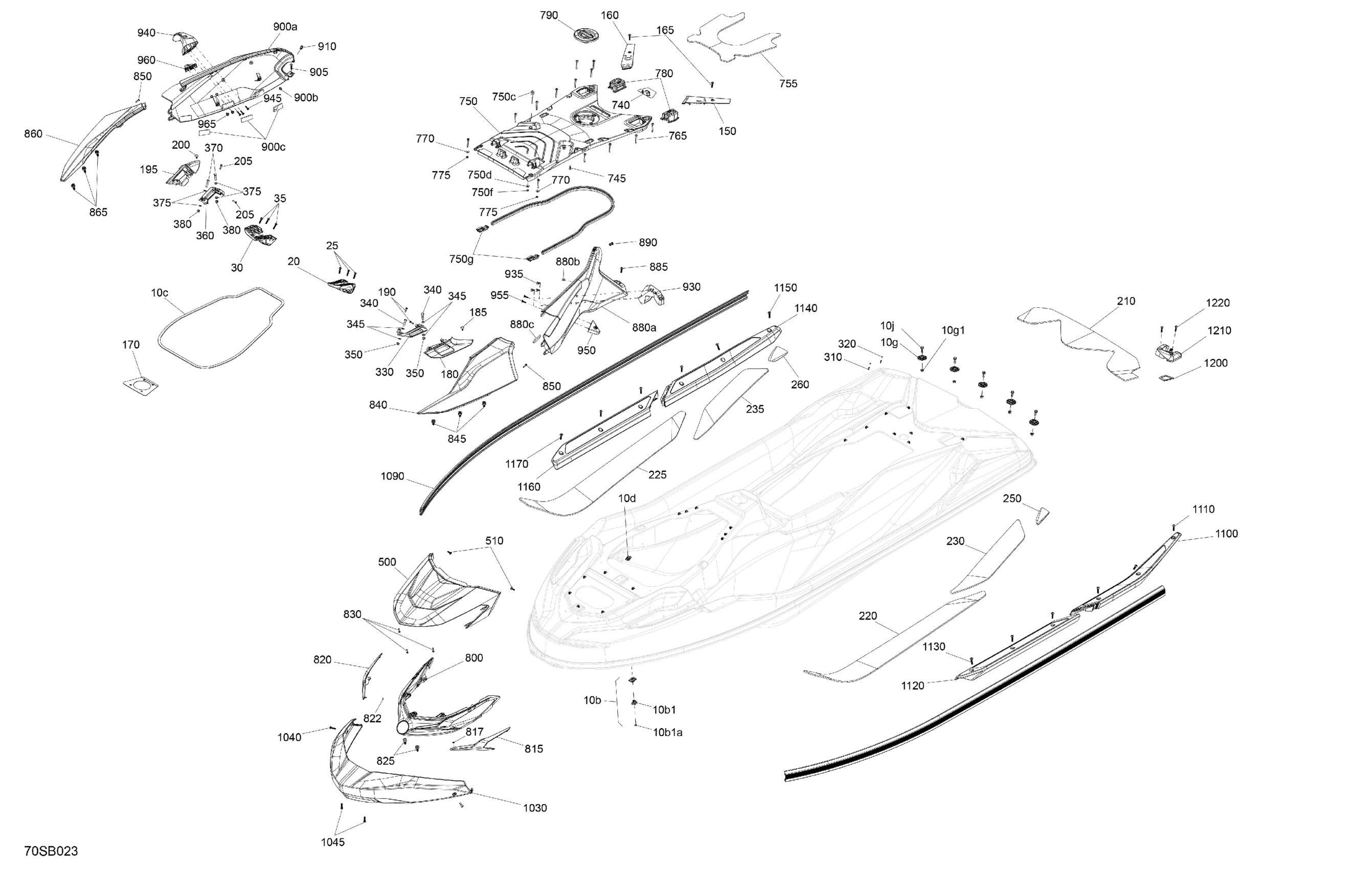

Sea-doo FISH PRO TROPHY 170, 2022 Body - System - International Diagram

#

Description
Price

10b

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.39

10b1

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$2.00

10b1a

Elastic Stop Nut M6, Brass

232561200

$4.23

10c

Gasket

293250401

$12.11

10d

Tie-Rap Mount

293750025

$1.25

10g

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

10g1

Hex. Flange Nut M8

233181600

$1.05

10j

Hex. Flange Screw M8 X 25

207682544

$1.35

20

LH Support

291004714

$10.99

25

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

30

RH Support

291004715

$12.49

35

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

150

LH Shim

291005176

$16.49

160

RH Shim

291005177

$16.49

165

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

170

Gasket

293250451

$23.99

180

LH Shell Cleat

291004661

$10.99

185

Black, Dart

293730011

$0.99

190

Hex. Screw 10-14 X 7/8”

211000023

$3.59

195

RH Shell Cleat

291004719

$10.99

200

Black, Dart

293730011

$0.99

205

Hex. Screw 10-14 X 7/8”

211000023

$3.59

210

Deck Anti Slip Mat

291005817

$51.99

220

LH Front Anti Slip Mat

291005351

$33.99

225

RH Front Anti Slip Mat

291005350

$33.99

230

LH Rear Anti Slip Mat

291005353

$17.20

235

RH Rear Anti Slip Mat

291005352

$17.20

250

LH Anti Slip Mat

291005883

$5.50

260

RH Anti Slip Mat

291005884

$5.50

310

Rivet 1/8"

293150016

$0.40

320

Black, Snap Cap

293000014

$1.09

330

LH Cleat

291004559

$9.79

340

Hex. Screw M8 X 35

207083560

$1.47

345

Stainless, Flat Washer 8 mm

234081600

$0.55

350

Hex. Elastic Nut M8 Brass

232581200

$2.22

360

RH Cleat

291004720

$9.79

370

Hex. Screw M8 X 35

207083560

$1.47

375

Stainless, Flat Washer 8 mm

234081600

$0.55

380

Hex. Elastic Nut M8 Brass

232581200

$2.22

500

Deep Black, Hood

291005579

$97.99

510

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

740

Hose Protector

291004941

$4.69

745

Black, Dart

293730011

$0.99

750

Acces Cover Ass'y | Includes 750 to 750g

291005876

$219.99

750c

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

750d

Flat Washer M6, Stainless

234062600

$0.77

750f

Elastic Stop Nut M6, Brass

232561200

$4.23

750g

Seal

291004717

$12.99

755

Deep Black, Rear Mat

291005861

$39.99

765

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

770

Flat Washer M6, Stainless

234062600

$0.77

775

Elastic Stop Nut M6, Brass

232561200

$4.23

780

Linq Bases Kit

295100858

$13.30

790

Access Cap Ass'y

291004481

$10.99

800

Front Hood Grille

291005915

$35.99

815

Orange Crush, LH Trim

291005968

$28.99

817

Push Nut | Not shown

211100002

$2.19

820

Orange Crush, RH Trim

291005969

$28.99

822

Push Nut | Not shown

211100002

$2.19

825

Dard

293730071

$1.15

830

Hex. Screw 10-14 X 7/8”

211000023

$3.59

840

Coastal Gray, LH Front Body Panel

291005774

$164.99

845

Dard

293730071

$1.15

850

Hex. Screw 10-14 X 7/8”

211000023

$3.59

860

Coastal Gray, RH Front Body Panel

291005775

$164.99

865

Dard

293730071

$1.15

880a

Coastal Gray, LH Central Body Panel

291005769

$164.99

880b

Rubber Bumper

293830005

$8.09

880c

Stopper

278003860

$0.76

885

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.54

890

Tuflok Plastic Rivet

293150230

$1.47

900a

Coastal Gray, RH Central Body Panel

291005772

$164.99

900b

Rubber Bumper

293830005

$8.09

900c

Stopper

278003860

$0.76

905

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.54

910

Tuflok Plastic Rivet

293150230

$1.47

930

LH Rod Holder Top Adapter

295100948

$31.99

935

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

940

RH Rod Holder Top Adapter

295100949

$31.99

945

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

950

LH Rod Holder Top Adapter

295100948

$31.99

955

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

960

RH Rod Holder Top Adapter

295100949

$31.99

965

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

1030

Front Bumper

291004452

$77.49

1040

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1045

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

1090

Bumper 2775±25mm

291004468

$134.99

1100

Orange Crush, LH Rear Footrest Ass'y

291005909

$61.99

1110

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

1120

Orange Crush, LH Front Footrest Ass'y

291005907

$61.99

1130

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

1140

Orange Crush, RH Rear Footrest Ass'y

291005905

$61.99

1150

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

1160

Orange Crush, RH Front Footrest Ass'y

291005903

$61.99

1170

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

1200

Gasket

291005694

$5.82

1210

Trim Support

291006092

$14.99

1220

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66
