Description

Price

3a

Connector With Plug | Includes 3a to 3a1

710007727

$13.00

3a1

Cap

710001225

$7.27

8c

Battery, 12 Volts, 21 Amperes | Includes 8a to 8a1

219800519

$203.60

8c1

Battery Bolt Kit | Not Shown

219800542

$7.31

8d

Latch

520000528

$6.60

8f

Battery Holder

710002893

$17.00

8g

Starter Relay

278003012

$35.07

8h

Hex. Elastic Stop Nut M6

232561600

$0.92

8j

Hex. Flange Elastic Nut M6

233261466

$1.66

8k

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,210.00

8m

Shock Damper

710003279

$10.14

8n

VCM Harness Protector

710003996

$3.00

8p

PBM Module Ass'y

710008602

$460.00

8q

Torx Screw M4 X 16

250000750

$1.37

8r

Elastic Stop Nut M4

232541484

$0.61

8s

Flat Washer 4 mm

234041480

$0.61

8t

Horn

710004940

$29.00

8u

Horn Support

710005769

$16.00

8v

Torx Truss M8 X 25

250000874

$1.74

8w

Hex. Flange Elastic Nut M8

233281414

$1.14

8x

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

8y1

Reverse Cable

710002889

$32.00

8y2

Actuator

710011269

$65.00

8y3

Elastic Stop Nut M4

232541414

$0.48

8y4

Socket Head Screw M4 X 40

205444056

$1.74

8y5

Pop Rivet 5/32

390403000

$0.34

8y6

Reverse Actuator Support

710005642

$31.00

8y7

Clip

270000141

$8.33

8y8

Pop Rivet 3/16"

390402400

$0.25

8z

Hex. Flange Screw M6 X 12

210261250

$1.56

8aa

Actuator Motor

710007256

$228.00

8ab

Hex. Flange Screw M6 X 20

207662054

$0.83

8ac

Elastic Stop Nut M6

232561434

$1.55

8ad

Brake Pressure Switch Ass'y

710001379

$41.51

8af

Pop Rivet

293150150

$2.31

8ag

Yaw Rate Sensor

710005658

$166.12

8ah

Hex. Flange Screw M6 X 16

210261650

$1.22

1150

Dess Module

710004916

$180.00

1153

Wire Support

710004308

$13.00

1154

Hex. Forming Screw M6 X 10

210261050

$1.42

1155

Hexagonal Head Screw

210262050

$1.74

1156

Flat Washer 6 mm

234062410

$0.64

1160

Rubber Bumper

293830091

$8.29

2000

Pos Cable

710008074

$85.00

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

2021

Serrated Lock Washer 8 mm

234481608

$1.09

2160

Stainless Flat Washer M6

234061600

$0.25

2161

Elastic Stop Nut M6

232561434

$1.55

2250

Battery Wiring Harness | Includes 2250 to 2250r

710007687

$100.00

2250a

Hex. Screw M6 X 14

207161444

$0.48

2250b

Protector Cap

710000393

$8.98

2250j

Battery Guard

710002945

$13.00

2250p

Fuse 80 A

710008102

$15.35

2250q

Fuse Holder Support

710008098

$24.00

2250r

Fuse Holder Cover

710008154

$43.00

2262

Hex. Flange Screw M6 X 12

210261250

$1.56

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2271

Hex. Nut M6

232061600

$0.91

2272

Lock Washer Helical M6

234161601

$0.92

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2281

Hex. Nut M6

232061600

$0.91

2282

Lock Washer Helical M6

234161601

$0.92

4042

Lock

710001222

$1.68

4044

Pop Rivet 3/16"

390402400

$0.25

4045

Clip

270000141

$8.33

4052

Tuflok Plastic Rivet

293150230

$1.21

4055

Connector Plug

710004906

$13.00

4056

Connector Holder

710002033

$3.22

4057

Connector Plug

710004902

$3.00

4058

Connector Holder

710002033

$3.22

4059

Connector Plug

710004903

$3.00

4060

Connector Holder

710002033

$3.22

4065

Support Cable

293750083

$2.75

4074

Support

710004613

$8.00

4075

Connector Plug

710004901

$13.00

4076

Connector Plug

710004901

$13.00

4077

Wire Support

710004669

$7.00

4090

Harness Holder

710004794

$3.00

4095

Tuflok Plastic Rivet

293150230

$1.21

4200

Harness Holder

710004931

$2.00

4210

Tuflock Phillips Plastic Screw

414745900

$1.30

4360

Fuse Holder Support

710004472

$9.29

4361

Hex. Flange Screw M6 X 12

210261250

$1.56

4380

Cable Support

710004299

$4.00

4810

Connector With Cap

710004456

$12.00

5001

Lock Washer 8 mm, Stainless

234181601

$0.46

5002

Hex. Nut M8

232081414

$0.60

5400

Fuel Tank Cable

710006436

$19.00

5405

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.57

5410

Lock Washer Serrated M6

250200041

$0.92

5415

Serrated Lock Washer 8 mm

234481608

$1.09

5420

Washer

250200111

$1.74

8604

Connector Holder

710002033

$3.22

8604a

Antenna

710005434

Unavailable

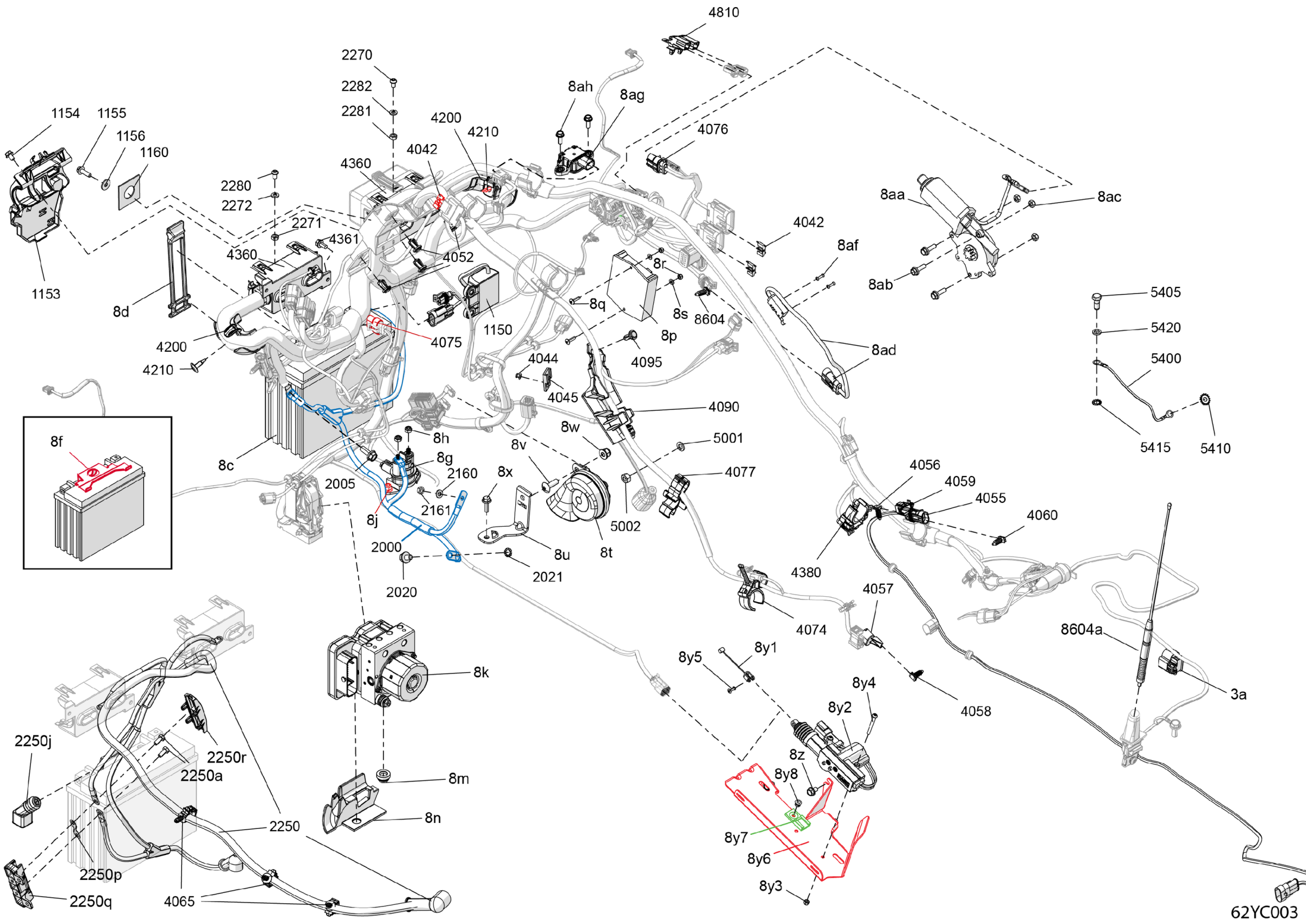

Can-Am F3 T - Pearl White, 2023 Electric - System Diagram

Connector With Plug | Includes 3a to 3a1

Cap

Battery, 12 Volts, 21 Amperes | Includes 8a to 8a1

Battery Bolt Kit | Not Shown

Latch

Battery Holder

Starter Relay

Hex. Elastic Stop Nut M6

Hex. Flange Elastic Nut M6

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

Shock Damper

VCM Harness Protector

PBM Module Ass'y

Torx Screw M4 X 16

Elastic Stop Nut M4

Flat Washer 4 mm

Horn

Horn Support

Torx Truss M8 X 25

Hex. Flange Elastic Nut M8

Hex. Flange Screw M6 X 20, Scotch Grip

Reverse Cable

Actuator

Elastic Stop Nut M4

Socket Head Screw M4 X 40

Pop Rivet 5/32

Reverse Actuator Support

Clip

Pop Rivet 3/16"

Hex. Flange Screw M6 X 12

Actuator Motor

Hex. Flange Screw M6 X 20

Elastic Stop Nut M6

Brake Pressure Switch Ass'y

Pop Rivet

Yaw Rate Sensor

Hex. Flange Screw M6 X 16

Dess Module

Wire Support

Hex. Forming Screw M6 X 10

Hexagonal Head Screw

Flat Washer 6 mm

Rubber Bumper

Pos Cable

Hex. Flange Screw M8 X 20, Scotch Grip

Hex. Flange Screw M8 X 12, Scotch Grip

Serrated Lock Washer 8 mm

Stainless Flat Washer M6

Elastic Stop Nut M6

Battery Wiring Harness | Includes 2250 to 2250r

Hex. Screw M6 X 14

Protector Cap

Battery Guard

Fuse 80 A

Fuse Holder Support

Fuse Holder Cover

Hex. Flange Screw M6 X 12

Socket Head Screw M6 X 10, Scotch Grip

Hex. Nut M6

Lock Washer Helical M6

Socket Head Screw M6 X 10, Scotch Grip

Hex. Nut M6

Lock Washer Helical M6

Lock

Pop Rivet 3/16"

Clip

Tuflok Plastic Rivet

Connector Plug

Connector Holder

Connector Plug

Connector Holder

Connector Plug

Connector Holder

Support Cable

Support

Connector Plug

Connector Plug

Wire Support

Harness Holder
