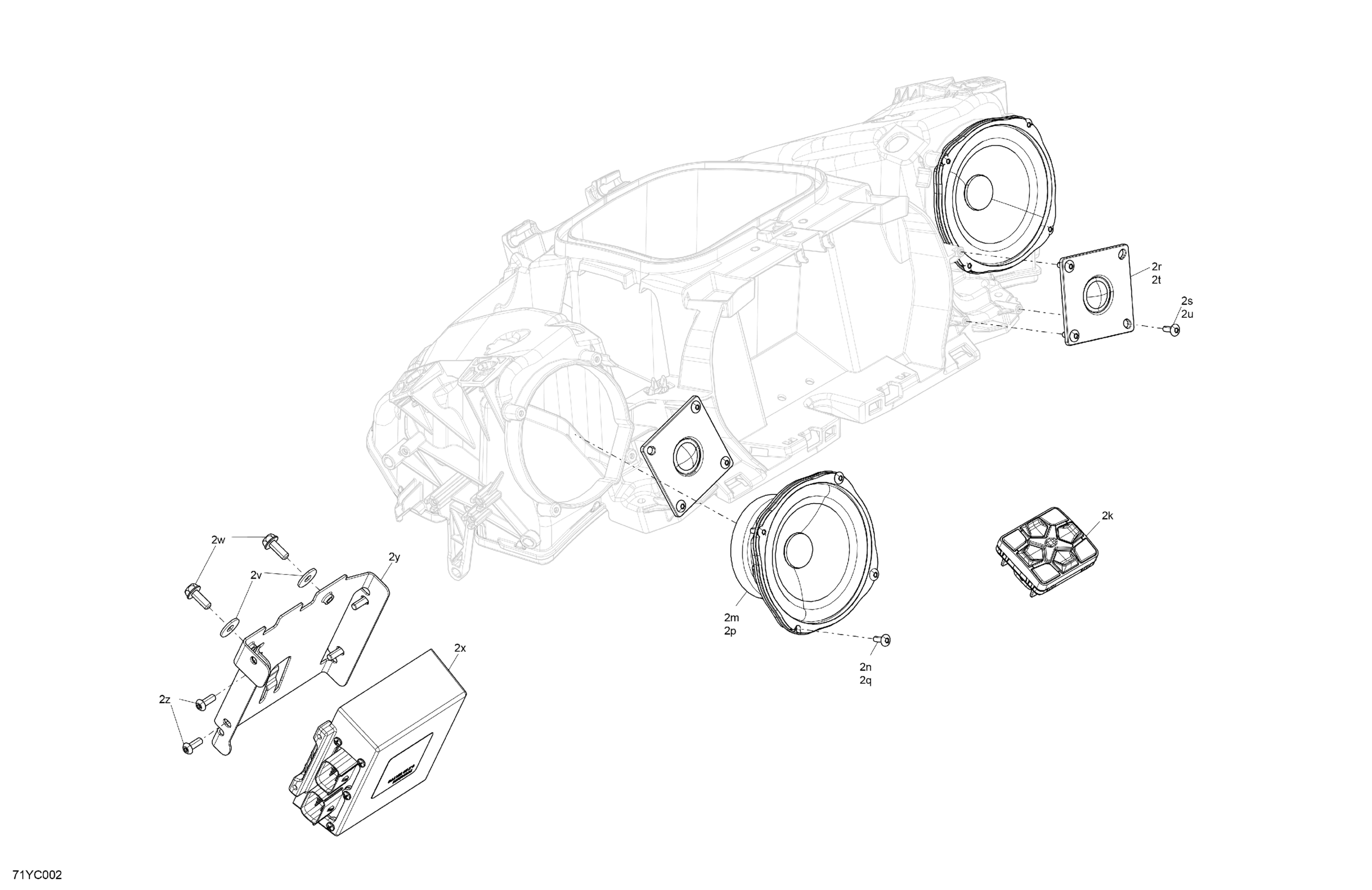

Can-Am F3 T - Pearl White, 2023 Electric - Audio System Diagram

#

Description

Price

2k

Audio Keypad

710006793

$88.99

2m

4.5" Speaker

710005433

$35.99

2n

Torx Truss PT K40 x 12

250001131

$2.11

2p

4.5" Speaker

710005433

$35.99

2q

Torx Truss PT K40 x 12

250001131

$2.11

2r

Loudspeaker Tweeter

710006796

$21.49

2s

Torx Truss PT K40 x 12

250001131

$2.11

2t

Loudspeaker Tweeter

710006796

$21.49

2u

Torx Truss PT K40 x 12

250001131

$2.11

2v

Stainless Steel Flat Washer

234062670

$2.11

2w

Hex. Flange Screw M6 X 16

210261650

$1.67

2x

Amplifier 6 x 20 Watts

710006566

$455.49

2y

Amplifier Holder

710005814

$17.49

2z

Screw-Torx Button Head M5 X 14

235551454

$7.51
