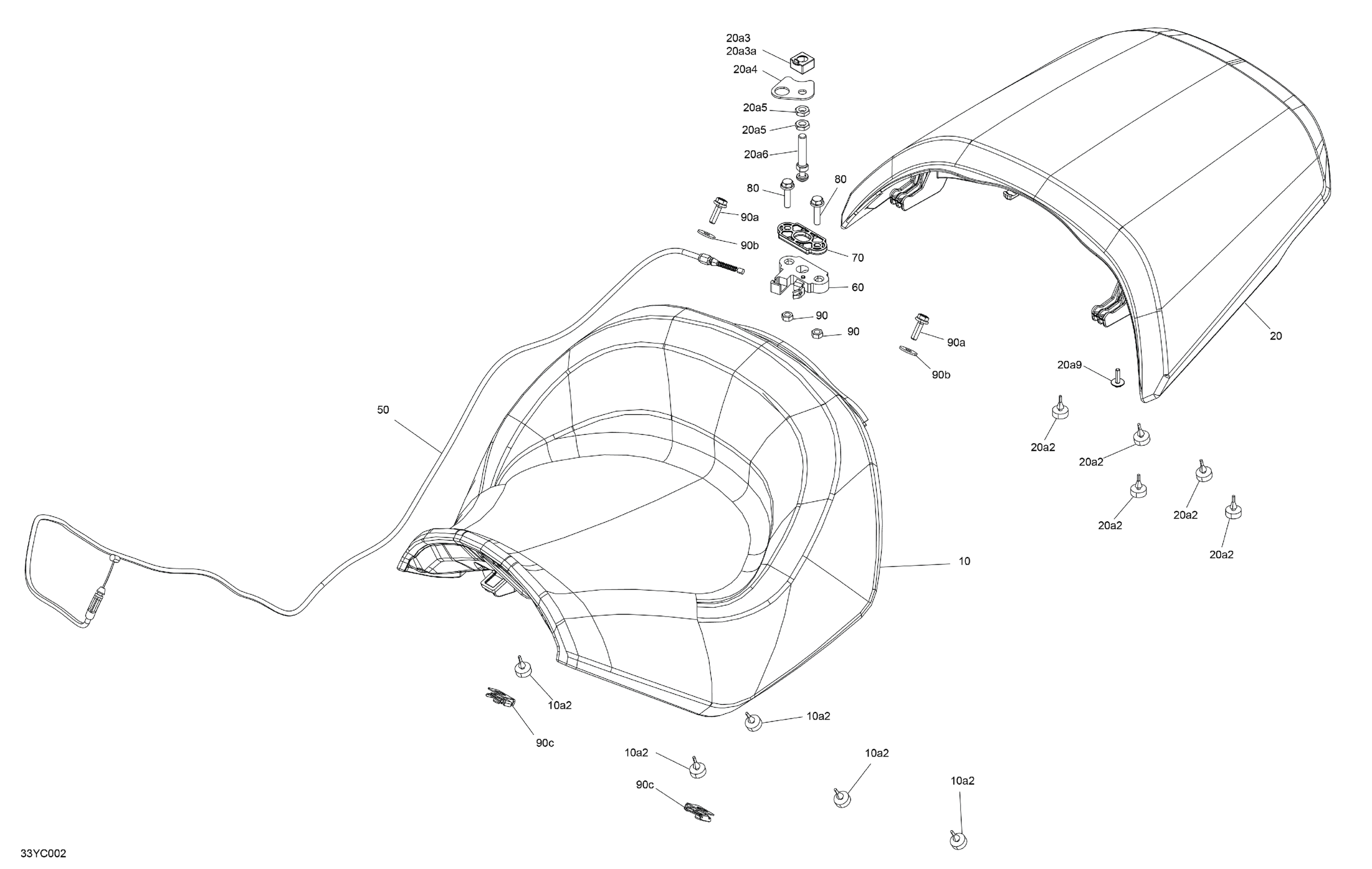

Can-Am F3 T - Pearl White, 2023 Body - Seat Diagram

Description

Price

Seat Driver Ass'y | Includes 10 to 10c

708002806

$490.00

10a2

Rubber Stopper

708000759

$3.61

Seat Passenger Ass'y | Includes 20 to 20c

708002779

$380.00

20a2

Rubber Stopper

708000759

$3.61

20a3

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

20a3a

Hex. Elastic Nut M8 Brass

232581200

$1.29

20a4

Washer

708001909

$10.00

20a5

Hex. Jam Nut M8

232180600

$0.56

20a6

Lug

708001741

$24.00

20a9

Screw M4 X 16

250000725

$2.87

Seat Cable

708001743

$54.00

Latch

705007379

$29.00

Brace

708001771

$4.00

Hex. Flange Screw M6 X 25, Scotch Grip

207562556

$2.06

Hex. Nut M6

232061414

$0.44

90a

Hex. Flange Screw M6 X 20

207662044

$1.66

90b

Flat Washer

250200082

$0.35

90c

Panel Nut M6 X 1.0

250100208

$1.07
