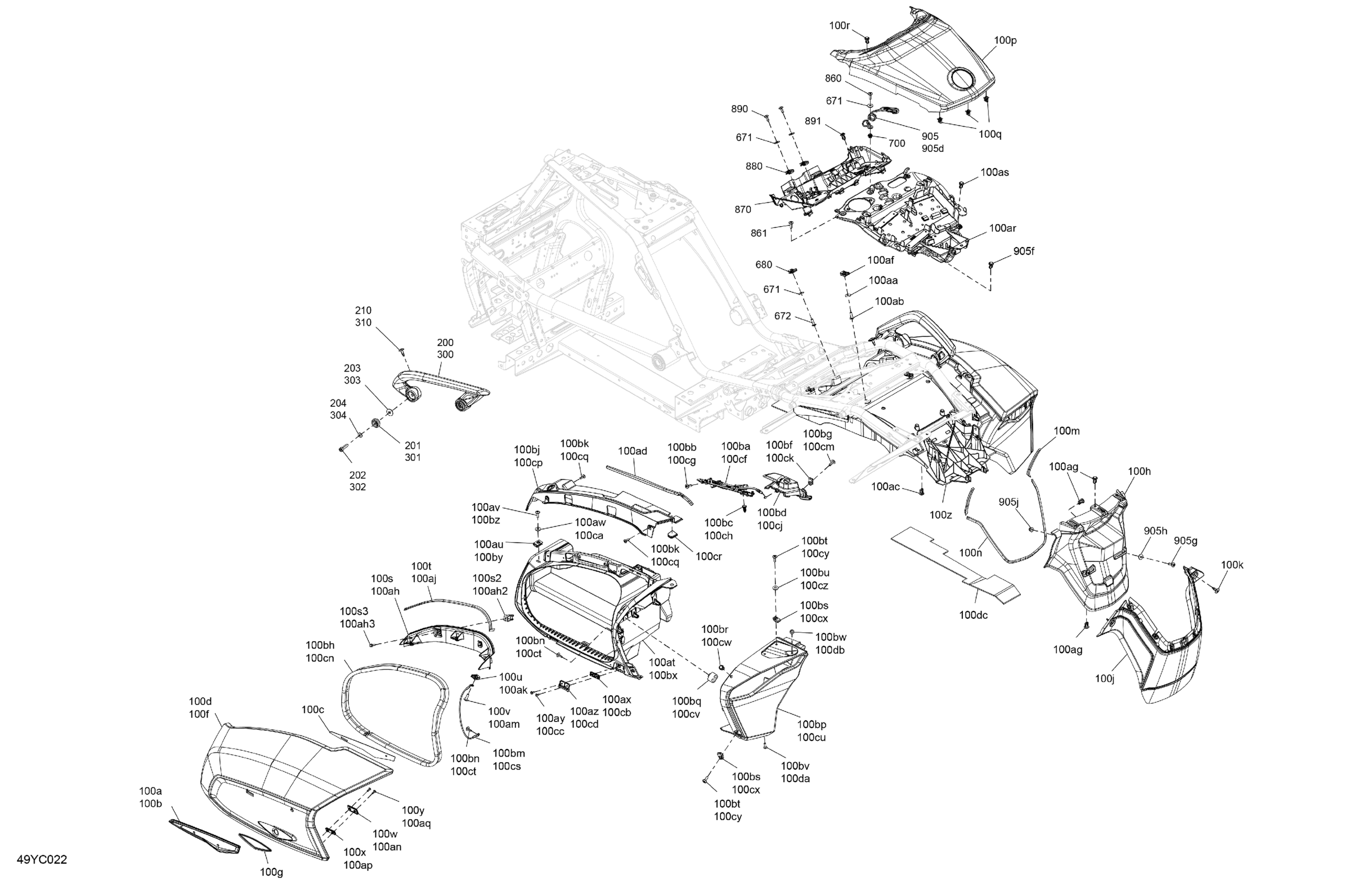

Can-Am F3 T - Pearl White, 2023 Body - Cargo Diagram

#

Description
Price

100a

LH Trim Box

708301859

$4.00

100b

RH Trim Box

708301860

$4.00

100c

Trim Box Double Face Tape

704905469

$4.00

100d

Vegas White, LH Trunk Cover

708301917

$460.00

100f

Vegas White, RH Trunk Cover

708301922

$460.00

100g

Red, Lateral Reflector

705003412

$13.28

100h

Rear Fender

708301584

$205.00

100j

Rear Fender Extention

708301747

$205.00

100k

Tuflock Phillips Plastic Screw

414745900

$1.30

100m

Neoprene Seal, 150 MM

293250385

$3.00

100n

Seal 1000Mm Long

219704373

$8.29

100p

Deep Black, Rear Fairing

708302912

$250.00

100q

Edge Clip

517302785

$0.70

100r

Tuflok Plastic Rivet

293150230

$1.21

100s

LH Inner Cover | Included 100s to 100s3

708301663

$84.00

100s2

Striker Cover

708303255

$7.00

100s3

Hex. Forming Screw M5 X 16

210251650

$0.92

100t

Gasket, Neoprene 2000Mm Long

219704476

$12.64

100u

Panel Nut M6 X 1.0

250100208

$1.07

100v

Torx Screw M6 X 20

250000722

$1.34

100w

Female Hinge

708302044

$11.00

100x

Retaining Plate

708302046

$13.00

100y

Torx Truss PT K40 x 12

250001131

$1.74

100z

Wheel Arch Protector

708304123

$46.00

100aa

Stainless Steel Flat Washer

234062670

$1.74

100ab

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

100ac

Tuflok Plastic Rivet

293150230

$1.21

100ad

Neoprene Seal, 150 MM

293250385

$3.00

100af

Panel Nut M6 X 1.0

250100208

$1.07

100ag

Tuflok Plastic Rivet

293150230

$1.21

100ah

RH Inner Cover | Included 100ah to 100ah3

708301664

$84.00

100ah2

Striker Cover

708303255

$7.00

100ah3

Hex. Forming Screw M5 X 16

210251650

$0.92

100aj

Gasket, Neoprene 2000Mm Long

219704476

$12.64

100ak

Panel Nut M6 X 1.0

250100208

$1.07

100am

Torx Screw M6 X 20

250000722

$1.34

100an

Female Hinge

708302044

$11.00

100ap

Retaining Plate

708302046

$13.00

100aq

Torx Truss PT K40 x 12

250001131

$1.74

100ar

Electronic Component Support

708302571

$24.00

100as

Tuflok Plastic Rivet

293150230

$1.21

100at

LH Cargo

708302404

$95.00

100au

Panel Nut M6 X 1.0

250100208

$1.07

100av

Torx Screw M6 X 20

250000722

$1.34

100aw

Stainless Steel Flat Washer

234062670

$1.74

100ax

Retaining Plate

708302046

$13.00

100ay

Torx Truss PT K40 x 12

250001131

$1.74

100az

Male Hinge

708302045

$11.00

100ba

LH Latch Assembly

708301794

$155.00

100bb

Torx Screw M6 X 20

250000722

$1.34

100bc

Connector Holder

710002033

$3.22

100bd

LH Control

708301222

$44.00

100bf

Panel Nut M6 X 1.0

250100198

$1.73

100bg

Torx Screw M6 X 20

250000722

$1.34

100bh

Trim 3000Mm Long

219704540

$110.00

100bj

LH Cargo Fairing

708302401

$79.00

100bk

Torx Screw K50 X 16

250000720

$1.39

100bm

Retainer Cable

708300385

$39.00

100bn

Screw PT Type K-50 X 16

250000959

$1.74

100bp

LH Light Support

708302283

$50.00

100bq

Brace

708302284

$13.00

100br

Tuflok Plastic Rivet

293150230

$1.21

100bs

Panel Nut M6 X 1.0

250100198

$1.73

100bt

Torx Screw M6 X 20

250000722

$1.34

100bu

Stainless Steel Flat Washer

234062670

$1.74

100bv

Torx Screw K50 X 16

250000720

$1.39

100bw

Rubber Bumper

293830005

$5.33

100bx

RH Cargo

708302405

$95.00

100by

Panel Nut M6 X 1.0

250100208

$1.07

100bz

Torx Screw M6 X 20

250000722

$1.34

100ca

Stainless Steel Flat Washer

234062670

$1.74

100cb

Retaining Plate

708302046

$13.00

100cc

Torx Truss PT K40 x 12

250001131

$1.74

100cd

Male Hinge

708302045

$11.00

100cf

RH Latch Assembly

708301795

$155.00

100cg

Torx Screw M6 X 20

250000722

$1.34

100ch

Connector Holder

710002033

$3.22

100cj

RH Control

708301697

$44.00

100ck

Panel Nut M6 X 1.0

250100198

$1.73

100cm

Torx Screw M6 X 20

250000722

$1.34

100cn

Trim 3000Mm Long

219704540

$110.00

100cp

RH Cargo Fairing

708302402

$79.00

100cq

Torx Screw K50 X 16

250000720

$1.39

100cr

Antena Cap

708301805

$4.00

100cs

Retainer Cable

708300385

$39.00

100ct

Screw PT Type K-50 X 16

250000959

$1.74

100cu

RH Light Support

708302285

$50.00

100cv

Brace

708302284

$13.00

100cw

Tuflok Plastic Rivet

293150230

$1.21

100cx

Panel Nut M6 X 1.0

250100198

$1.73

100cy

Torx Screw M6 X 20

250000722

$1.34

100cz

Stainless Steel Flat Washer

234062670

$1.74

100da

Torx Screw K50 X 16

250000720

$1.39

100db

Rubber Bumper

293830005

$5.33

100dc

Heat Shield

705016875

$48.00

200

LH Rear Holding Handle

708003456

$106.00

201

Bushing

708302461

$19.00

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

203

Flat Washer 8 mm

234082410

$1.11

204

Stainless Steel Flat Washer 8 mm

234081670

$0.56

210

Tuflock Phillips Plastic Screw

414745900

$1.30

300

RH Rear Holding Handle

708003457

$106.00

301

Bushing

708302461

$19.00

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

303

Flat Washer 8 mm

234082410

$1.11

304

Stainless Steel Flat Washer 8 mm

234081670

$0.56

310

Tuflock Phillips Plastic Screw

414745900

$1.30

671

Stainless Steel Flat Washer

234062670

$1.74

672

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

680

Panel Nut M6 X 1.0

250100208

$1.07

700

Threaded Insert M6 X 1.0

250100242

Unavailable

860

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

861

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

870

Cargo Rear Support

708301698

$90.00

880

Panel Nut M6 X 1.0

250100208

$1.07

890

Torx Truss M8 X 16

250000881

$1.74

891

Tuflok Plastic Rivet

293150230

$1.21

905

Lanyard | Included 905 to 905d

708002532

$23.00

905d

Cord Decal

704905127

Unavailable

905f

Tuflok Plastic Rivet

293150230

$1.21

905g

Torx Truss Screw M6 X 20

250000350

$4.39

905h

Flat Washer M6, Stainless

234062600

$0.64

905j

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
