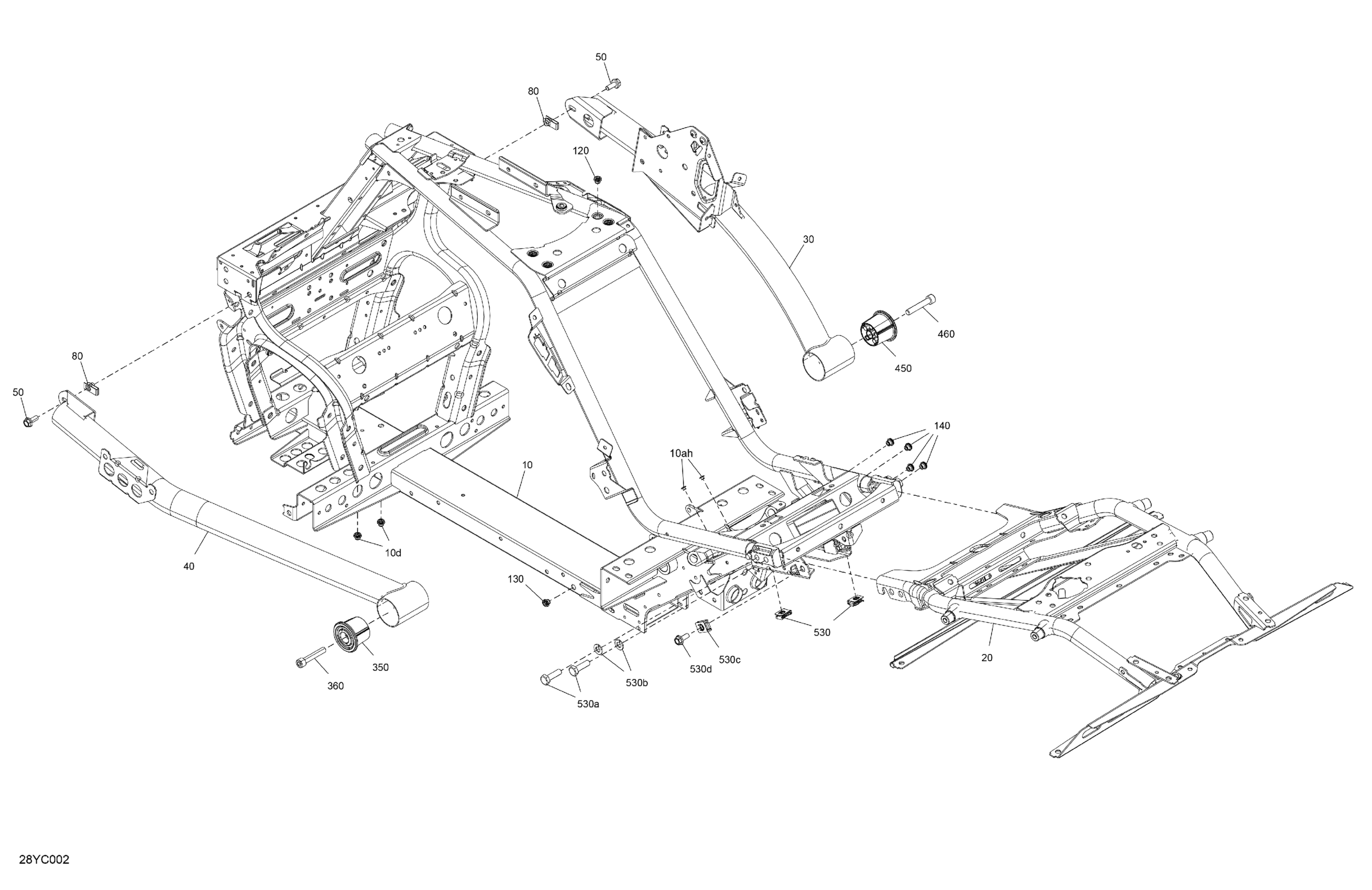

Can-Am F3 T - Pearl White, 2023 Frame - System Diagram

#

Description
Price

10

Chassis | Included 10 to 10ag

705210350

Unavailable

10d

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10ah

Pop Rivet 3/16"

390402200

$0.26

20

Kit Frame Extension

219800411

$560.00

30

Carbon Black, RH Upper Lateral Support

705204607

$350.00

40

Carbon Black, LH Upper Lateral Support

705204612

$210.00

50

Hex Screw Washer Head M8 X 20

207582054

$2.61

80

Panel Nut M8 X 1.25

250100118

$1.63

120

Insert Half Hex Body M6 x 1.0

250100199

$2.54

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

140

Insert Half Hex Body M6 x 1.0

250100199

$2.54

350

Pivot Cap

705010202

$23.00

360

Socket Head Screw

205505560

$7.00

450

Pivot Cap

705010202

$23.00

460

Socket Head Screw

205505560

$7.00

530

Panel Nut M6 X 1.0

250100208

$1.07

530a

Hex. Screw M10 x 35 (Scotch Grip)

207303544

$1.65

530b

Lock Washer Helical M10

234101411

$0.22

530c

Panel Nut M8 X 1.25

250100069

$4.00

530d

Hex Screw Washer Head M8 X 20

207582054

$2.61
