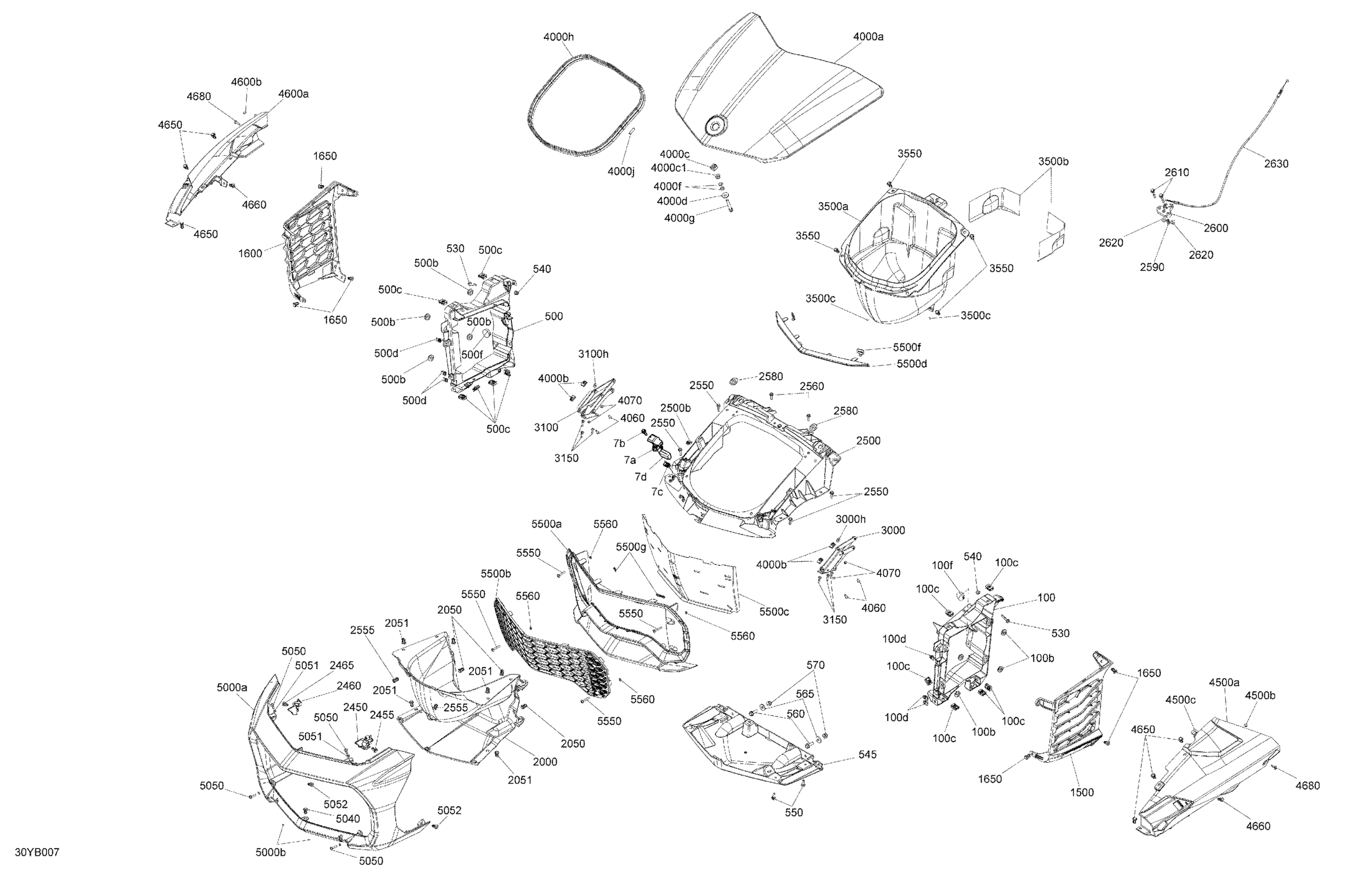

Can-Am F3 S - Special Series - Manta Green, 2022 Body - Front Storage Tray Diagram

#

Description
Price

7a

Pressure And Temperature Sensor

707000995

$88.99

7b

Hex. Flange Screw M6 X 25

207662554

$1.48

7c

Panel Nut M6 X 1.0

250100198

$2.11

7d

Foam Filter

707000586

$5.50

100

LH Breakaway Lateral Tower Leg | Includes 100 to 100f

708200437

$78.99

100b

Grommet

709000582

$4.69

100c

Panel Nut M6 X 1.0

250100208

$1.46

100d

Panel Nut M5 X 0.8

250000958

$4.23

100f

Black, Nylon Cap

414916600

$4.69

500

RH Breakaway Lateral Tower Leg | Includes 500 to 500f

708200438

$78.99

500b

Grommet

709000582

$4.69

500c

Panel Nut M6 X 1.0

250100208

$1.46

500d

Panel Nut M5 X 0.8

250000958

$4.23

500f

Black, Nylon Cap

414916600

$4.69

530

Hex. Flange Screw M6 X 30

207663054

$4.44

540

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

545

Front Skid Plate

708200405

$29.99

550

Hex. Flange Screw M6 X 20

207662044

$2.00

560

Hex. Flange Screw M8 X 25

207682544

$1.35

565

Flat Washer M8

234082430

$2.11

570

Hex. Flange Elastic Nut M8

233281434

$2.11

1500

LH Side Vent

708200860

$34.99

1600

RH Side Vent

708200859

$34.99

1650

Tuflok Plastic Rivet

293150230

$1.47

2000

Front Air Duct Module

708200362

$88.99

2050

Tuflok Plastic Rivet

293150230

$1.47

2051

Tuflok Plastic Rivet

293150230

$1.47

2450

LH Front Union Link

708200493

$9.69

2455

Tuflok Plastic Rivet

293150230

$1.47

2460

RH Front Union Link

708200494

$9.69

2465

Tuflok Plastic Rivet

293150230

$1.47

2500

Sub-Frame Type Structure | Includes 2500 to 2500b

708200446

$78.99

2500b

Panel Nut M5 X 0.8

250000958

$4.23

2550

Hex. Flange Screw M6 X 20

207662044

$2.00

2555

Tuflok Plastic Rivet

293150230

$1.47

2560

Hexagonal Head Screw

210262050

$2.11

2580

Oval Washer

705000321

$5.61

2590

Spring

705003911

$3.99

2600

Latch

705007379

$28.99

2610

Hex. Flange Screw M6 X 35

207663544

$0.90

2620

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2630

Hood Cable

517305742

$42.99

3000

LH Hood Hinge | Includes 3000 to 3000h

708200673

$91.99

3000h

Flat Washer M5

234051670

$2.11

3100

RH Hood Hinge | Includes 3100 to 3100h

708200674

$91.99

3100h

Flat Washer M5

234051670

$2.11

3150

Torx Truss Screw M5 X 16, T25

250000578

$2.11

3500a

Front Storage Bin

708200957

$69.99

3500b

Heat Shield Sheet

708200490

Unavailable

3500c

Stopper

705006633

$8.49

3550

Tuflok Plastic Rivet

293150230

$1.47

4000a

Manta Green, Hood

708201237

$539.99

4000b

Panel Nut M5 X 0.8

250000958

$4.23

4000c

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

4000c1

Hex. Elastic Nut M8 Brass

232581200

$2.22

4000d

Flat Washer 8 mm

234082410

$1.47

4000f

Hex. Jam Nut M8

232180600

$0.67

4000g

Lug

705002223

$25.99

4000h

Neoprene Seal 3000Mm Long

219704371

$51.99

4000j

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

4060

Torx Truss Screw M5 X 16, T25

250000578

$2.11

4070

Flat Washer M5

234051670

$2.11

4500a

Manta Green, LH Front Fairing

708201238

$214.99

4500b

Polyurethane Stopper

705006634

$4.76

4500c

Rubber Pad

293830143

$18.49

4600a

Manta Green, RH Front Fairing

708201239

$214.99

4600b

Polyurethane Stopper

705006634

$4.76

4650

Tuflok Plastic Rivet

293150230

$1.47

4660

Tuflok Plastic Rivet

293150230

$1.47

4680

Torx Truss Screw M5 X 20

250000715

$2.11

5000a

Manta Green, Front Fascia

708201236

$509.99

5000b

Stopper

705006633

$8.49

5040

Tuflok Plastic Rivet

293150230

$1.47

5050

Torx Truss Screw M5 X 20

250000715

$2.11

5051

Flat Washer M5

234051670

$2.11

5052

Tuflok Plastic Rivet

293150230

$1.47

5500a

Molded Frame

705009339

$72.99

5500b

Front Grille

705009340

$55.99

5500c

Grille

708200937

$56.99

5500d

Black, Grille Trim

705009952

$17.99

5500f

Mounting Plate

705010273

$9.53

5500g

Flat Clip

705004838

$7.73

5550

Torx Screw Nylon

250000732

$2.11

5560

Flat Washer M5

234051670

$2.11
