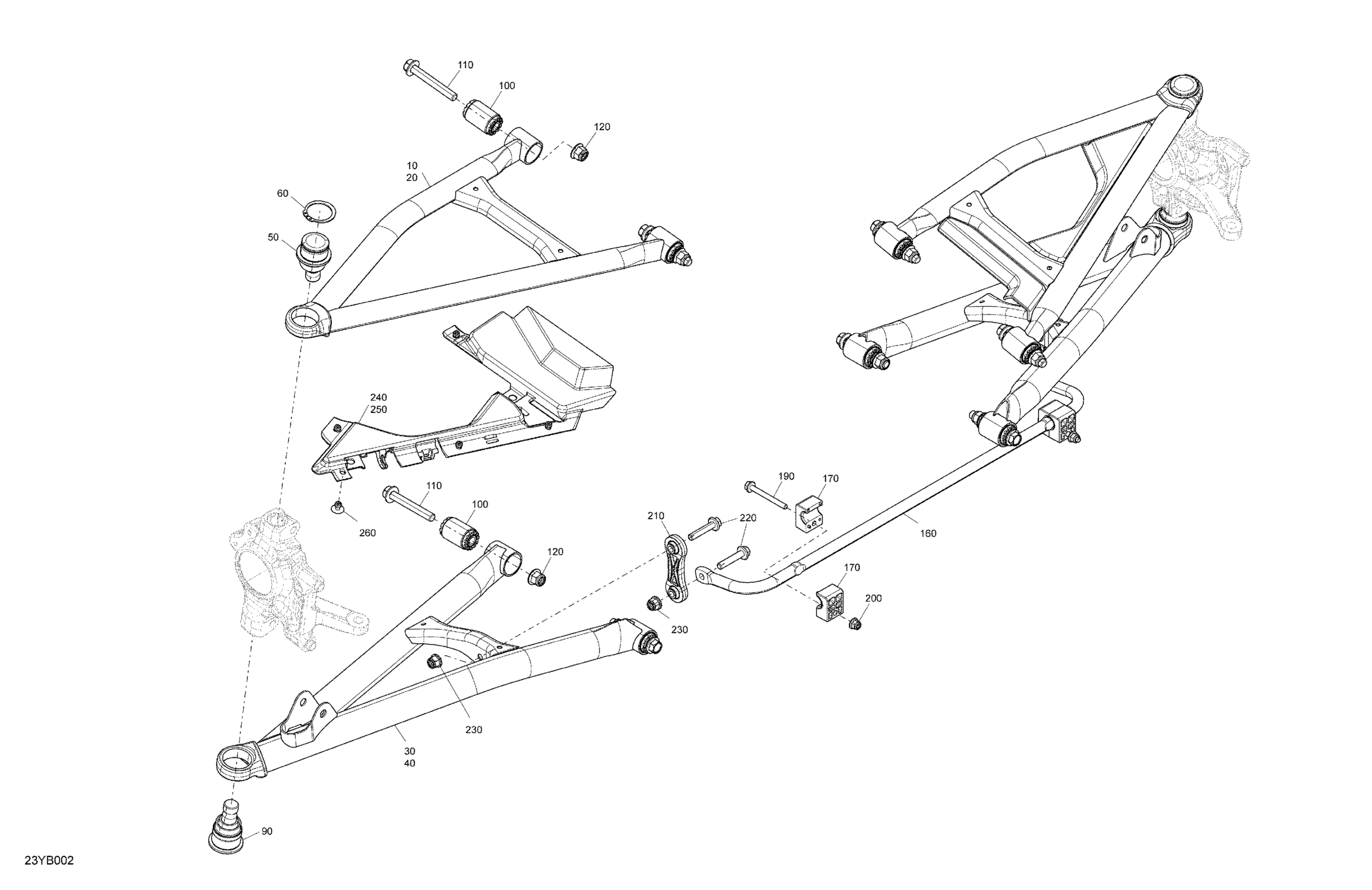

Can-Am F3 S - Special Series - Manta Green, 2022 Suspension - Front Diagram

Description

Price

Carbon Black, LH Upper Suspension Arm

706204681

$158.99

Carbon Black, RH Upper Suspension Arm

706204685

$158.99

Carbon Black, LH Lower Suspension Arm

706201990

$158.99

Carbon Black, RH Lower Suspension Arm

706201991

$158.99

Ball Joint

706202507

$61.99

Circlip

293370035

$2.64

Ball Joint

706202508

$42.49

100

Suspension Arm Bushing

706201519

$13.76

110

Hex. Flange Screw M10 X 70

207607056

$4.29

120

Flange Elastic Nut M10

233201466

$3.17

160

Sway Bar

706202799

$90.99

170

Bushing

706201429

$10.01

190

Hex. Flange Screw M6 X 60

250000778

$4.44

200

Hex. Flange Elastic Nut M6

233261466

$2.00

210

Tie Rod

706200671

$20.99

220

Hex. Flange Screw M8 X 40

207684054

$2.11

230

Elastic Flange Nut M8

233281464

$1.01

240

LH Cable Cap

706203371

$13.99

250

RH Cable Cap

706203372

$13.99

260

Pop Rivet 3/16"

293150103

$0.55
