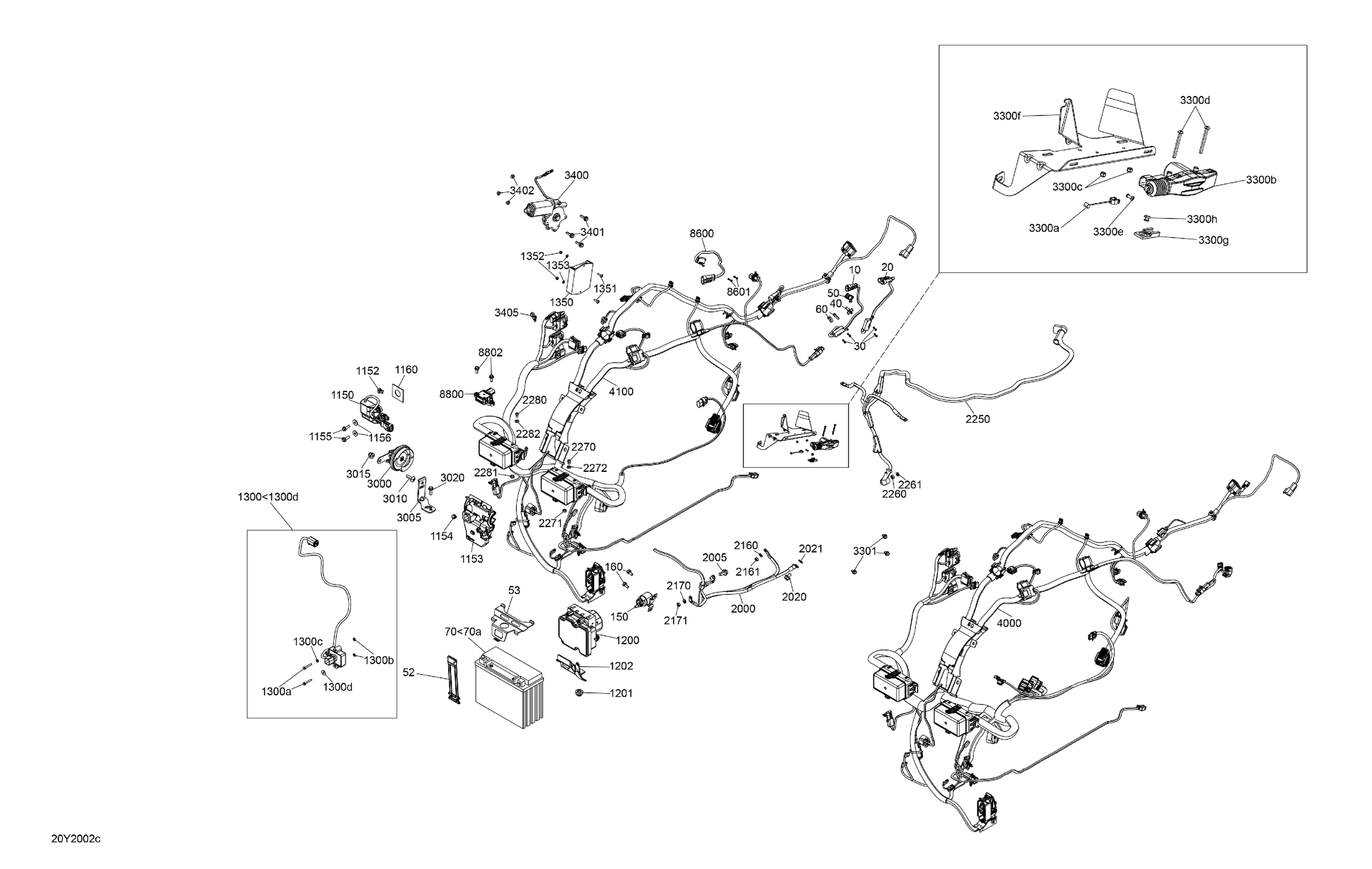

Can-Am F3 S SM6 - Monolith Black Satin, 2021 Electrical System Frame Diagram

#

Description
Price

10

Brake Light Switch Ass'y

710003412

$46.49

20

Brake Pressure Switch Ass'y

710001379

$43.49

30

Pop Rivet

293150150

$2.40

40

Tie-Rap 173 mm

293750009

$1.04

50

Clip Tie-Rap

710002899

$8.49

52

Latch

520000528

$7.69

53

Battery Holder

710002893

$17.49

60

Tie Wrap 142 mm

293750002

$1.25

70<70a

Battery, 12 Volts, 21 Amperes

410922962

$194.99

70a

Battery Bolt Kit

250000282

$7.29

150

Starter Relay

710007777

$48.49

160

Hex. Flange Screw M6 X 12

210261250

$1.90

1150

Dess Module

710004916

$179.99

1152

Tie-Rap 173 mm

293750009

$1.04

1153

Wire Support

710004308

$13.49

1154

Hex. Forming Screw M6 X 10

210261050

$1.69

1155

Hexagonal Head Screw

210262050

$2.11

1156

Flat Washer 6 mm

234062410

$0.77

1160

Rubber Bumper

293830091

$8.29

1200

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,209.99

1201

Shock Damper

710003279

$10.49

1202

VCM Harness Protector

710003996

$2.79

1300<1300d

CCK Module Ass'y | Includes 1300 to 1300d

710006467

$194.99

1300a

Hex. Screw Forming M4 X 30

250000955

$0.90

1300b

Push Nut | Not shown

211100002

$2.19

1300c

Flat Washer, Emhart

213200016

$0.72

1300d

Flat Washer 5 mm, Stainless

234052400

$2.85

1350

PBM Module Ass'y

710005887

$479.99

1351

Torx Screw M4 X 16

250000750

$1.68

1352

Elastic Stop Nut M4

232541484

$0.74

1353

Flat Washer 4 mm

234041480

$0.74

2000

Starter Cable Ass'y

710006399

$84.99

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

2021

Serrated Lock Washer 8 mm

234481608

$1.15

2160

Stainless Flat Washer M6

234061600

$0.33

2161

Elastic Stop Nut M6

232561434

$1.99

2170

Lock Washer Helical M6

234161601

$1.15

2171

Hex. Nut M6

232061600

$1.15

2250

Pos Cable

710005026

$84.99

2260

Hex. Nut M6

232061600

$1.15

2261

Lock Washer Helical M6

234161601

$1.15

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2271

Hex. Nut M6

232061600

$1.15

2272

Lock Washer Helical M6

234161601

$1.15

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2281

Hex. Nut M6

232061600

$1.15

2282

Lock Washer Helical M6

234161601

$1.15

3000

Horn

710004940

$29.49

3005

Horn Support

710005769

$15.99

3010

Torx Truss M8 X 25

250000874

$2.11

3015

Hex. Flange Elastic Nut M8

233281414

$1.47

3020

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

3300a

Reverse Cable

710002889

$31.99

3300b

Actuator

710011269

$64.99

3300c

Elastic Stop Nut M4

232541414

$0.58

3300d

Socket Head Screw M4 X 40

205444056

$2.11

3300e

Pop Rivet 5/32

390403000

$0.40

3300f

Reverse Actuator Support

710005642

$30.99

3300g

Clip

270000141

$11.49

3300h

Pop Rivet 3/16"

390402400

$0.35

3301

Hex. Flange Screw M6 X 12

210261250

$1.90

3400

Control Gear Motor

710002756

Unavailable

3401

Hex. Flange Screw M6 X 20

207662054

$1.01

3402

Elastic Stop Nut M6

232561434

$1.99

3405

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

4000

Chassis Wiring Harness | Not Shown

710007540

$889.99

4000

Chassis Wiring Harness | Models China

710007684

$939.99

4100

Main Harness | Models SM6

710005448

$889.99

8600

Brake Pressure Switch Ass'y

710001379

$43.49

8601

Pop Rivet

293150150

$2.40

8800

Yaw Rate Sensor

710005658

$179.99

8802

Hex. Flange Screw M6 X 16

210261650

$1.67
