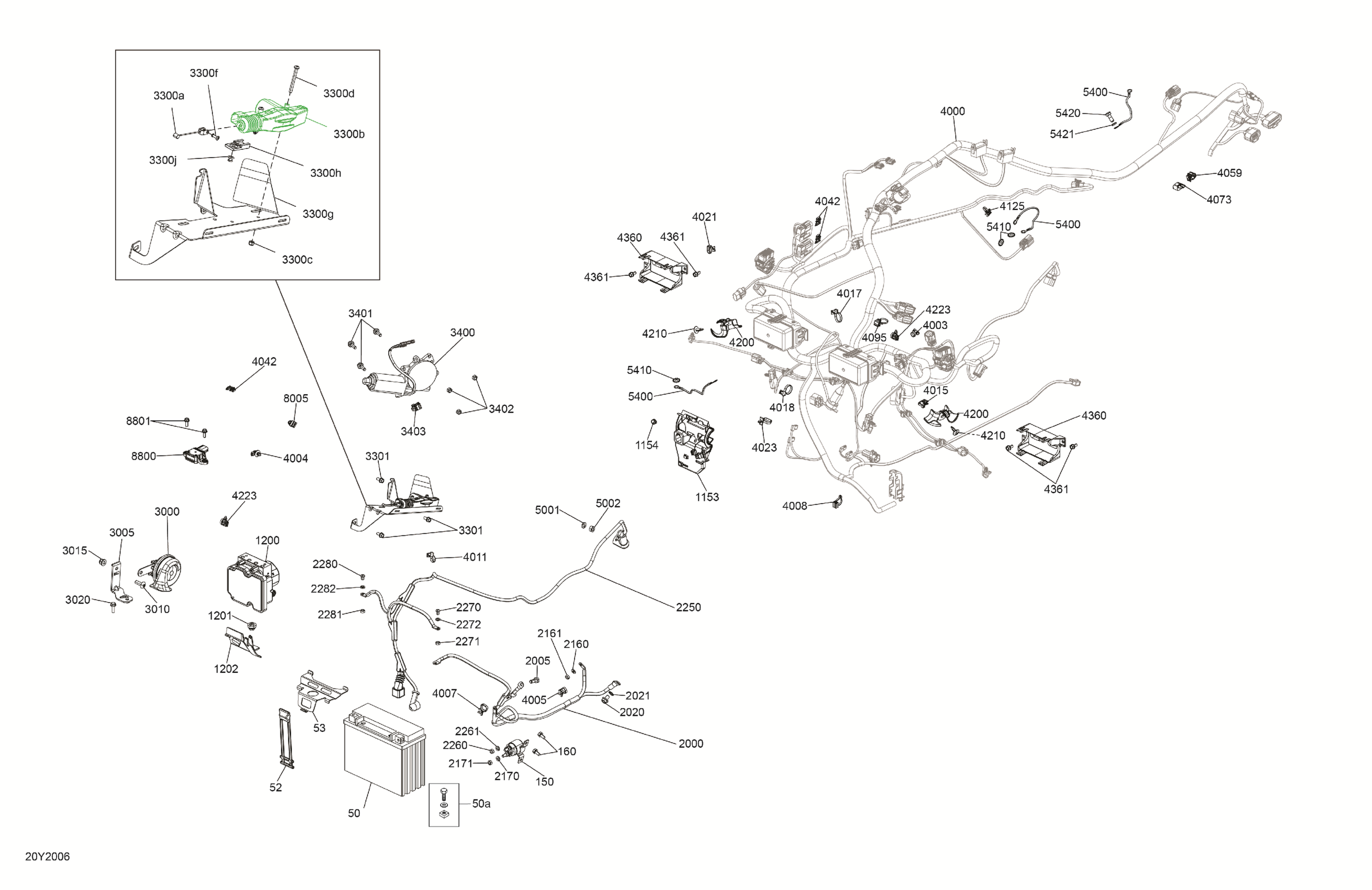

Can-Am F3 LIMITED - Chrome Edition - Steel Black Metallic, 2021 Electrical System - Frame Diagram

#

Description
Price

50<50a

Battery, 12 Volts, 21 Amperes

410922962

$194.99

50a

Battery Bolt Kit

250000282

$7.29

52

Latch

520000528

$7.69

53

Battery Holder

710002893

$17.49

150

Starter Relay

710007777

$48.49

160

Hex. Flange Screw M6 X 12

210261250

$1.90

1153

Wire Support

710004308

$13.49

1154

Hex. Forming Screw M6 X 10

210261050

$1.69

1200

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,209.99

1201

Shock Damper

710003279

$10.49

1202

VCM Harness Protector

710003996

$2.79

2000

Starter Cable Ass'y

710006399

$84.99

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

2021

Serrated Lock Washer 8 mm

234481608

$1.15

2160

Stainless Flat Washer M6

234061600

$0.33

2161

Elastic Stop Nut M6

232561434

$1.99

2170

Lock Washer Helical M6

234161601

$1.15

2171

Hex. Nut M6

232061600

$1.15

2250

Pos Cable

710005026

$84.99

2260

Hex. Nut M6

232061600

$1.15

2261

Lock Washer Helical M6

234161601

$1.15

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2271

Hex. Nut M6

232061600

$1.15

2272

Lock Washer Helical M6

234161601

$1.15

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2281

Hex. Nut M6

232061600

$1.15

2282

Lock Washer Helical M6

234161601

$1.15

3000

Horn

710004940

$29.49

3005

Horn Support

710005769

$15.99

3010

Torx Truss M8 X 25

250000874

$2.11

3015

Hex. Flange Elastic Nut M8

233281414

$1.47

3020

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

3300a

Reverse Cable

710002889

$31.99

3300b

Actuator

710011269

$64.99

3300c

Elastic Stop Nut M4

232541414

$0.58

3300d

Socket Head Screw M4 X 40

205444056

$2.11

3300f

Pop Rivet 5/32

390403000

$0.40

3300g

Actuator Support

710010657

$20.99

3300h

Clip

270000141

$11.49

3300j

Pop Rivet 3/16 X ,425

293150293

$0.35

3301

Hex. Flange Screw M6 X 12

210261250

$1.90

3400

Actuator Motor

710007256

$227.99

3401

Hex. Flange Screw M6 X 20

207662054

$1.01

3402

Elastic Stop Nut M6

232561434

$1.99

3403

Tie-Rap Clip

710002896

$4.39

4000

Chassis Wiring Harness | For more
details, see Wiring Harness Chassis

710006504

$939.99

4003

Dart Tie Rap 200MM

710003168

$7.09

4004

Clipping Tie-Rap

710003840

$2.29

4005

Tie-Rap 173 mm

293750009

$1.04

4007

Tie-Rap 173 mm

293750009

$1.04

4008

Clip Tie-Rap

293750063

$8.75

4011

Tie-Rap 173 mm

293750009

$1.04

4015

Clip Tie-Rap | Package North Edition

710005037

$9.17

4017

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

4018

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

4021

Tie-Rap 173 mm

293750009

$1.04

4023

Tie-Rap 173 mm

293750009

$1.04

4042

Lock

710001222

$2.09

4059

Connector Plug

710004903

$2.85

4073

Connector Plug

710004902

$2.85

4095

Clip Tie-Rap

293750063

$8.75

4125

Clip Tie-Rap

293750063

$8.75

4200

Harness Holder

710004931

$1.59

4210

Tuflock Phillips Plastic Screw

414745900

$1.69

4223

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

4360

Fuse Holder Support

710004472

$10.01

4361

Hex. Flange Screw M6 X 12

210261250

$1.90

5001

Lock Washer 8 mm, Stainless

234181601

$0.55

5002

Hex. Nut M8

232081414

$0.72

5400

Tank Cable

710004849

$19.49

5410

Lock Washer Serrated M6

250200041

$1.15

5420

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

5421

Washer

250200111

$2.11

8005

Tie-Rap Clip

710002896

$4.39

8800

Yaw Rate Sensor

710005658

$179.99

8801

Hex. Flange Screw M6 X 16

210261650

$1.67
