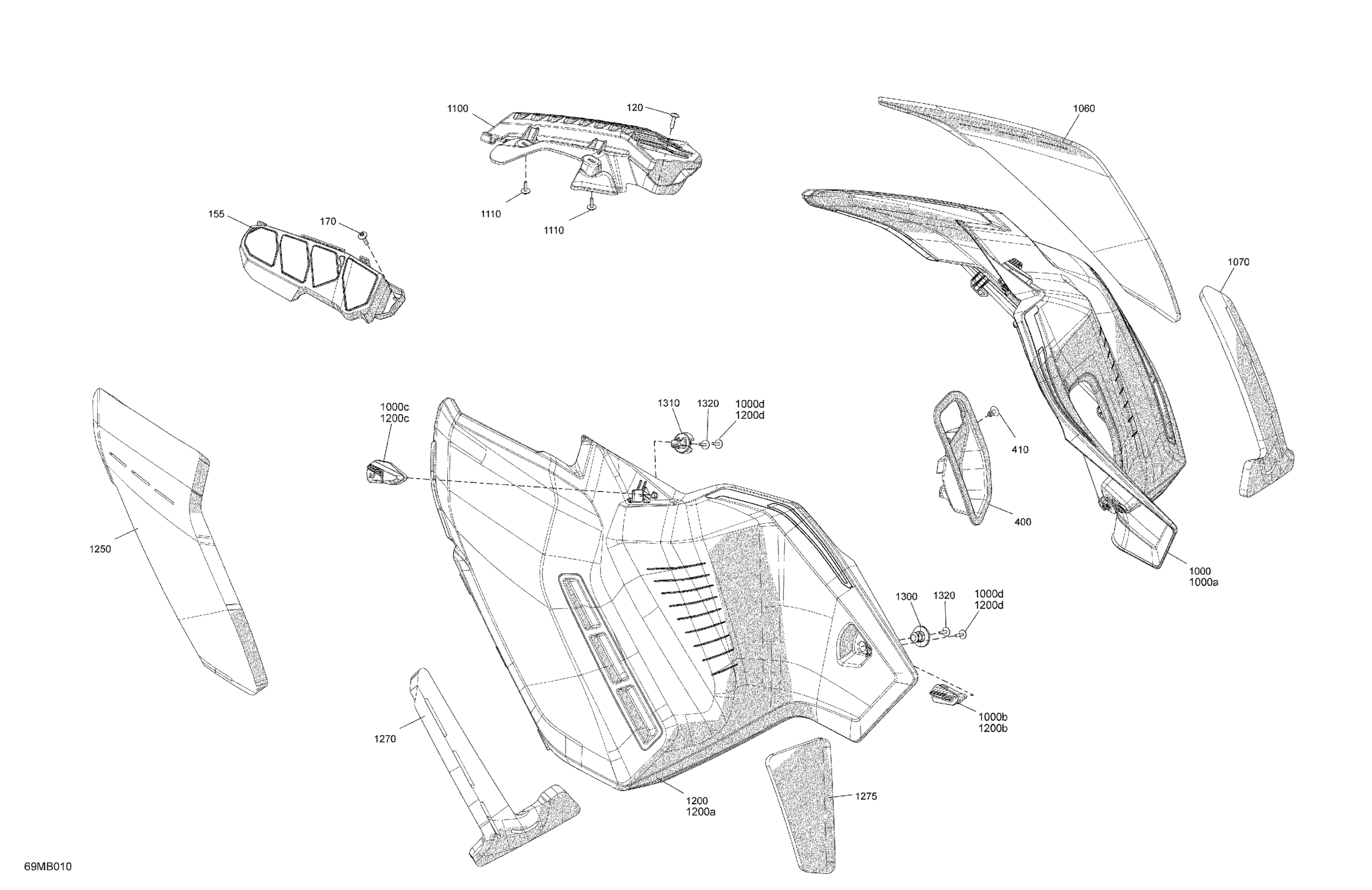

Ski-Doo 003 - EXPEDITION SPORT 900 ACE - North America, 2022 07- Body - Side Panels Diagram

Description

Price

120

Torx Screw M5 X 20

250000528

$2.11

155

LH Hood Trim

517306690

$31.99

170

Torx Screw M5 X 20

250000528

$2.11

400

Reverse Lever Trim

517306302

$6.29

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1000

Deep Black, RH Panel Ass'y | Includes 1000 to 1000d

517306745

Unavailable

1000a

Deep Black, RH Body Panel

517306747

$179.99

1000b

RH Rear Latch

517305773

$18.49

1000c

RH Front Latch

517305979

$16.79

1000d

Screw M4 X 16

250000725

$3.49

1060

RH Front Panel Foam

517306843

$14.49

1070

RH Rear Panel Foam

517306845

$14.49

1100

RH Hood Grille Ass'y

517308292

$81.99

1110

Screw M4 X 16

250000725

$3.49

1200

Deep Black, LH Panel Ass'y | Includes 1200 to 1200d

517306749

Unavailable

1200a

Deep Black, LH Body Panel

517306750

$184.99

1200b

LH Rear Latch

517305774

$18.49

1200c

LH Front Latch

517305980

$18.49

1200d

Screw M4 X 16

250000725

$3.49

1250

LH Front Panel Foam

517306863

$14.49

1270

LH Rear Panel Foam

517306865

$14.49

1275

LH Rear Panel Foam

517306496

$6.99

1300

Rear Stud

517305985

$15.36

1310

Front Stud

517305988

$16.18

1320

Screw M4 X 16

250000725

$3.49
