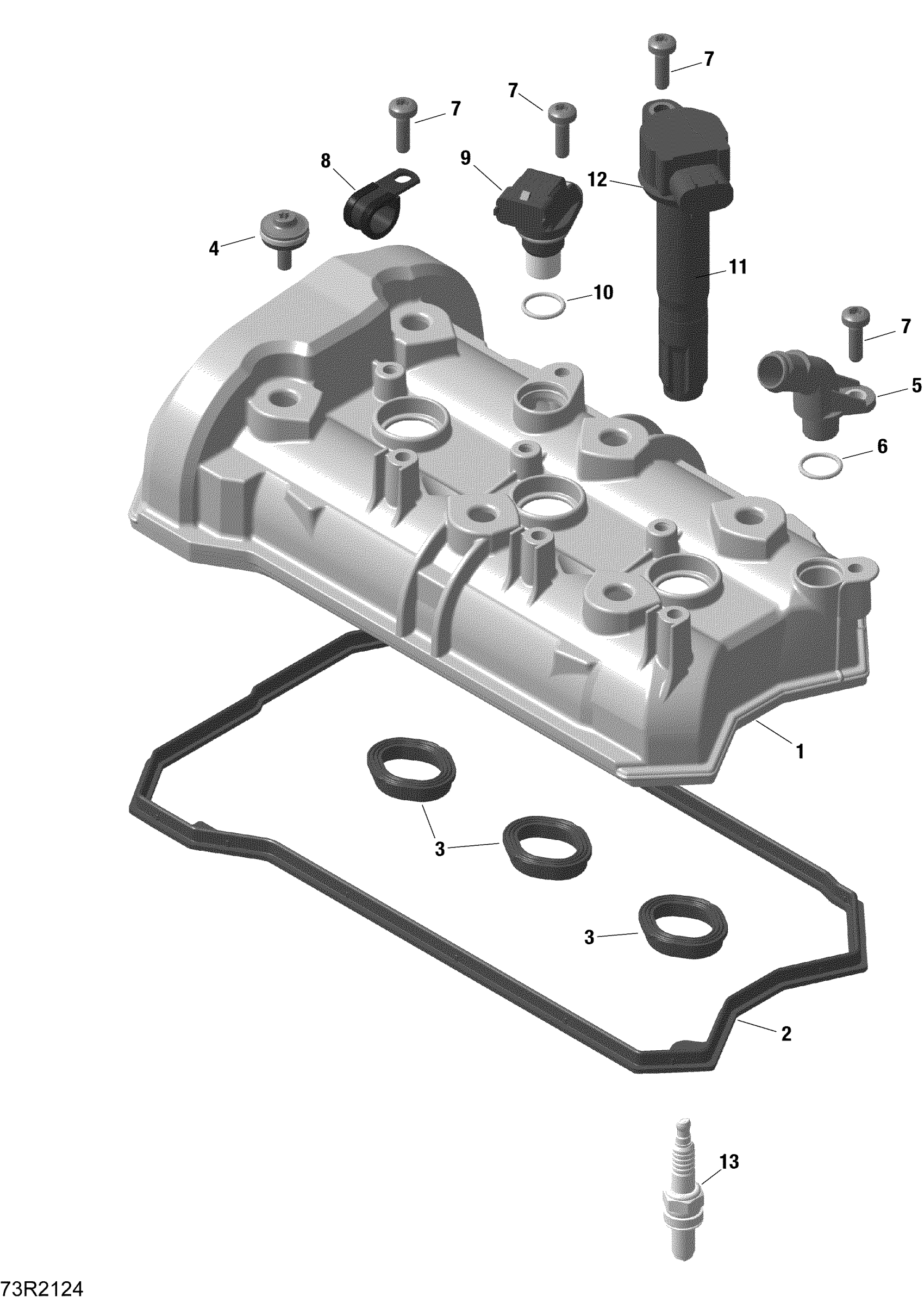

Ski-Doo EXPEDITION SPORT 900 ACE - 2022 Rotax - Valve Cover Diagram

#

Description
Price

1

Valve Cover

420911496

$75.34

1

Valve Cover

420911496

$75.34

2

Valve Cover Gasket

420431801

$18.63

2

Valve Cover Gasket

420431801

$18.63

3

Valve Cover Gasket

420431751

$3.01

3

Valve Cover Gasket

420431751

$3.01

4

Torx Distance Screw M6

420440495

$7.09

4

Torx Distance Screw M6

420440495

$7.09

5

Blow By Connector

420611242

$11.18

5

Blow By Connector

420611242

$11.18

6

O-Ring

420631240

$2.00

6

O-Ring

420631240

$2.00

7

Torx Flange Screw M6 X 20

420441386

$2.00

7

Torx Flange Screw M6 X 20

420441386

$2.00

8

Cable Clamp

420851492

$13.18

8

Cable Clamp

420851492

$13.18

9

Camshaft Position Sensor Ass'y

420664046

$81.31

9

Camshaft Position Sensor Ass'y

420664046

$81.31

10

O-Ring

420631890

$4.87

10

O-Ring

420631890

$4.87

11

Stick Coil | Includes 5 to 6

420666142

$54.45

11

Stick Coil | Includes 5 to 6

420666142

$54.45

12

Protection Cap

420201430

$7.09

12

Protection Cap

420201430

$7.09

13

Spark Plug NGK MR8BI-8 This part replaces 420897093.

415129944

$20.12

13

Spark Plug NGK MR8BI-8 This part replaces 420897093.

415129944

$20.12
