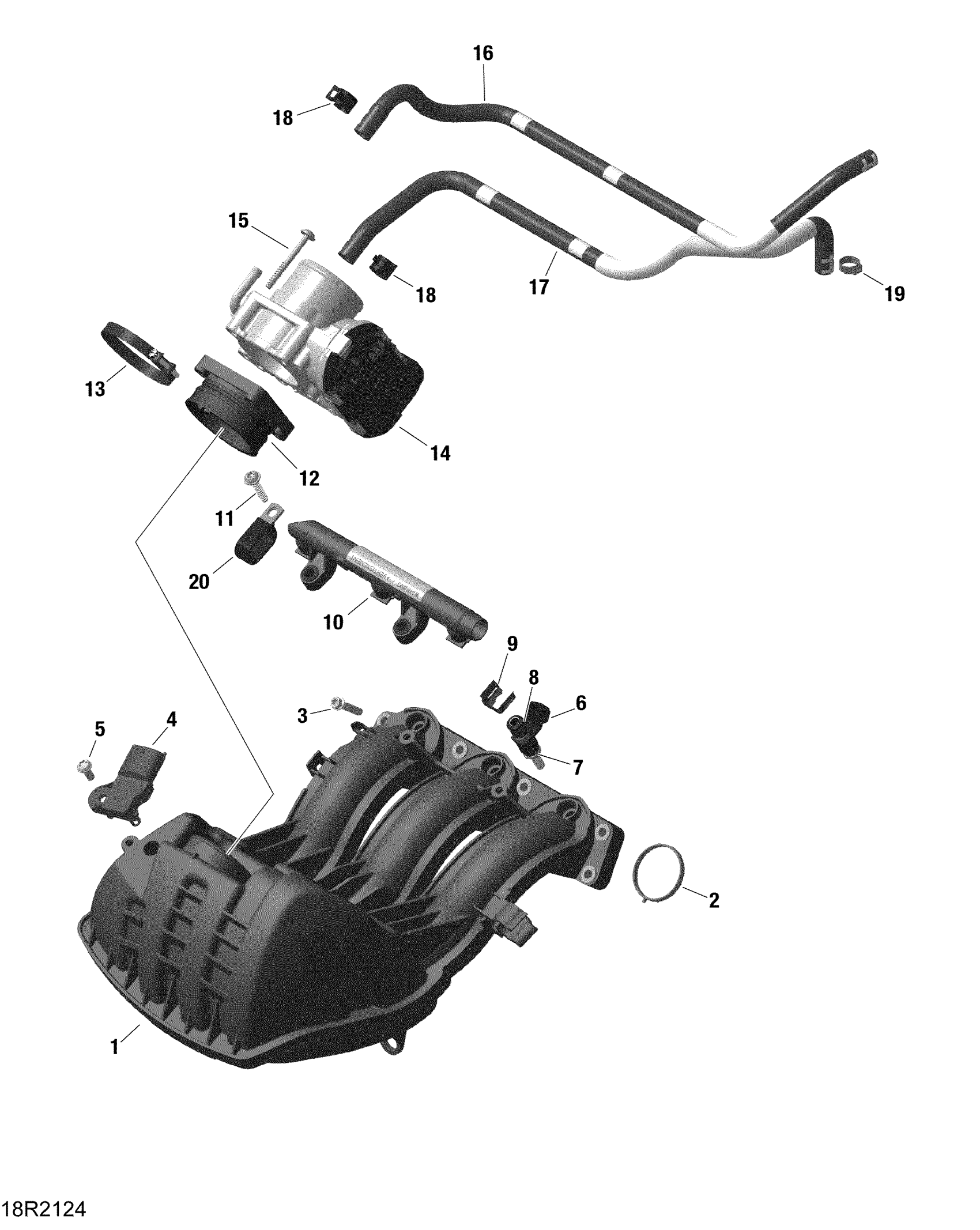

Ski-Doo EXPEDITION SPORT 900 ACE - 2022 Rotax - Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Airbox Ass'y | Includes no. 1-2

420867342

$239.99

2

Gasket | Included in gasket kit

420431662

$10.33

3

Torx Flange Screw M6 X 30

420440647

$2.00

4

Pressure And Temperature Sensor

707000995

$88.99

5

Torx Flange Screw M6 X 16

420641588

$2.11

6

Injection Valve

420874855

$169.49

7

O-Ring

420831050

$20.49

8

O-Ring

420430775

$4.29

9

Injector Clip

420853030

$3.09

10

Fuel Rail

420874966

$14.49

11

Torx Screw 6X30

420441575

$3.06

12

Intake Neck

420867110

$35.99

13

Hose Clamp

420251830

$14.28

14

Throttle Body

420893148

$381.49

15

Torx Flange Screw M6 X 50

420441588

$4.44

16

Molded Hose

420201506

$30.49

17

Molded Hose

420201500

$24.99

18

Clamp

420853511

$7.51

19

Clamp

420853308

$5.39

20

Double Clamp

420951830

$14.22
