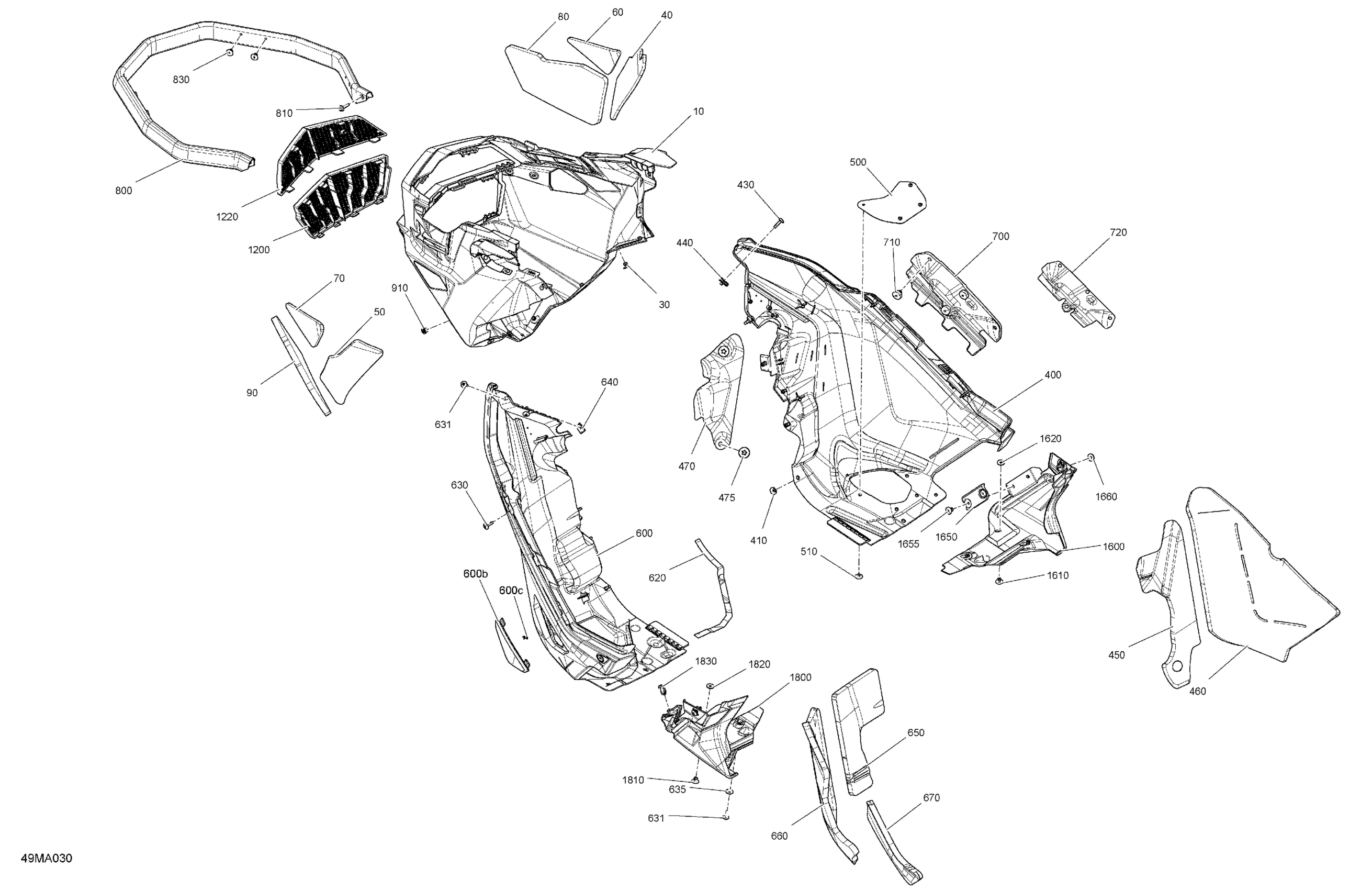

Ski-Doo 003 - EXPEDITION SPORT 900 ACE - North America, 2021 07- Body - Bottom Pan Diagram

#

Description
Price

10

Not Available As Spare Part - Friction Washer

Unavailable

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

40

RH Upper Bottom Pan Foam

502007788

$18.99

50

LH Upper Bottom Pan Foam

502007789

$18.99

60

RH Bottom Pan Central Foam

502007545

$9.59

70

LH Bottom Pan Central Foam

502007546

$13.99

80

RH Lower Bottom Pan Foam

502007800

$20.99

90

LH Lower Bottom Pan Foam

502007799

$7.89

400

RH Bottom Pan

502007737

$134.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

450

RH Front Bottom Pan Foam

502007831

$11.99

460

RH Rear Bottom Pan Foam

502008170

$16.49

470

Heat Shield

502007895

$19.99

475

Push Nut

508000853

$2.09

500

Plate

502007868

$2.19

510

Pop Rivet 3/16"

293150103

$0.55

600

LH Bottom Pan Ass'y | Includes 600 to 600c

502007739

$134.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

630

Torx Truss M5 X 20

250000586

$4.44

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

650

LH Bottom Pan Upper Foam

502007549

$13.99

660

Foam

502008172

$14.49

670

LH Rear Bottom Pan Foam

502008173

$2.29

700

Heat Shield

502008087

$7.09

710

Stopper

502008149

$1.99

720

Reflective Sheet

502008156

$4.79

800

Front Bumper

502007754

$174.49

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

910

Panel Fastener

518321954

$7.69

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Prefilter Grille

502007980

$22.99

1600

RH Bottom Pan Panel

502007871

$56.99

1610

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1620

Washer

517124300

$0.19

1650

Stopper

502007757

$4.69

1655

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1660

Washer

517124300

$0.19

1800

LH Panel

502007872

$56.99

1810

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1820

Washer

517124300

$0.19

1830

Tuflok Plastic Rivet

293150230

$1.47
