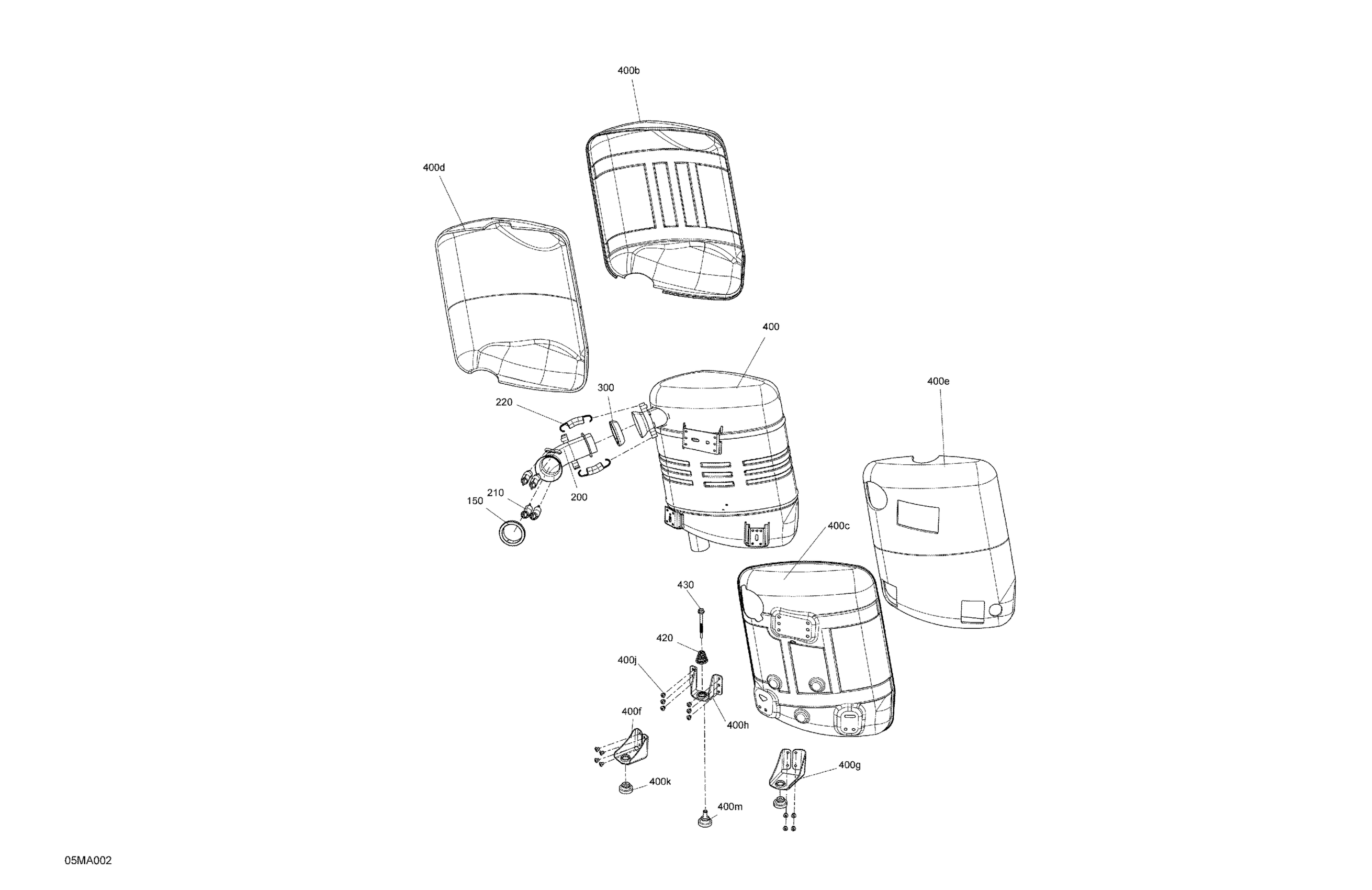

Ski-Doo EXPEDITION SPORT 900 ACE - 2021 Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

707601033

$13.77

200

Pipe

514055475

$402.99

210

Spring

707601834

$6.35

220

Spring

514055198

$6.35

300

Exhaust Gasket

707601033

$13.77

400

Exhaust Muffler Ass'y | Includes 400 to 400n

514056372

$1.00

400b

RH Deflector

514055981

$53.99

400c

LH Deflector

514056061

$63.99

400d

RH Wool

514055711

$24.49

400e

LH Wool

514056021

$8.29

400f

Front Muffler Support

514056022

$5.39

400g

Rear Muffler Support

514056038

$6.39

400h

Support

514056055

$6.39

400j

Pop Rivet 3/16"

390402200

$0.35

400k

Stopper

514055203

$20.49

400m

Stopper Ass'y

514056138

$13.22

420

Spring

514055282

$6.35

430

Hex. Flange Screw M6

250000926

$1.01
