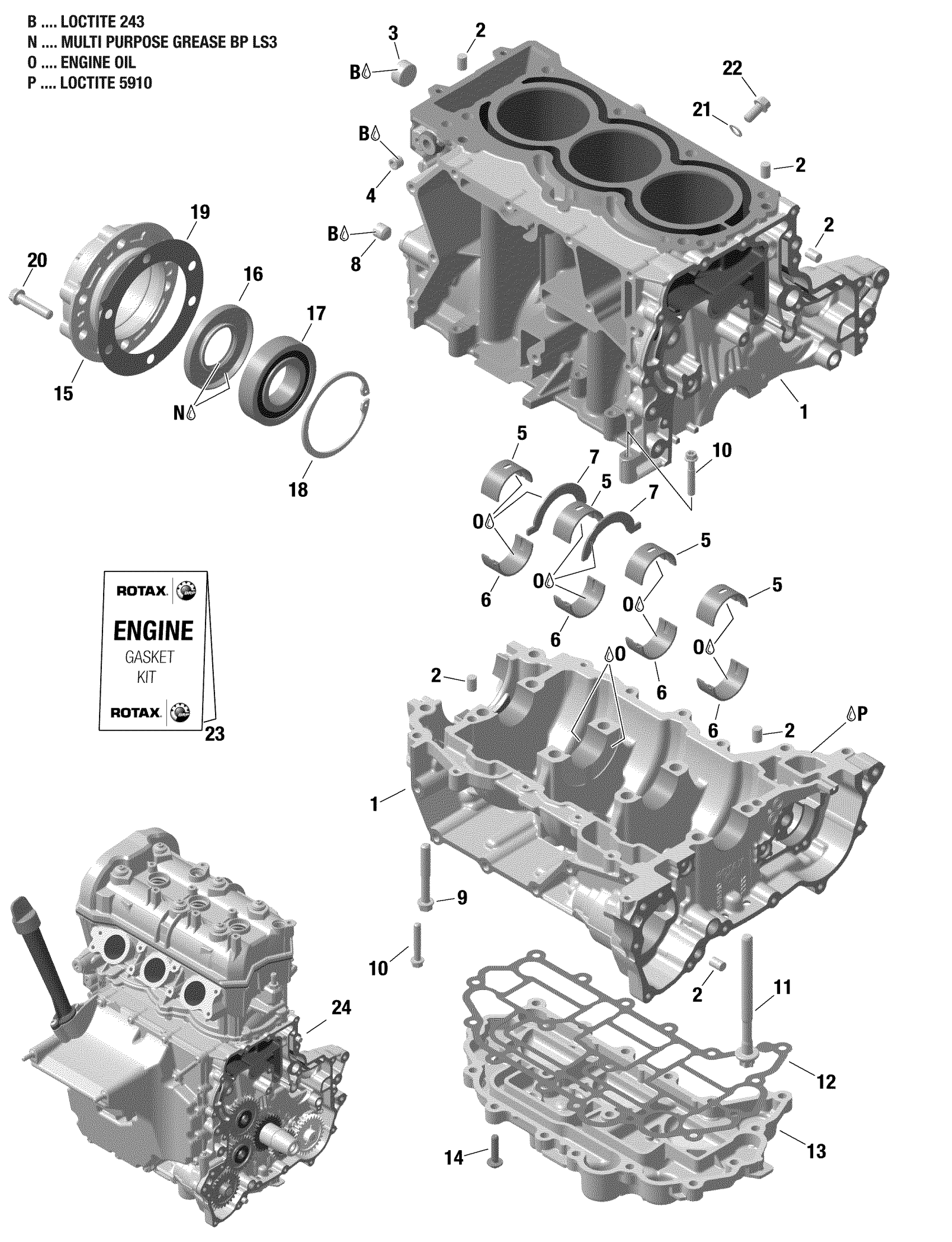

Ski-Doo EXPEDITION SPORT 900 ACE - 2020 Engine - Crankcase - 900 ACE Diagram

#

Description
Price

1>6

Engine Block Ass'y | Includes no. 1-6

420893138

$2,057.43

2

Center Pin 8 X 12

420632010

$3.52

3

Plug Screw M20 X 1.5

420641317

$12.15

4

Plug Screw M10 X 1

420641323

$13.18

5

Cushion

420933180

$16.39

6

Cushion

420933185

$17.13

7

Ring Half

420933140

$10.21

8

Threaded Pin

420840500

$6.07

9

Torx Flange Screw M8 X 55

420641213

$7.01

10

Torx Flange Screw M6 X 35

420440274

$0.96

11

Torx Flange Screw M9 X 113

420940945

$11.96

12

Gasket

420431820

$14.90

13

Oil Sump

420912380

$98.99

14

Torx Flange Screw M6 X 25

420841549

$1.91

15>18

PTO Cover | Includes no. 15-18

420911845

$98.48

16

Oil Seal

420431402

$17.88

17

Ball Bearing

420832232

$10.96

18

Retaining Ring

420845790

$7.09

19

PTO Cover Gasket

420450080

$6.07

20

Torx Flange Screw M8 X 35

420641188

$7.01

21

Sealing Ring

420950141

$1.88

22

Torx Flange Screw M8 X 16

420440852

$3.88

23

Engine Gasket Set

420686236

$541.76

24

Long Block 903

420090302

$4,103.99
