Description

Price

10

Indicator

515178369

$518.43

10a

Lens | XTP

415129349

$23.05

12

Button

515178326

$14.02

60

Support

515177866

$17.66

70

Screw M4 X 16

250000725

$2.87

600

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

610

Safety Nut (DESS Switch)

278002963

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

800

Heated Visor Wiring Harness

515178645

$36.12

810

Cap

572103300

$9.65

1400

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

1410

Monobolt Rivet 6.4

293150182

$2.91

2400

LH Switch Housing

515178102

$266.12

2410

Housing Plate

515177147

$17.66

2420

Torx Screw

250000671

$0.83

2470

Braided Sleeve

415130141

$56.12

3000

Chassis Wiring Harness | Includes 3000 to 3000c

515178556

$292.28

3005

Hex. Flange Screw M6 X 16

250001062

$1.43

3110

Switch Ass'y

515177460

$47.99

3115

Hex Screw M3 X 20

207132044

$2.06

3118

Flat Washer M3, Stainless

234032600

$0.54

3210

4 Circuits Female Housing

515178177

$11.89

3211

Coil Connector

515178202

$12.88

3250

Rocket Switch

515178501

$19.20

3600

Ground Wire

515178338

$15.35

3605

Hex. Flange Screw M6 X 16

207661634

$1.74

3607

Elastic Stop Nut M6

232561414

$1.55

3610

Hex. Flange Screw M5 X 16

250000911

$0.70

4090

Starter Relay Support

515178244

$3.37

4091

Pop Rivet 3/16"

293150103

$0.54

4092

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

4100

Starter Relay

278003012

$35.07

4200

Battery Wire

515178336

$44.58

4210

Elastic Stop Nut M6

232561414

$1.55

4240

Elastic Flange Nut M6 X 1.0

233261416

$1.74

4320

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$134.52

4320a

Battery Bolt Kit

250000282

$2.95

4330

Protector Cap | STD

710001817

$10.83

4340

Battery Strip | Includes 4340 to 4340a

515177870

$15.35

4340a

Insert

293450275

$9.89

4370

Hex. Screw M5 X 12

207151244

$0.74

4371

Washer | DS 650 X

391301600

$0.48

4700

Ground Wire

515178155

$25.35

4720

Hex. Flange Screw M6 X 16

207661644

$0.61

4730

Elastic Flange Nut M6 X 1.0

233261416

$1.74

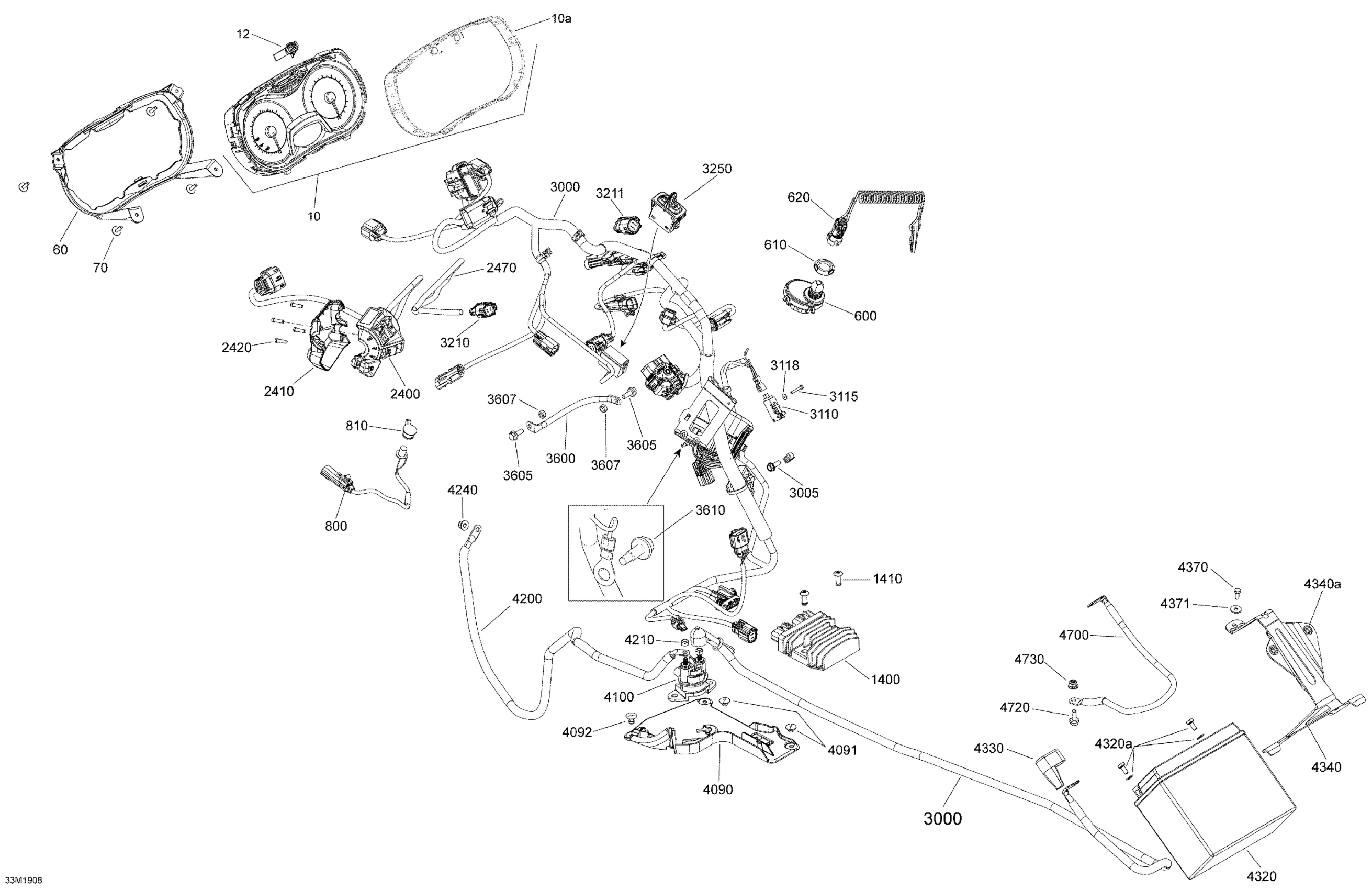

Ski-Doo EXPEDITION SPORT 900 ACE, 2019 Electrical - 900 ACE Diagram

Indicator

Lens | XTP

Button

Support

Screw M4 X 16

Terminal Dess One-Wire | Except Model Europe

Safety Nut (DESS Switch)

Grey, RF Key Ass'y | Includes 620 to 620d

Heated Visor Wiring Harness

Cap

Voltage Regulator | For replacement, refer to service bulletin 2005-5

Monobolt Rivet 6.4

LH Switch Housing

Housing Plate

Torx Screw

Braided Sleeve

Chassis Wiring Harness | Includes 3000 to 3000c

Hex. Flange Screw M6 X 16

Switch Ass'y

Hex Screw M3 X 20

Flat Washer M3, Stainless

4 Circuits Female Housing

Coil Connector

Rocket Switch

Ground Wire

Hex. Flange Screw M6 X 16

Elastic Stop Nut M6

Hex. Flange Screw M5 X 16

Starter Relay Support

Pop Rivet 3/16"

Pop Rivet 3/16" | DS 650 X

Starter Relay

Battery Wire

Elastic Stop Nut M6

Elastic Flange Nut M6 X 1.0

Lead Battery 18 Amperes | Includes 4327 to 4327a

Battery Bolt Kit

Protector Cap | STD

Battery Strip | Includes 4340 to 4340a

Insert

Hex. Screw M5 X 12

Washer | DS 650 X

Ground Wire

Hex. Flange Screw M6 X 16

Elastic Flange Nut M6 X 1.0
