Description

Price

10a

1+1 Seat Base

510006556

$93.99

10b

Seat Foam

510006336

$214.99

10c

Seat Cover

510006337

$241.49

10d

LH Seat Latch

510006530

$7.19

10e

RH Seat Latch

510006531

$7.19

10f

Pop Rivet 3/16"

293150222

$1.29

20

Pin

510006514

$6.69

55

1+1 Seat Strap

510006159

$41.49

60a

Backrest Foam

510006363

$219.99

60b

Backrest Cover

510006364

$236.49

60c

Backrest Support

510006777

$48.99

60d

LH Backrest Support Ass'y | Includes 60c to 60c8

510007208

$249.99

60e

LH Lever | Package Hunter

708200373

$4.02

60f

LH Latch | Package Hunter

708200266

$3.01

60k

LH Cap

510005617

$15.89

60m

LH Base

510006425

$26.49

60n

RH Backrest Support Ass'y | Includes 60d to 60d8

510007209

$249.99

60p

RH Lever

708200374

$4.02

60q

RH Latch | Package Hunter

708200267

$3.01

60r

STEM - Call your local BRP dealership | Package Hunter

708200152

Unavailable

60s

Spring | Package Hunter

708200263

Unavailable

60t

Elastic Flange Nut M5

233251494

$2.11

60u

RH Cap

510005618

$15.89

60v

RH Base

510006427

$26.49

60w

LH Trim

510006704

$20.99

60x

RH Trim

510006705

$20.99

60y

Torx Truss M6X14

250000789

$5.39

60z

Backrest Trim

510006366

$81.99

60aa

Screw M4 X 16

250000889

$3.09

60ab

Flat Washer M8, Stainless

234080600

$1.48

60ac

Screw-Socket HD.DIN.912

205081654

$1.90

60ad

LH Base Cover

510006169

$3.91

60ae

RH Base Cover

510006170

$3.91

60af

Threaded Insert

511000822

$2.09

60ag

Torx-Truss M/S M6 X 25

250001000

$5.29

60ah

1+1 Decal

516005612

Unavailable

140a

LH Ext. Passenger Hand Hold

510006492

$67.99

140b

LH Int. Passenger Hand Hold

510006517

$67.99

140c

Passenger Overmolded Handhold

510006551

$67.99

140e

RH Ext. Passenger Hand Hold

510006486

$67.99

140f

RH Int. Passenger Hand Hold

510006487

$67.99

140g

Passenger Overmolded Handhold

510006551

$67.99

140h

Screw M4 X 16

250000889

$3.09

140j

Passenger Handle Trim

510006602

$13.99

140k

Torx Truss Screw M8 X 35

250000256

$1.15

500

Flat Washer

224061201

$1.37

510

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

520

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

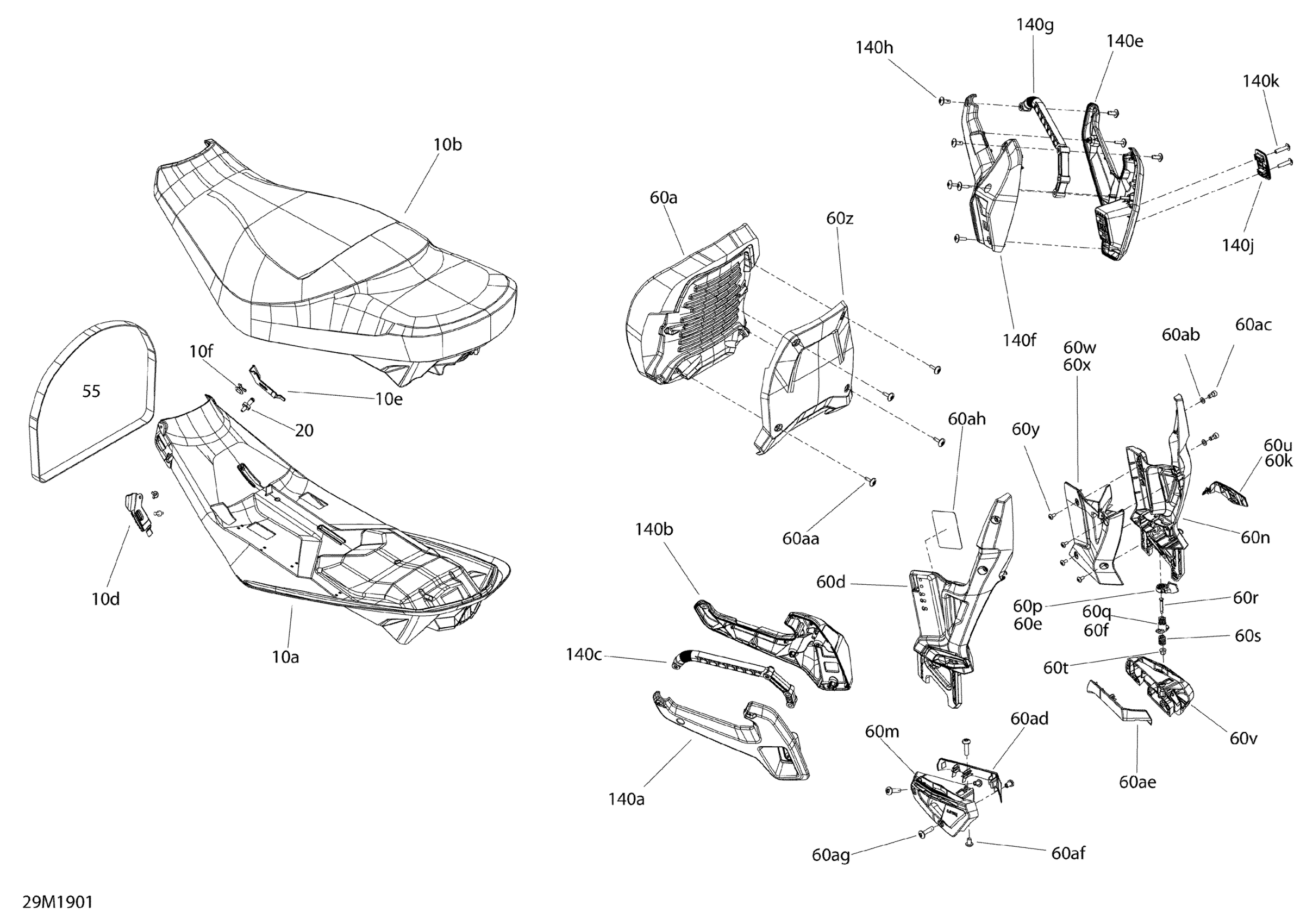

Ski-Doo EXPEDITION SPORT 900 ACE, 2019 Seat - REV GEN4 Diagram

1+1 Seat Base

Seat Foam

Seat Cover

LH Seat Latch

RH Seat Latch

Pop Rivet 3/16"

Pin

1+1 Seat Strap

Backrest Foam

Backrest Cover

Backrest Support

LH Backrest Support Ass'y | Includes 60c to 60c8

LH Lever | Package Hunter

LH Latch | Package Hunter

LH Cap

LH Base

RH Backrest Support Ass'y | Includes 60d to 60d8

RH Lever

RH Latch | Package Hunter

STEM - Call your local BRP dealership | Package Hunter

Spring | Package Hunter

Elastic Flange Nut M5

RH Cap

RH Base

LH Trim

RH Trim

Torx Truss M6X14

Backrest Trim

Screw M4 X 16

Flat Washer M8, Stainless

Screw-Socket HD.DIN.912

LH Base Cover

RH Base Cover

Threaded Insert

Torx-Truss M/S M6 X 25

1+1 Decal

LH Ext. Passenger Hand Hold

LH Int. Passenger Hand Hold

Passenger Overmolded Handhold

RH Ext. Passenger Hand Hold

RH Int. Passenger Hand Hold

Passenger Overmolded Handhold

Screw M4 X 16

Passenger Handle Trim

Torx Truss Screw M8 X 35

Flat Washer

Hex. Screw M6 X 16, Scotch Grip | Europe

Hex. Flange Screw M6 X 30, Scotch Grip
