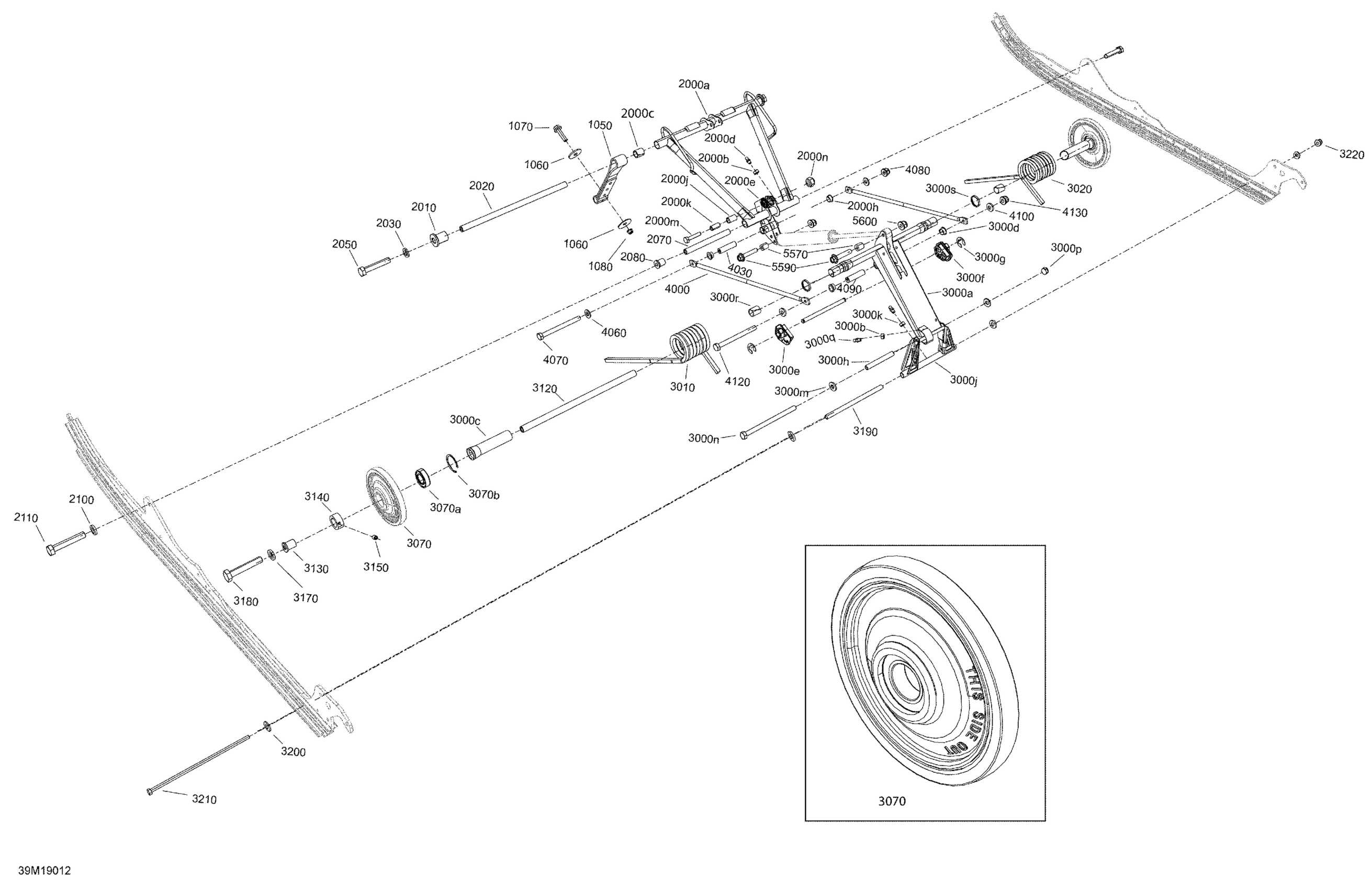

Ski-Doo 003 - EXPEDITION SPORT 900 ACE, 2019 08- Rear Suspension - Sport REV GEN4 - Upper Section Diagram

#

Description
Price

1050

Stopper Strap

503192360

$20.99

1060

Flat Washer 8 mm

250200128

$4.44

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1080

Elastic Flange Nut M8

233281466

$1.01

2000a

Front Arm | Includes 2000a to 2000b

503191752

$370.99

2000b

Hexagonal Nut M6

232061404

$0.34

2000c

Extended Bushing

503191556

$7.83

2000d

Grease Fitting

408200700

$3.49

2000e

Rocker

503192211

$83.99

2000h

Swivel Bushing

503191555

$7.83

2000j

Bushing

503193037

$16.18

2000k

Bushing | Includes 240d to 240d1

503189282

$4.34

2000m

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

2000n

Elastic Locking Nut M10 X 1.5

233601416

$1.69

2010

Bushing

503191262

$15.79

2020

Upper Shaft

503191215

$38.99

2030

Washer

503192496

$0.77

2050

Hex. Screw S.Grip M10 X 55

250000605

$8.11

2070

Lower Shaft

503191279

$28.99

2080

Bushing

503189324

$14.15

2100

Flat Washer

250200143

$3.17

2110

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3000a

Rear Arm | Includes 3000a to 3000a7

503191762

$98.49

3000b

Hexagonal Nut M6

232061404

$0.34

3000c

Bushing

572080700

$17.39

3000d

Swivel Bushing

503191555

$7.83

3000e

LH Cam Adjuster

503191565

$16.49

3000f

RH Cam Adjuster

503191566

$16.49

3000g

E-Circlip

293370013

$0.65

3000h

Upper Axle, Pivot Arm

503144300

$11.65

3000j

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

3000k

Hexagonal Nut M6

232061404

$0.34

3000m

Washer

503189157

$3.28

3000n

Bolt M8, Short

732601197

$15.36

3000p

Hex. Elastic Stop Nut M8

232581414

$0.56

3000q

Grease Fitting

408200700

$3.49

3000r

Extended Bushing

503191556

$7.83

3000s

Washer

503191651

$8.32

3010

Black, LH Spring Square

503192271

$80.49

3020

Black, RH Spring Square

503192270

$80.49

3070

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

3070a

Ball Bearing

503193548

$17.99

3070b

Retaining Ring

415129780

$15.79

3120

Upper Shaft

503191215

$38.99

3130

Bushing

503191262

$15.79

3140

Retaining Ring

503168800

$14.99

3150

Socket Set Screw M6 X 8

206260844

$1.48

3170

Washer

503192496

$0.77

3180

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Link Rod

503191765

$18.49

4030

Axle Bar (Long)

503190643

$17.39

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle Bar (Long)

503190643

$17.39

4100

Washer

503192494

$3.17

4120

Screw M8 X 90

503193372

$4.44

4130

Elastic Flange Nut M8

233281466

$1.01

5570

Bushing

414936000

$13.99

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01

8000

Black, Wheel Cap

503192771

$2.39
