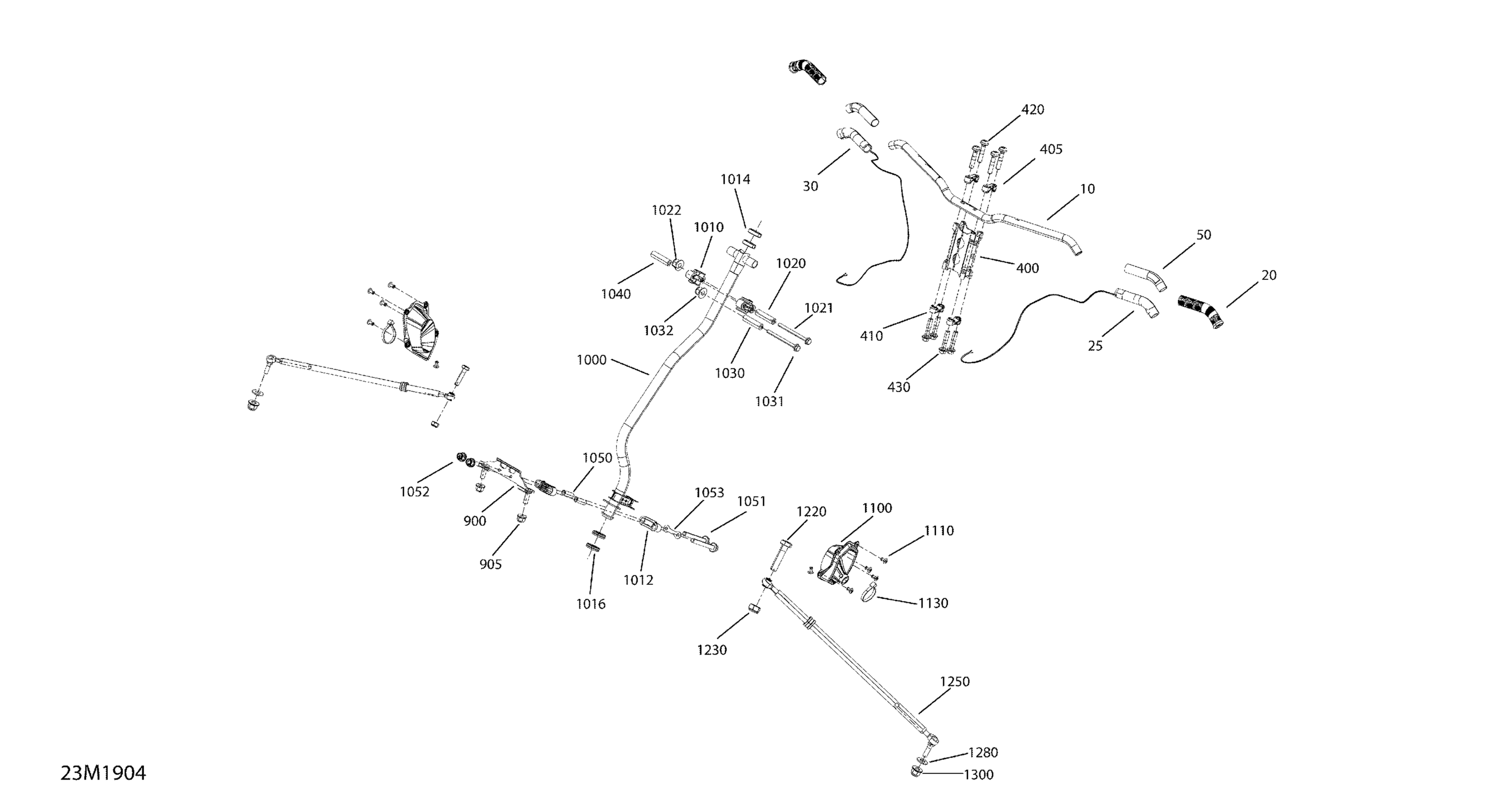

Ski-Doo EXPEDITION SPORT 900 ACE, 2019 Steering - REV GEN4 Diagram

#

Description
Price

10

Aluminum Handle Bar

506152825

$78.43

20

Grip 148mm

506152560

$16.12

25

Heated Film

506152856

$46.12

30

RH 32 Watts Heated Film

506152857

$37.66

50

Thermal Insulation

506153176

$5.71

400

Riser Kit 145

860201718

$69.99

405

Steering Support

506152894

$12.48

410

Steering Support

506152894

$12.48

420

Button Head Torx Screw M8 X 38

250000904

$1.74

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$1.74

900

Support Plate | Includes 900 to 900a

506152787

$35.35

905

Hex. Elastic Flange Nut M8

233281416

$1.25

1000

Main Tube

506153014

$196.12

1010

Upper Half Housing

506152219

$1.68

1012

Lower Half Housing

506153048

$5.57

1014

Upper Vibration Ring

506152292

$0.72

1016

Lower Vibration Ring

506152518

$4.52

1020

Housing Bushing

506152297

$10.23

1021

Hex. Flange Screw M6 X 75

207667554

$3.61

1022

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1030

Housing Bushing

506152297

$10.23

1031

Hex. Flange Screw M6 X 75

207667554

$3.61

1032

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1040

Housing Bushing

506152297

$10.23

1050

Housing Bushing

506152937

$10.23

1051

Hex. Flange Screw M8 X 70

207687044

$6.11

1052

Hex. Elastic Flange Nut M8

233281416

$1.25

1053

Stopper Plate

506152938

$10.23

1100

Cap

506153294

$25.35

1110

Pop Rivet 3/16"

293150008

$0.40

1130

Tie-Rap 180 mm

414115200

$0.09

1220

Hex. Screw M8 X 35

207083544

$0.92

1230

Hex. Elastic Stop Nut M8

232581414

$0.47

1250

Rod Ass'y | Includes 1250 to 1250c

506153056

$78.43

1280

Washer

506152582

$4.42

1300

Hex. Flange Elastic M10 x 1.5

233201464

$6.18
