Description

Price

10a

Black, Ski

505073227

$179.99

10c

Retainer 17mm long

505071812

$5.95

10d

Black, Handle

505072976

$35.99

10e

Retainer 23mm Long

505072133

$6.78

10f

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

10g

Hex. Flange Elastic Nut M8

233281414

$1.47

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

210

Ski Axle

505073691

$14.22

220

Washer

503192496

$0.77

230

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

260

Ski Stopper

505072594

$18.49

300

LH Anodized Ski Leg

505074557

$234.99

310

RH Anodized Ski Leg

505074558

$234.99

320

Leg Bushing

505072690

$12.49

330

Spacer

503193651

$9.69

400

RH Lower Arm

505074085

$204.99

410

LH Lower Arm

505074504

$204.99

420

Bushing

505072208

$3.28

430

Sleeve

505072209

$17.84

440

Wear Plate

505072634

$6.29

445

O-Ring

505072448

$2.32

450

Screw Hex. M10 X 70

250001024

$2.11

455

Screw Hex. M10 X 70

250001024

$2.11

470

Wear Plate

505073723

$6.19

480

Plate

505073844

$2.29

500

LH Upper Arm 39"

505074611

$204.99

510

RH Upper Arm 39"

505074612

$154.99

520

Bushing

505072250

$3.28

530

Sleeve

505072143

$9.00

540

Screw Hex. M10 X 60

250001023

$2.11

545

Hex. Flange Elastic Nut M10

250100165

$0.85

550

Screw Hex. M10 X 60

250001023

$2.11

555

Hex. Flange Elastic Nut M10

250100165

$0.85

660

Washer

503189564

$0.74

670

Washer

505072392

$4.76

680

Hex. Flange Elastic Nut M10

250100165

$0.85

685

Hex. Flange Elastic Nut M10

250100165

$0.85

690

O-Ring

505072448

$2.32

800

Stabiliser

505074719

$65.99

810

Bushing

505072064

$2.32

830

Stabilisator Lever

505073731

$18.49

835

Washer

505072392

$4.76

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

850

Hex. Flange Elastic Nut M6

233261466

$2.00

860

Sway Bar Double Joint Link

505072204

$21.99

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

880

Hex. Flange Elastic Nut M6

233261466

$2.00

1160

Hex. Elastic Flange Nut M8

233281416

$1.48

1170

Hex. Flange Screw M8 X 58

250000824

$2.11

1180

Hex. Flange Screw M8 X 58

250000824

$2.11

1200

Ball Joint

505074009

$54.99

1230

Washer

503192491

$4.54

1240

Hex Elastic Nut M12 X 1.25

232521464

$2.11

1300

Circlip

293370070

$8.99

1400

Upper Ball Joint

505072913

$72.99

1410

Snap Ring

293370098

$3.17

3000

Flat Washer

224061201

$1.37

3010

Black, Wheel Cap

503192771

$2.39

3020

Washer

503192496

$0.77

3030

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

3040

Ski Stopper

505072594

$18.49

3050

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

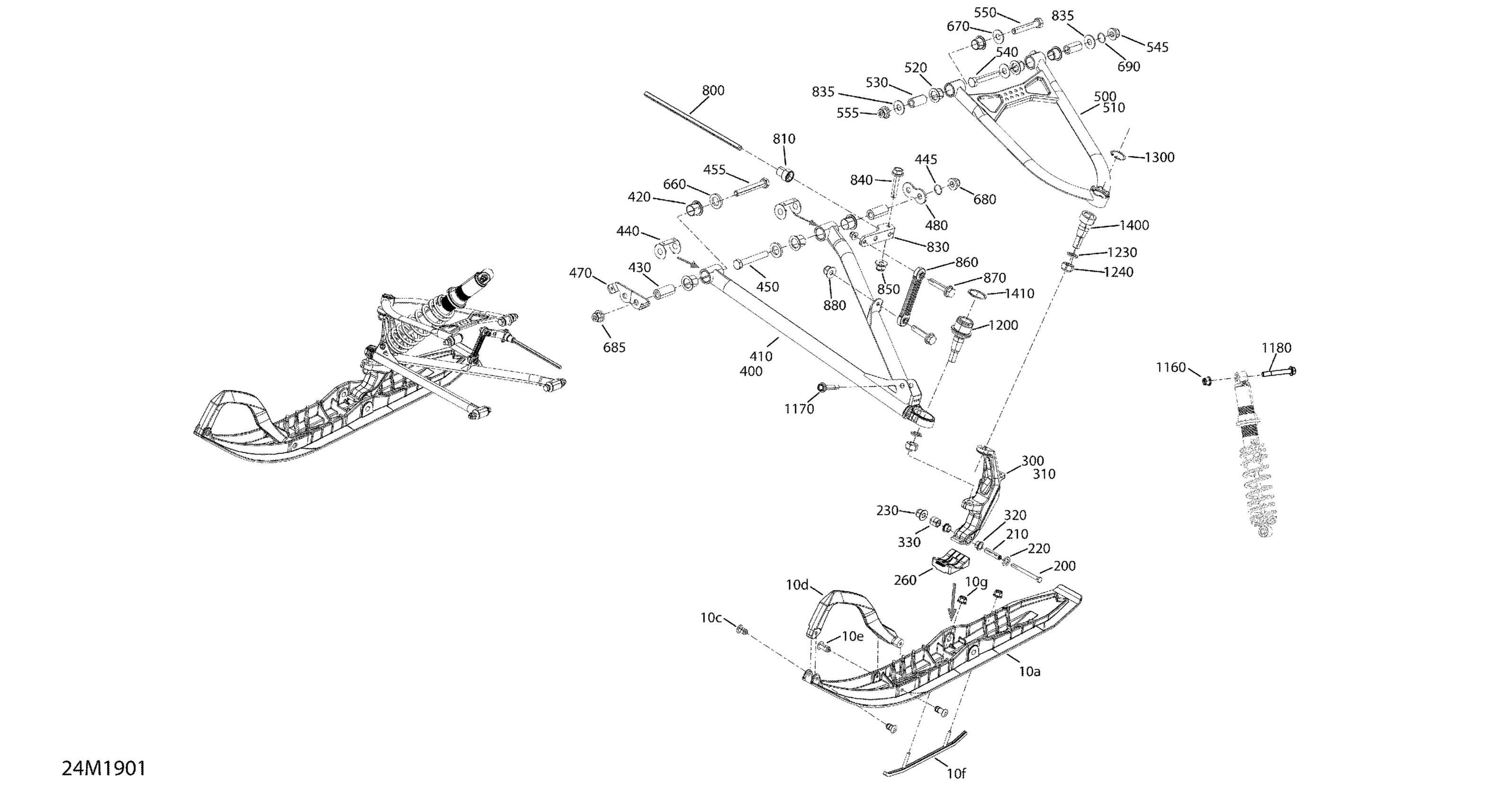

Ski-Doo 003 - EXPEDITION SPORT 900 ACE, 2019 07- Front Suspension And Ski - REV GEN4 Diagram

Black, Ski

Retainer 17mm long

Black, Handle

Retainer 23mm Long

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

Hex. Flange Elastic Nut M8

Hex. Screw M10 X 130 | Model-RT STD

Ski Axle

Washer

Hex. Flange Elastic M10 x 1.5

Ski Stopper

LH Anodized Ski Leg

RH Anodized Ski Leg

Leg Bushing

Spacer

RH Lower Arm

LH Lower Arm

Bushing

Sleeve

Wear Plate

O-Ring

Screw Hex. M10 X 70

Screw Hex. M10 X 70

Wear Plate

Plate

LH Upper Arm 39"

RH Upper Arm 39"

Bushing

Sleeve

Screw Hex. M10 X 60

Hex. Flange Elastic Nut M10

Screw Hex. M10 X 60

Hex. Flange Elastic Nut M10

Washer

Washer

Hex. Flange Elastic Nut M10

Hex. Flange Elastic Nut M10

O-Ring

Stabiliser

Bushing

Stabilisator Lever

Washer

Hex. Flange Screw M6 X 1.0 X 30

Hex. Flange Elastic Nut M6

Sway Bar Double Joint Link

Hex. Flange Screw M6 X 1.0 X 30

Hex. Flange Elastic Nut M6

Hex. Elastic Flange Nut M8

Hex. Flange Screw M8 X 58

Hex. Flange Screw M8 X 58

Ball Joint

Washer

Hex Elastic Nut M12 X 1.25

Circlip

Upper Ball Joint

Snap Ring

Flat Washer

Black, Wheel Cap

Washer

Hex. Flange Elastic M10 x 1.5

Ski Stopper

Hex. Flange Elastic M10 x 1.5
