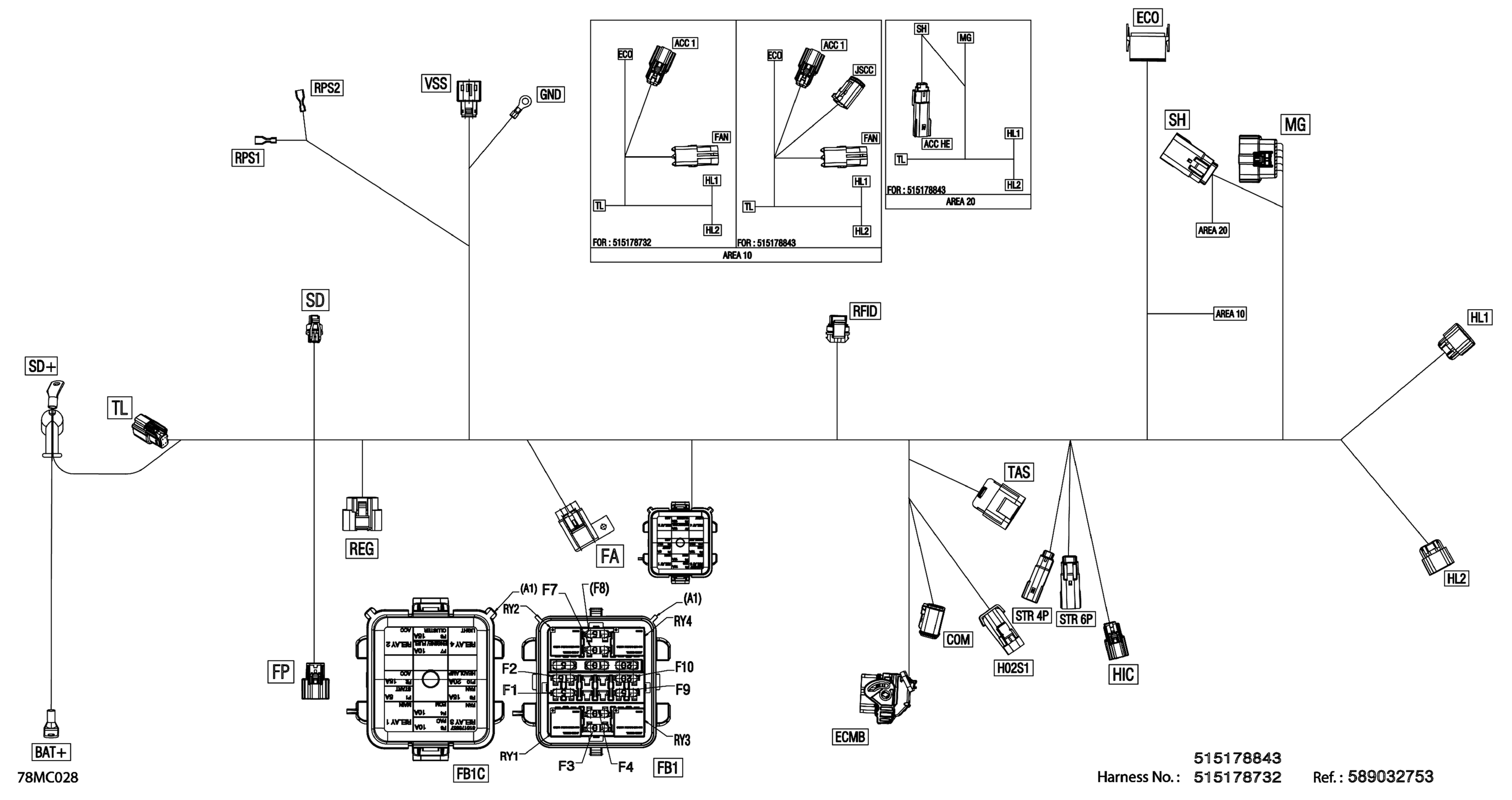

Ski-Doo EXPEDITION SPORT 600 ACE - (KCPA) - 2023 Electric - Main Harness - 515178732 Diagram

#

Description
Price

3000

Chassis Wiring Harness

515178732

$296.99

ACC1

2 Circuits Female Housing

278002853

$16.39

ACC1

Female Terminal

515178014

$2.21

COM

Female Housing 6 Circuits

710002706

$18.63

COM

Lock

710002705

$4.15

COM

Female Terminal

710005438

$3.88

COM

Female Terminal

710005439

$4.15

ECMB

Cover, 48 positions

710001591

$11.54

ECMB

Molex Housing, 48 Circuits

710001967

$132.06

ECMB

Plug

710001592

$2.06

ECMB

Plug

710001593

$2.06

ECMB

Female Terminal

710001589

$2.06

ECMB

Female Terminal

710001727

$2.93

ECO

4 Circuits Female Housing

515178175

$10.81

ECO

Female Terminal

515178302

$4.96

F1

Little Fuse, 5 Amperes

710000742

$8.31

F10

Little Fuse, 20 Amperes

710000746

$7.78

F2

Little Fuse, 15 Ampere

710000745

$7.78

F3

Little Fuse, 10 Amperes

710000744

$8.31

F4

Little Fuse, 10 Amperes

710000744

$8.31

F7

Little Fuse, 10 Amperes

710000744

$8.31

F8

Little Fuse, 15 Ampere

710000745

$7.78

F9

Little Fuse, 15 Ampere

710000745

$7.78

FA

Fuse

710001613

$8.31

FA

Fuse Holder

278001325

$8.31

FA

Female Terminal

710000357

$5.85

FAN

Female Housing, 2 Circuits

278000217

$8.72

FAN

Wire Seal

278000218

$4.00

FAN

Male Terminal

409004300

$5.30

FB1

Fuse Base Ass'y

278003448

$30.57

FB1

Seal Plug

278002880

$6.24

FB1

Wire Seal

278000218

$4.00

FB1

Wire Seal

278001065

$5.85

FB1

Female Terminal

710000890

$4.28

FB1

Female Terminal

710000918

$5.85

FB1

Female Terminal

278002578

$0.99

FB1C

Fuse Cover

515178557

$4.15

FB1C

Little Fuse, 10 Amperes

710000744

$8.31

FB1C

Little Fuse, 15 Ampere

710000745

$7.78

FB1C

Little Fuse, 20 Amperes

710000746

$7.78

FP

Female Housing

515178474

$32.06

FP

Female Terminal

515178018

$0.90

GND

Open Barrel Terminal

278001392

$4.00

HIC

Female Housing, 4 circuits

278003535

$24.60

HIC

Sealing Cap

278002860

$1.63

HIC

Female Terminal

515178018

$0.90

HL1

Female Housing

515178006

$13.27

HL1

Seal Wire

710001332

$3.12

HL1

Terminal

710001228

$3.12

HL2

Female Housing

515178006

$13.27

HL2

Seal Wire

710001332

$3.12

HL2

Terminal

710001228

$3.12

HO2S1

Clip

710000992

$3.88

HO2S1

Housing

710002466

$2.90

HO2S1

Lock

515178661

$4.15

HO2S1

Seal

278001482

$2.93

HO2S1

Gold Terminal

710002597

$2.90

HO2S1

Terminal

710000736

$5.19

MG

Female Housing 20 Circuits

278002858

$22.98

MG

Sealing Cap

278002860

$1.63

MG

Female Terminal

515178018

$0.90

MG

Female Terminal

515178014

$2.21

REG

Female Housing, 3 Circuits

710000879

$24.60

REG

Cap

710000882

$10.55

REG

Seal

710000881

$16.39

REG

Female Terminal

710000877

$7.25

RFID

Housing

710001161

$10.51

RFID

Wire Seal

710001163

$5.85

RFID

Female Terminal

710001164

$6.79

RPS1

Female Terminal

710000082

$5.85

RPS2

Female Terminal

710000082

$5.85

RY1

Relay

715900824

$18.63

RY2

Relay

715900824

$18.63

RY3

Relay

715900824

$18.63

RY4

Relay

715900824

$18.63

SD

Female Housing, 2 Circuits

515177192

$7.25

SD

Seal Wire

710001332

$3.12

SD

Terminal

710000925

$2.93

SD+

Terminal

515177214

$6.24

SH

12 Circuits Male Housing

515178015

$11.18

SH

Male Terminal

515178013

$2.93

STR 4P

4 Circuits Male Housing

515178176

$11.18

STR 4P

Male Terminal

515178013

$2.93

STR 6P

Male Housing, 6 Circuits

278002906

$12.49

STR 6P

Male Terminal

515178013

$2.93

TAS

Clip

710000992

$3.88

TAS

Housing

710001231

$11.69

TAS

Seal

710001233

$2.93

TAS

Terminal

710001224

$2.93

TL

Female Housing Connector 4 Pins W/O CPA

515178346

$13.18

TL

Female Terminal

515178018

$0.90

TL

Female Terminal

515178014

$2.21

VSS

Housing

515178024

$34.30

VSS

Female Terminal

515178018

$0.90
