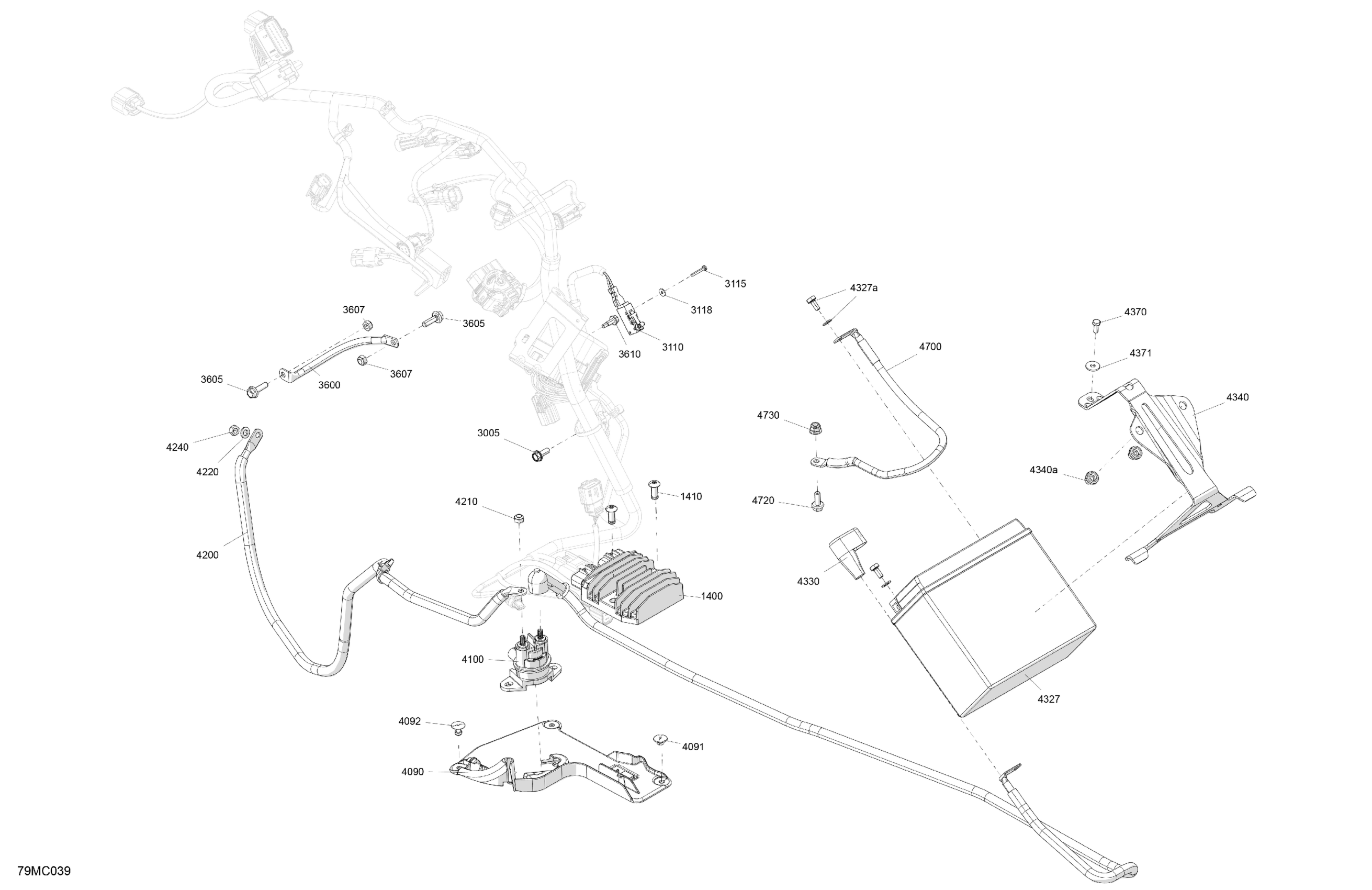

Ski-Doo EXPEDITION SPORT 600 ACE - (KCPA) - 2023 Electric - Lower Section Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

Monobolt Rivet 6.4

293150182

$2.82

Hex. Flange Screw M6 X 16

250001062

$1.39

Switch Ass'y

515177460

$47.73

Hex Screw M3 X 20

207132044

$2.00

Flat Washer M3, Stainless

234032600

$0.52

Ground Wire

515178338

$14.90

Hex. Flange Screw M6 X 20

207662044

$1.91

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Hex. Flange Screw M5 X 16

250000911

$0.81

Starter Relay Support

515178244

$3.27

Pop Rivet 3/16"

293150103

$0.52

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

Starter Relay

278003012

$40.27

Battery Wire

515178336

$43.25

Elastic Stop Nut M6

232561434

$1.78

Flat Washer 6 mm

234061410

$1.19

Elastic Stop Nut M6

232561434

$1.78

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$154.45

Battery Bolt Kit

250000282

$3.39

Protector Cap | STD

710001817

$10.51

Battery Strip | Includes 4340 to 4340a

515177870

$14.90

Insert

293450275

$11.36

Hex. Screw M5 X 12

207151244

$0.85

Washer | DS 650 X

391301600

$0.46

Ground Wire

515178155

$24.60

Hex. Flange Screw M6 X 16

207661644

$0.70

Elastic Flange Nut M6 X 1.0

233261416

$2.00
