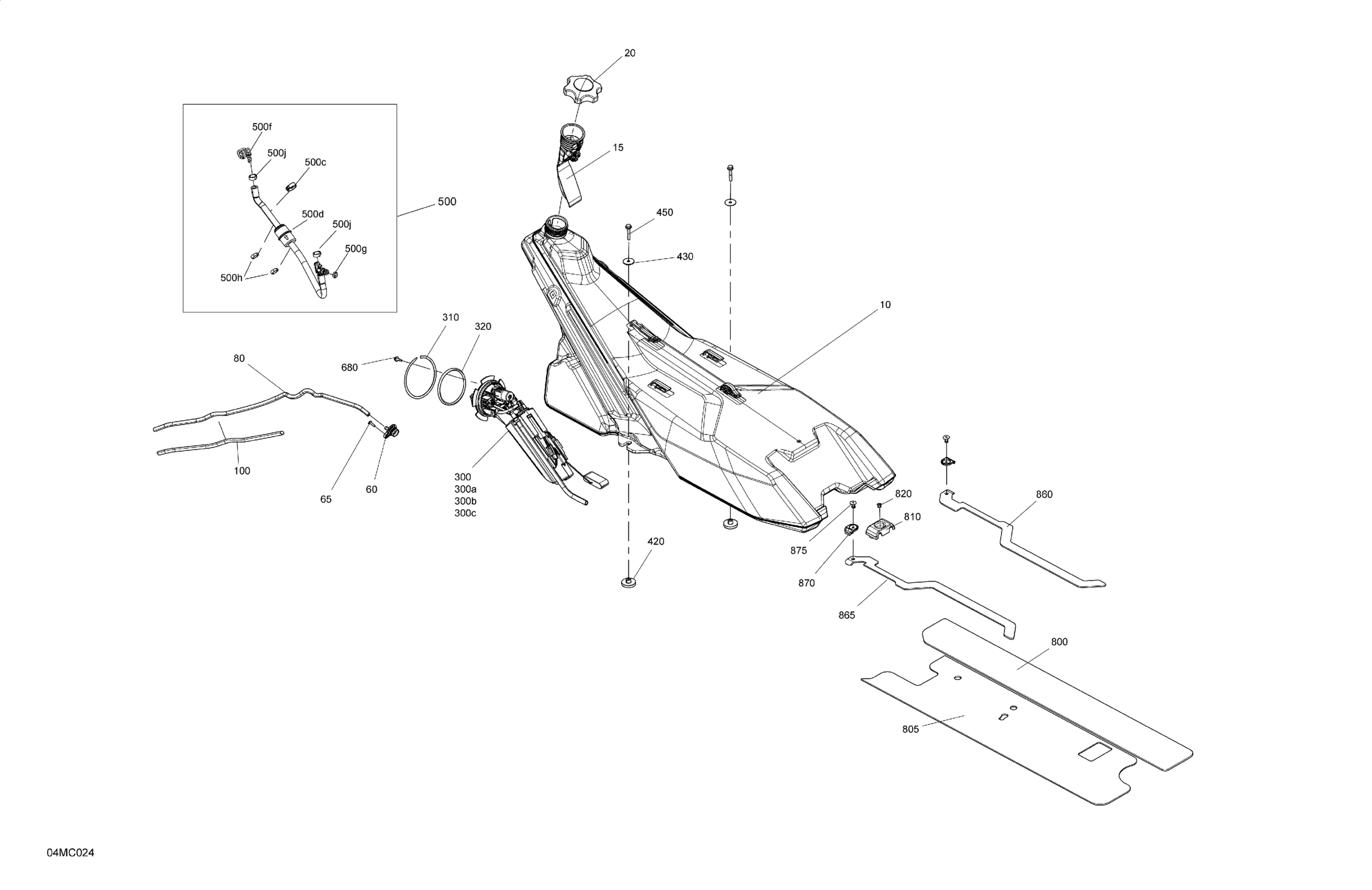

Ski-Doo EXPEDITION SPORT 600 ACE - (KCPA) - 2023 Engine - Fuel Diagram

Description

Price

Fuel Tank

415130432

$269.97

Tube Ass'y

513033959

$26.89

Fuel Tank Cap

513033969

$25.35

Check Valve

513033849

$36.89

Truss Torx Screw K40 X 16

250000918

$2.06

Polyurethane Hose 10000Mm Long

219704410

$46.12

100

Protector Tube | Not shown

503195447

$12.58

300

Fuel Pump Ass'y | Includes 300 to 300b

513034235

$257.66

300a

Fuel Filter

415131068

Unavailable

300b

Fuel Level Sensor

415130726

$136.89

300c

Canister

415130507

$80.74

310

Circlip

513033798

$12.83

320

O-Ring

513033862

$17.66

420

Socket

513034007

$7.52

430

Washer | Not Shown

503193995

$4.38

450

Hex. Flange Screw M6 X 35

207663544

$0.74

500

Hose Ass'y | Includes 500 to 500k

513034122

$71.51

500c

Ring

513033910

$6.86

500d

Fuel Filter

513034047

$20.89

500f

Elbow Fitting 90°

293710105

$10.58

500g

O-Ring

513033668

$9.45

500h

Oetiker Clamp

293650125

$2.69

500j

Crimp Clamp

293650053

$2.42

680

Hex. Flange Screw M5 X 16

250000911

$0.70

800

Insulated Foam

513033913

$5.25

805

Insulated Foam

513033914

$15.35

810

Tank Guide

513033826

$2.12

820

Pop Rivet 3/16"

390402200

$0.26

860

Foam

513033915

$17.66

865

Foam

513033916

$4.43

870

Retainer Plate

513033917

$0.54

875

Pop Rivet 3/16" | DS 650 X

293150104

$1.37
