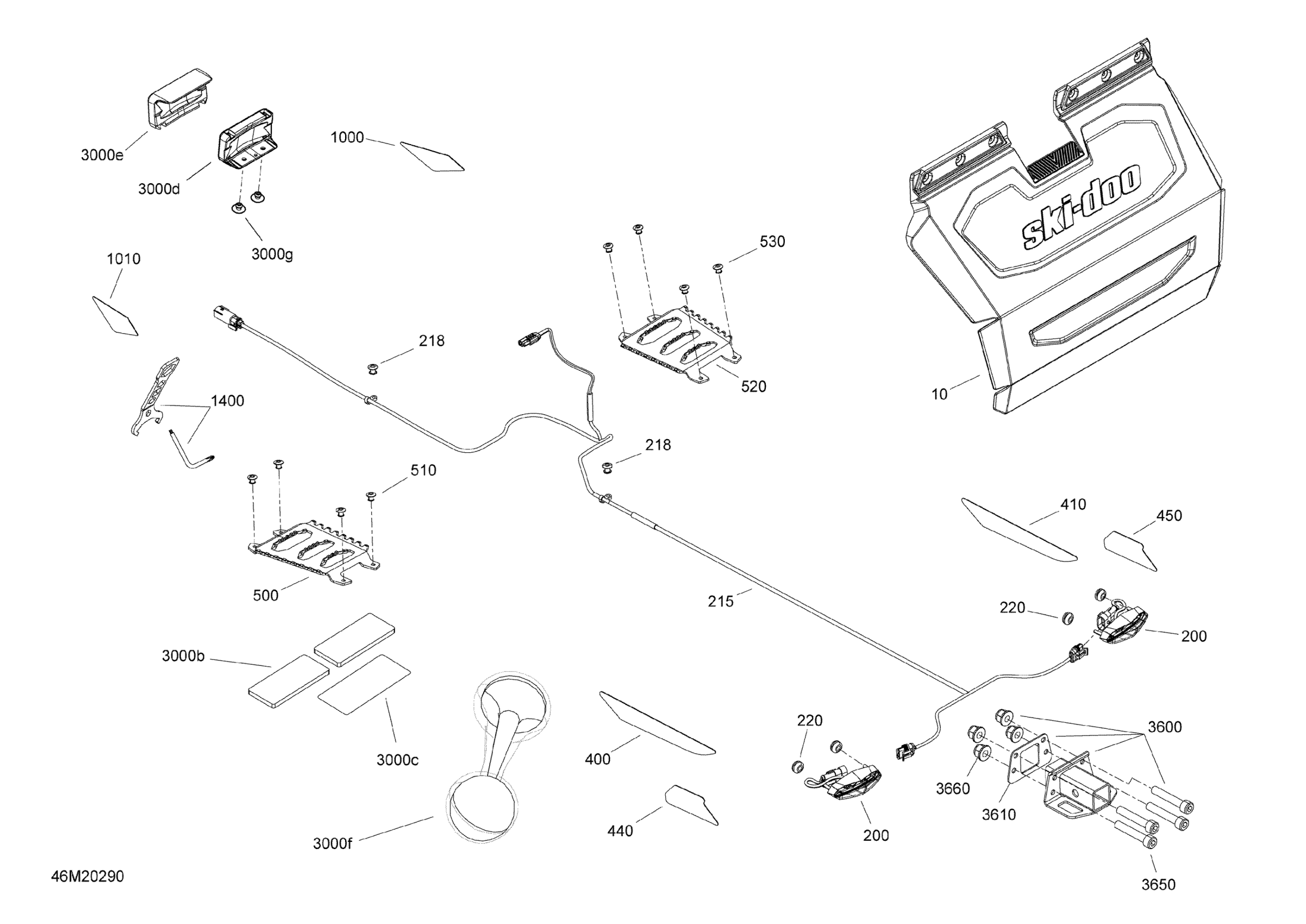

Ski-Doo 003 - EXPEDITION LE 900 ACE, Europe, 2020 10- Utilities Diagram

Description

Price

Snow Guard

520001712

$106.99

200

Tail Light

520002636

$105.99

215

Taillight Wiring Harness

515178633

$58.99

218

Pop Rivet 3/16"

390402200

$0.35

220

Grommet

293720101

$0.77

400

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

410

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

440

LH Rear Red Reflector

520001740

$4.99

450

RH Rear Red Reflector

520002016

$4.99

500

Deep Black, Passenger Footrest

520002896

$48.99

510

Rivet 3/16"

293150102

$0.70

520

Deep Black, Passenger Footrest

520002896

$48.99

530

Rivet 3/16"

293150102

$0.70

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400b

520001767

$50.99

3000b

Amber, Reflector

520000271

$19.99

3000c

White, Reflector

415037900

$22.99

3000d

Reflector Support | Included 3000d to 3000e

520001787

$209.99

3000e

Deep Black, Reflector Support

520000871

$5.79

3000f

Horn

549011291

$35.99

3000g

Pop Rivet 3/16"

293150103

$0.55

3600

Trailer Hitch Kit | Includes 3600 to 3600d

860202062

$48.99

3610

RH Chassis Reinforcement

511001560

$4.59

3650

Hex. Flange Screw M8 X 45

207684544

$3.80

3660

Hex. Flange Elastic Nut M8

233281414

$1.47

3670

Cover | Model-T3

28056

$5.89
