Description

Price

10a

Deep Black, Rail Suspension 154 | Includes 10a to 10a1

503195842

$309.99

10b

Slider 154

503195693

$34.99

10c

Phillips Screw M6 X 25

208562531

$2.11

10d

Elastic Stop Nut M6

232561434

$1.99

10e

Slide Protector

503192530

$19.99

10f

Washer

250200140

$1.01

10g

Hex. Flange Screw M5 X 25

207652544

$0.50

10h

Flange Elastic Nut M5

233251434

$2.00

100a

Black, RH Pivot Support Long

503195759

$88.99

100b

Black, LH Pivot Support Long

503195760

$88.99

100c

Welded Pivot | Includes 100c to 100c3

503191414

$94.99

100d

Hex. Flange Screw M8 X 25

207682534

$2.11

100e

Hex. Elastic Stop Nut M8

232581414

$0.56

100f

Cam Axle

503191711

$28.99

100g

RH Spring Cam

503191190

$15.29

100h

LH Spring Cam

503191668

$12.58

100j

LH Block

503192426

$16.49

100k

RH Block

503192427

$16.49

100m

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

100n

Block Guide

503189488

$39.99

100p

Socket Head Screw M12 X 35

205523554

$4.44

100q

Washer | 7415/7416. 7417/7418.

503189148

$2.85

100r

Grease Fitting

408200700

$3.49

100s

Spacer

503191713

$12.99

100t

Rode

503192437

$6.19

100u

Flat Washer M5

234051410

$0.53

100v

Handle

503192438

$4.99

100w

Torx Screw M5 X 14

250000742

$1.47

100x

Circlip

293370068

$0.98

100y

Compression Spring

503192436

$38.99

105

Lower Shaft

503191390

$28.99

110

Bushing

503189324

$14.15

115

Washer

503192496

$0.77

120

Hex. Screw S.Grip M10 X 55

250000605

$8.11

125

Spring

503194624

$30.49

130

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

130a

Ball Bearing | Package-STD

503190396

$14.30

130b

Retaining Ring

415129371

$12.01

135

Casted Support

503193894

$16.49

140

Labyrinth Seal

503190434

$6.09

145

Wheel Cup M6

503191820

$4.99

150

Hex. Flange Screw M6 X 70

250000944

$4.44

155

Hex. Flange Elastic Nut M6

233261466

$2.00

160

Hex. Flange Screw M6 X 25

250000945

$4.44

165

Hex. Flange Elastic Nut M6

233261466

$2.00

170

Black, Wheel Cap

503192771

$2.39

175

Rubber Stopper

503191291

$19.99

180

Washer

503191273

$1.35

185

Pop Rivet 3/16

293150224

$1.01

300

Rubber Stopper

503190576

$12.99

305

Washer

503191273

$1.35

306

Pop Rivet 3/16

293150224

$1.01

310

Rubber Stopper

503190576

$12.99

315

Washer

503191273

$1.35

316

Pop Rivet 3/16

293150224

$1.01

400a

Front Wheel Axle

503195735

$20.99

400b

Black, Wheel Ass'y

503195125

$33.99

420

Washer

503192496

$0.77

430

Socket Head Screw M10 X 35

205503554

$7.51

440

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

440a

Ball Bearing | Package-STD

503190396

$14.30

440b

Retaining Ring

415129371

$12.01

441

Casted Support

503193894

$16.49

442

Labyrinth Seal

503190434

$6.09

443

Wheel Cup M6

503191820

$4.99

444

Hex. Flange Screw M6 X 70

250000944

$4.44

445

Hex. Flange Elastic Nut M6

233261466

$2.00

446

Hex. Flange Screw M6 X 25

250000945

$4.44

447

Hex. Flange Elastic Nut M6

233261466

$2.00

448

Black, Wheel Cap

503192771

$2.39

450

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

450a

Ball Bearing | Package-STD

503190396

$14.30

450b

Retaining Ring

415129371

$12.01

451

Casted Support

503193894

$16.49

452

Labyrinth Seal

503190434

$6.09

453

Wheel Cup M6

503191820

$4.99

454

Hex. Flange Screw M6 X 70

250000944

$4.44

455

Hex. Flange Elastic Nut M6

233261466

$2.00

456

Hex. Flange Screw M6 X 25

250000945

$4.44

457

Hex. Flange Elastic Nut M6

233261466

$2.00

458

Black, Wheel Cap

503192771

$2.39

460

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

460a

Ball Bearing | Package-STD

503190396

$14.30

460b

Retaining Ring

415129371

$12.01

461

Casted Support

503193894

$16.49

462

Labyrinth Seal

503190434

$6.09

463

Wheel Cup M6

503191820

$4.99

464

Hex. Flange Screw M6 X 70

250000944

$4.44

465

Hex. Flange Elastic Nut M6

233261466

$2.00

466

Hex. Flange Screw M6 X 25

250000945

$4.44

467

Hex. Flange Elastic Nut M6

233261466

$2.00

468

Black, Wheel Cap

503192771

$2.39

600

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$51.99

600a

Ball Bearing | Package-STD

503190396

$14.30

600b

Retaining Ring

415129371

$12.01

610

Rear Axle

503191408

$65.99

620

Spacer

503196316

$28.99

660

Rear Wheel Spacer

503190428

$8.14

670

Black, Wheel Ass'y, 165 mm | Includes 670 to 670b

503192140

$51.99

670a

Ball Bearing | Package-STD

503190396

$14.30

670b

Retaining Ring

415129371

$12.01

680

Labyrinth Seal

503190682

$6.19

690

Labyrinth Seal

503190434

$6.09

710

Washer

503191910

$2.32

720

Conical Spring Washer 10 mm

234201474

$1.69

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.44

800

Spring Support Kit

861805547

$10.49

810

Spring Support Kit

861805547

$10.49

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

900

Tensioner

503192583

$8.29

910

Spacer

503193250

$16.49

920

Hex Screw M10 x 100

230100054

$6.45

930

Elastic Locking Nut M10

233601466

$2.11

940

Hex. Cap Screw M6 X 30

207063054

$6.39

950

Hex. Flange Elastic Nut M6

233261466

$2.00

1010

Spacer

503195519

$2.19

1090

Shaft

503193967

$139.99

1100

Spacer

503195520

$5.59

1105

Spacer

503195521

$5.59

1106

Washer

503189273

$3.28

1110

Washer

503189276

$3.28

1120

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

1140

Axle Strap

503191418

$54.99

1150

Washer

503192496

$0.77

1160

Socket Head Screw M10 X 35

205503554

$7.51

1810

Black, Wheel Cap

503192771

$2.39

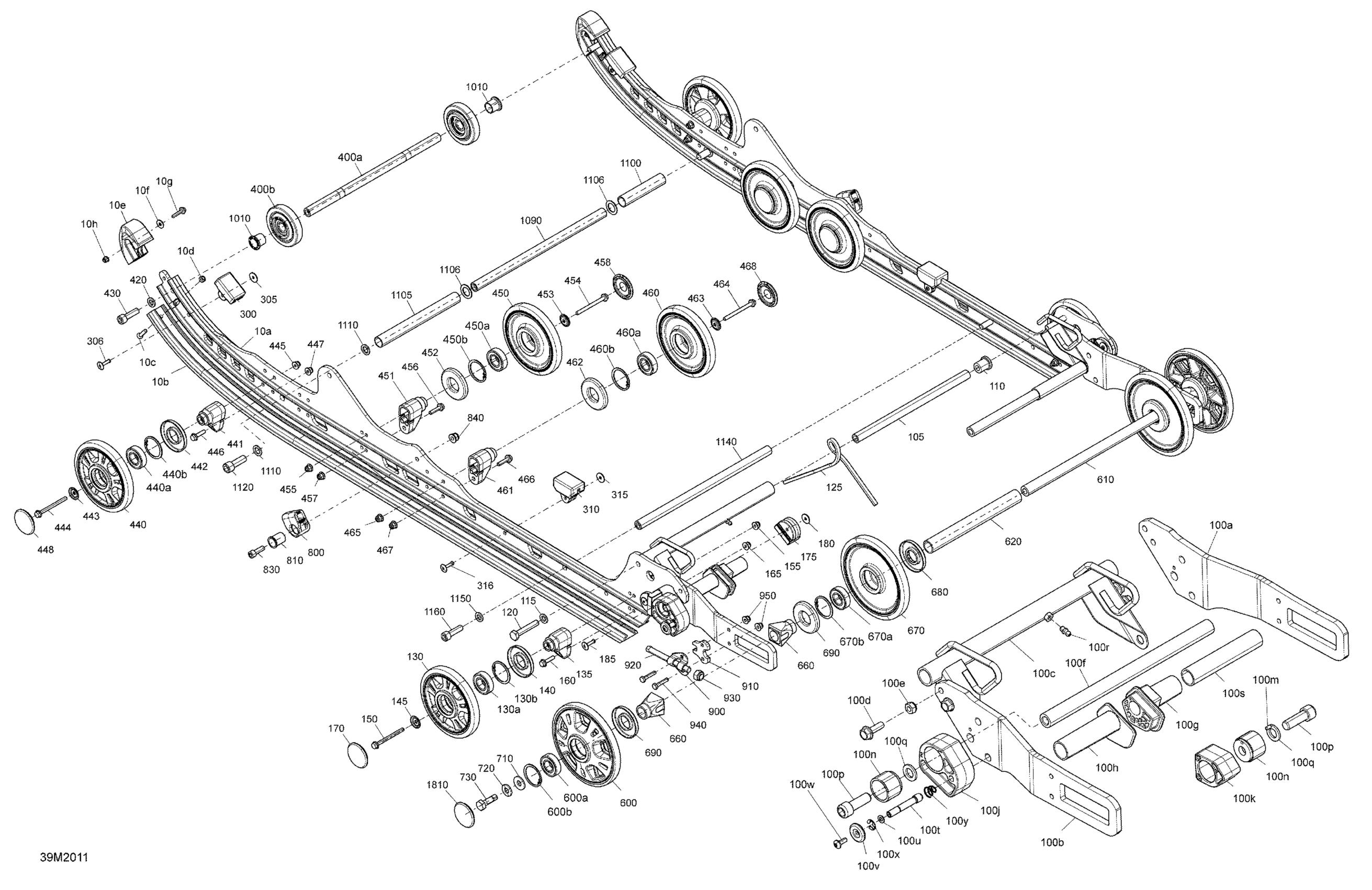

Ski-Doo 003 - EXPEDITION LE 900 ACE, Europe, 2020 08- Suspension - Rear - Lower Section - LE Diagram

Deep Black, Rail Suspension 154 | Includes 10a to 10a1

Slider 154

Phillips Screw M6 X 25

Elastic Stop Nut M6

Slide Protector

Washer

Hex. Flange Screw M5 X 25

Flange Elastic Nut M5

Black, RH Pivot Support Long

Black, LH Pivot Support Long

Welded Pivot | Includes 100c to 100c3

Hex. Flange Screw M8 X 25

Hex. Elastic Stop Nut M8

Cam Axle

RH Spring Cam

LH Spring Cam

LH Block

RH Block

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

Block Guide

Socket Head Screw M12 X 35

Washer | 7415/7416. 7417/7418.

Grease Fitting

Spacer

Rode

Flat Washer M5

Handle

Torx Screw M5 X 14

Circlip

Compression Spring

Lower Shaft

Bushing

Washer

Hex. Screw S.Grip M10 X 55

Spring

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

Ball Bearing | Package-STD

Retaining Ring

Casted Support

Labyrinth Seal

Wheel Cup M6

Hex. Flange Screw M6 X 70

Hex. Flange Elastic Nut M6

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6

Black, Wheel Cap

Rubber Stopper

Washer

Pop Rivet 3/16

Rubber Stopper

Washer

Pop Rivet 3/16

Rubber Stopper

Washer

Pop Rivet 3/16

Front Wheel Axle

Black, Wheel Ass'y

Washer

Socket Head Screw M10 X 35

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

Ball Bearing | Package-STD

Retaining Ring

Casted Support

Labyrinth Seal

Wheel Cup M6

Hex. Flange Screw M6 X 70

Hex. Flange Elastic Nut M6

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6

Black, Wheel Cap

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

Ball Bearing | Package-STD

Retaining Ring

Casted Support

Labyrinth Seal

Wheel Cup M6

Hex. Flange Screw M6 X 70

Hex. Flange Elastic Nut M6

Hex. Flange Screw M6 X 25
