Description

Price

10

Deep Black, Chassis Tunnel Module 154" | Includes 10 to 10ax

518334282

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10g

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10n

Front Suspension Arm Reinforcement

518335959

$4.19

10p

RH Rear Suspension Support

518333792

$109.99

10q

LH Rear Suspension Support

518333791

$109.99

10r

RH Footrest Reinforcement

518329789

$19.99

10s

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10t

RH Roller

518329648

$194.99

10u

LH Roller

518328452

$194.99

10v

RH Tunnel Liner

518329646

$35.99

10w

LH Tunnel Liner

518329647

$35.99

10y

Radiator Tunnel Ass'y 154

518332622

$709.99

10aa

Clinch Nut M6 Hexsert

605636003

$4.23

10ab

Insert

293450275

$12.99

10ac

Clinch Nut M6 Hexsert

605636003

$4.23

10ag

RH Footrest

518331822

$24.49

10ah

LH Footrest

518332978

$43.99

10am

Avex Rivet

390909100

$0.30

10an

Avex Rivet

390909200

$0.30

10at

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10au

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10av

Collar Huck Magna-Grip 6.4

293150149

$0.48

20

Black, Plug

293730052

$9.19

35

RH Stirrup Reinforcement

518331727

$19.99

40

Insert

293450275

$12.99

42

Torx Head Screw M6 X 16

250000717

$2.11

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

860

Deep Black LH Rear Footrest Reinforcement

518330858

$18.49

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

875

Rivet Ornit 6,5 X 16.5

293150267

$2.40

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

885

Collar Huck Magna-Grip 6.4

293150149

$0.48

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09

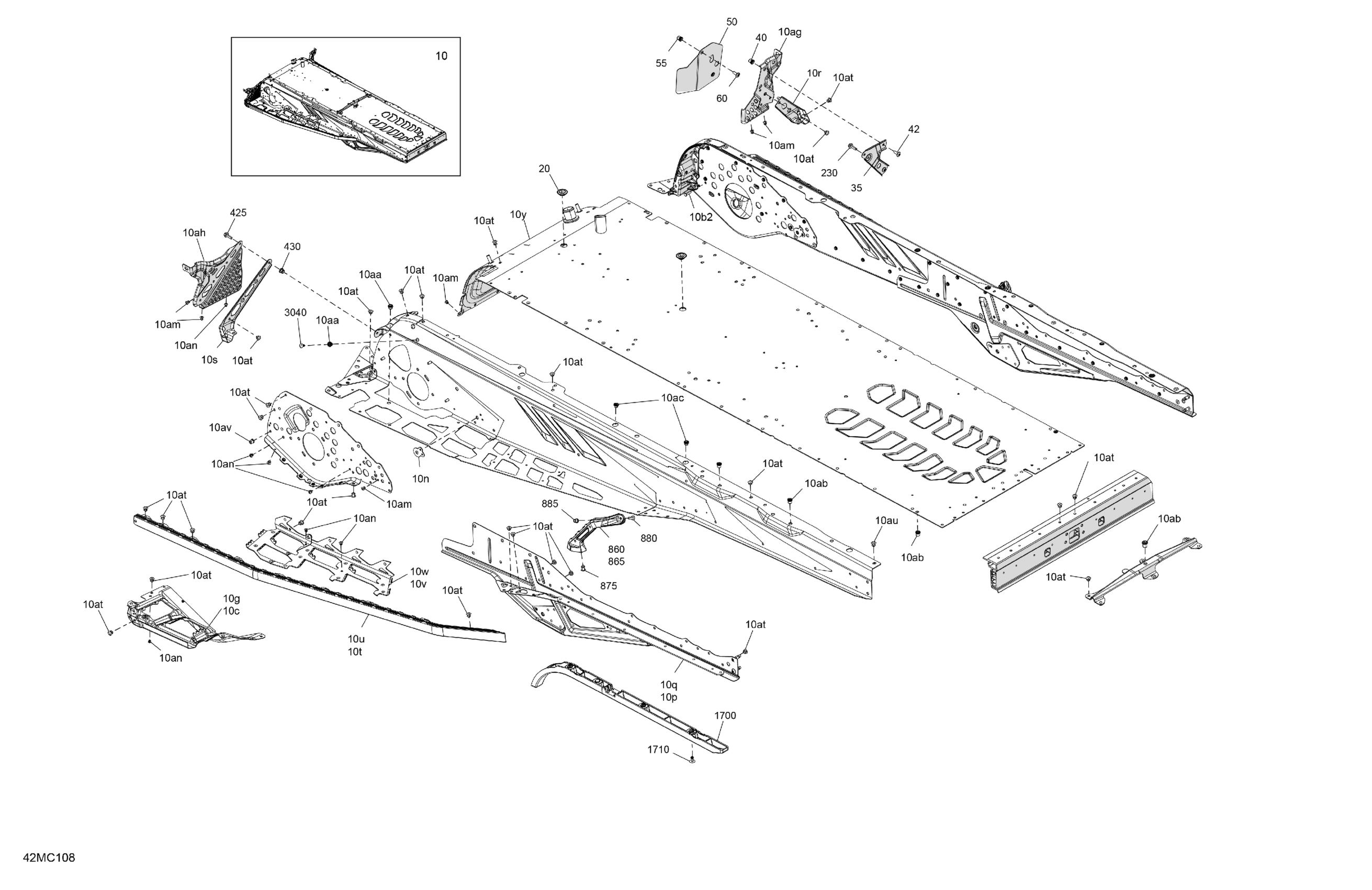

Ski-Doo 003 - EXPEDITION LE 900 ACE - 20 INCH - Europe, 2023 06- Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 154" | Includes 10 to 10ax

Clinch Stud M6 X 20

Deep Black, RH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

Front Suspension Arm Reinforcement

RH Rear Suspension Support

LH Rear Suspension Support

RH Footrest Reinforcement

Deep Black, LH Chassis Reinforcement

RH Roller

LH Roller

RH Tunnel Liner

LH Tunnel Liner

Radiator Tunnel Ass'y 154

Clinch Nut M6 Hexsert

Insert

Clinch Nut M6 Hexsert

RH Footrest

LH Footrest

Avex Rivet

Avex Rivet

Rivet Ornit 6,5 X 12.5

Ornit Rivet 6,5 X 14.5

Collar Huck Magna-Grip 6.4

Black, Plug

RH Stirrup Reinforcement

Insert

Torx Head Screw M6 X 16

Heat Shield

Insert

Torx Head Screw M6 X 16

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Deep Black LH Rear Footrest Reinforcement

Deep Black, RH Rear Footrest Reinforcement

Rivet Ornit 6,5 X 16.5

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

Front Protector

Pop Rivet 3/16”

Dart
