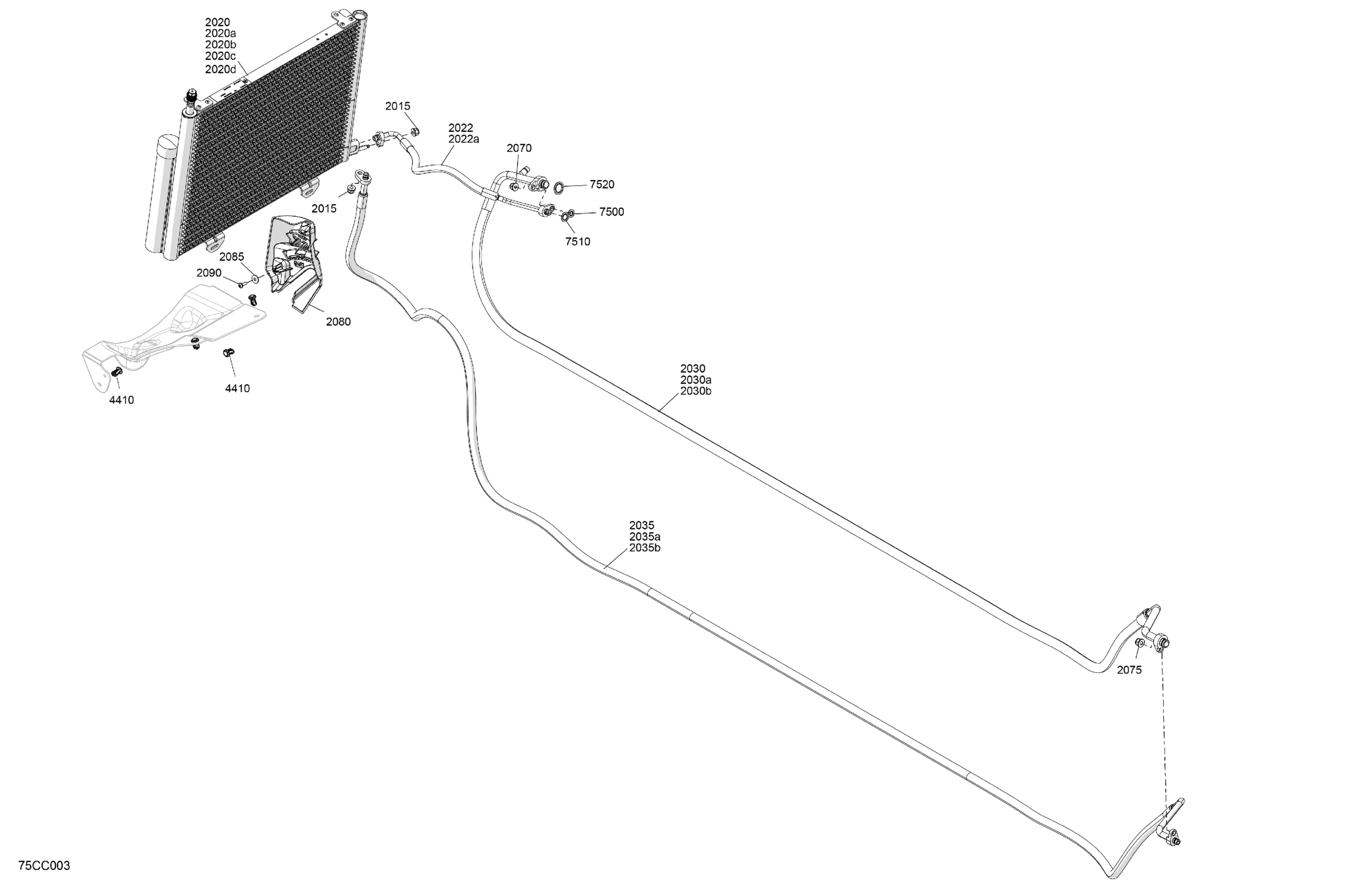

Can-Am 003 - Defender PRO HD10 - LTD CAB - North America, 2023 07- Enclosure Cab - Air Conditioning Condenser Diagram

Description

Price

2015

Hex. Flange Elastic Nut M8

233281414

$1.47

2020

Condenser | Includes 2020 to 2020d

705801096

$729.99

2020a

Plastic Cap

715900678

$8.29

2020b

Pressure Switch

715900673

$23.99

2020c

Dessicant Cartridge

715900672

$47.99

2020d

O-RIng

715900915

$3.29

2022

Hose | Includes 2022 to 2022a

705800670

$134.99

2022a

O'Ring | Not Shown

715900707

$3.28

2030

Compressor Hose | Includes 2030 to 2030b

705800663

$154.99

2030a

O'Ring

715900708

$4.44

2030b

Plastic Cap

715900709

$4.19

2035

Compressor Hose | Includes 2035 to 2035b

705800664

$154.99

2035a

Pressure Switch

715900673

$23.99

2035b

O'Ring | Not Shown

715900707

$3.28

2070

Hex. Flange Elastic Nut M8

233281414

$1.47

2075

Hex. Flange Elastic Nut M8

233281414

$1.47

2080

Hose Support

705800779

$16.49

2085

Stainless Steel Flat Washer

234062670

$2.11

2090

Torx Screw K50 X 16

250000720

$1.69

4410

Tuflok Plastic Rivet

293150230

$1.47

7500

O-Ring Seal

705801218

$10.49

7510

O-Ring Seal

705801219

$11.49

7520

O-Ring Seal

705801220

$11.49
