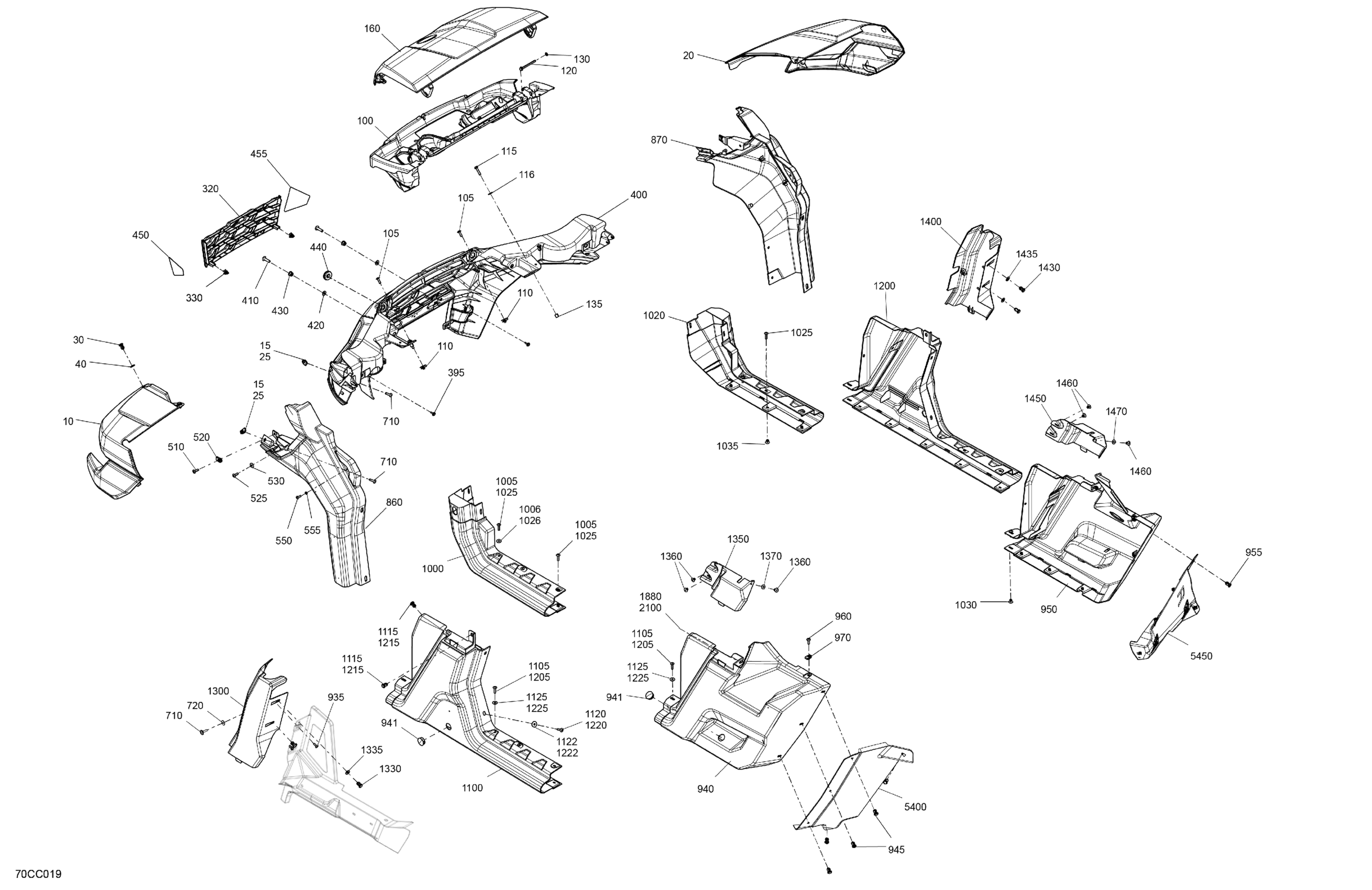

Can-Am Defender PRO HD10 - LTD CAB - 2023 Body - System Diagram

#

Description
Price

10

Asphalt Grey, LH Front Fender

705016418

$184.30

15

Panel Nut M6 X 1.0

250100198

$1.73

20

Asphalt Grey, RH Front Fender

705016421

$184.30

25

Panel Nut M6 X 1.0

250100198

$1.73

30

Tuflok Plastic Rivet

293150230

$1.21

40

Washer

503192494

$3.01

100

Multi Purpose Support

705013766

$39.52

105

Torx Screw M6 X 20

250000722

$1.34

110

Panel Nut M6 X 1.0

250100198

$1.73

115

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

116

Stainless Steel Flat Washer

234062670

$1.74

120

Hex. Flange Screw M6 X 75

207667554

$3.61

130

Push Nut

732610072

$1.72

135

Bushing

293900125

$2.69

160

Asphalt Grey, Front Hood

705016424

$337.28

160

Front Hood Ass'y

715008396

$346.24

320

Grille

705013590

$23.85

330

Clip

517306478

$1.03

395

Screw M4 X 16

250000725

$2.87

400

Deep Black, Front Fascia

705013591

$206.69

410

Torx Screw M8 X 30

250000886

$1.74

420

Washer

503192494

$3.01

430

Hex. Flange Elastic Nut M8

233281414

$1.14

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$10.82

455

RH Front Reflector

704905073

$10.82

510

Torx Screw M6 X 20

250000722

$1.34

520

Panel Nut M6 X 1.0

250100198

$1.73

525

Torx Screw M6 X 20

250000722

$1.34

530

Stainless Steel Flat Washer

234062670

$1.74

550

Torx Screw K50 X 16

250000720

$1.39

555

Flat Washer M5

234051670

$1.74

710

Torx Truss Screw M6 X 25

250000807

$1.74

720

Stainless Steel Flat Washer

234062670

$1.74

860

LH Front Lateral Panel

705008152

$55.94

870

RH Front Lateral Panel

705008153

$55.94

935

Torx Screw K50 X 16

250000720

$1.39

940

LH Body Panel Kit

715007134

$107.43

940

LH Body Panel Kit

715007134

$107.43

941

Black, Nylon Cap

414916600

$4.19

945

Tuflok Plastic Rivet

293150230

$1.21

950

RH Body Panel Kit

715007136

$107.43

950

RH Body Panel Kit

715007136

$107.43

955

Tuflok Plastic Rivet

293150230

$1.21

960

Torx Screw M6 X 20

250000722

$1.34

970

Panel Nut M6 X 1.0

250100198

$1.73

1000

Deep Black, LH Central Panel

705019037

$64.15

1005

Torx Truss Screw M6 X 25

250000807

$1.74

1006

Stainless Steel Flat Washer

234062670

$1.74

1006

Stainless Steel Flat Washer

234062670

$1.74

1020

Deep Black, RH Central Panel

705019038

$67.13

1025

Torx Truss Screw M6 X 25

250000807

$1.74

1026

Stainless Steel Flat Washer

234062670

$1.74

1026

Stainless Steel Flat Washer

234062670

$1.74

1030

Pop Rivet 3/16”

293150108

$1.19

1035

Pop Rivet 3/16”

293150108

$1.19

1100

LH Central Body Panel

705015817

$99.22

1105

Torx Truss Screw M6 X 25

250000807

$1.74

1115

Tuflok Plastic Rivet

293150230

$1.21

1120

Torx Truss Screw M6 X 25

250000807

$1.74

1122

Flat Washer M6.6 X 22

250200162

$1.91

1125

Stainless Steel Flat Washer

234062670

$1.74

1125

Stainless Steel Flat Washer

234062670

$1.74

1200

RH Central Body Panel

705015818

$99.22

1205

Torx Truss Screw M6 X 25

250000807

$1.74

1215

Tuflok Plastic Rivet

293150230

$1.21

1220

Torx Truss Screw M6 X 25

250000807

$1.74

1222

Flat Washer M6.6 X 22

250200162

$1.91

1225

Stainless Steel Flat Washer

234062670

$1.74

1225

Stainless Steel Flat Washer

234062670

$1.74

1300

LH Rear Cage Cover Kit

715003564

$73.85

1330

Tuflok Plastic Rivet

293150230

$1.21

1335

Washer

503192494

$3.01

1350

Deep Black, LH Rear Body Panel

705014748

$103.70

1360

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

1370

Washer M5

250200025

$0.61

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$73.85

1430

Tuflok Plastic Rivet

293150230

$1.21

1435

Washer

503192494

$3.01

1450

Deep Black, RH Rear Body Panel

705014749

$103.70

1460

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

1470

Washer M5

250200025

$0.61

1880

Tuflok Plastic Rivet

293150230

$1.21

2100

Tuflok Plastic Rivet

293150230

$1.21

5400

LH Rear Deflector

705016336

$46.24

5450

RH Rear Deflector

705016337

$46.24
