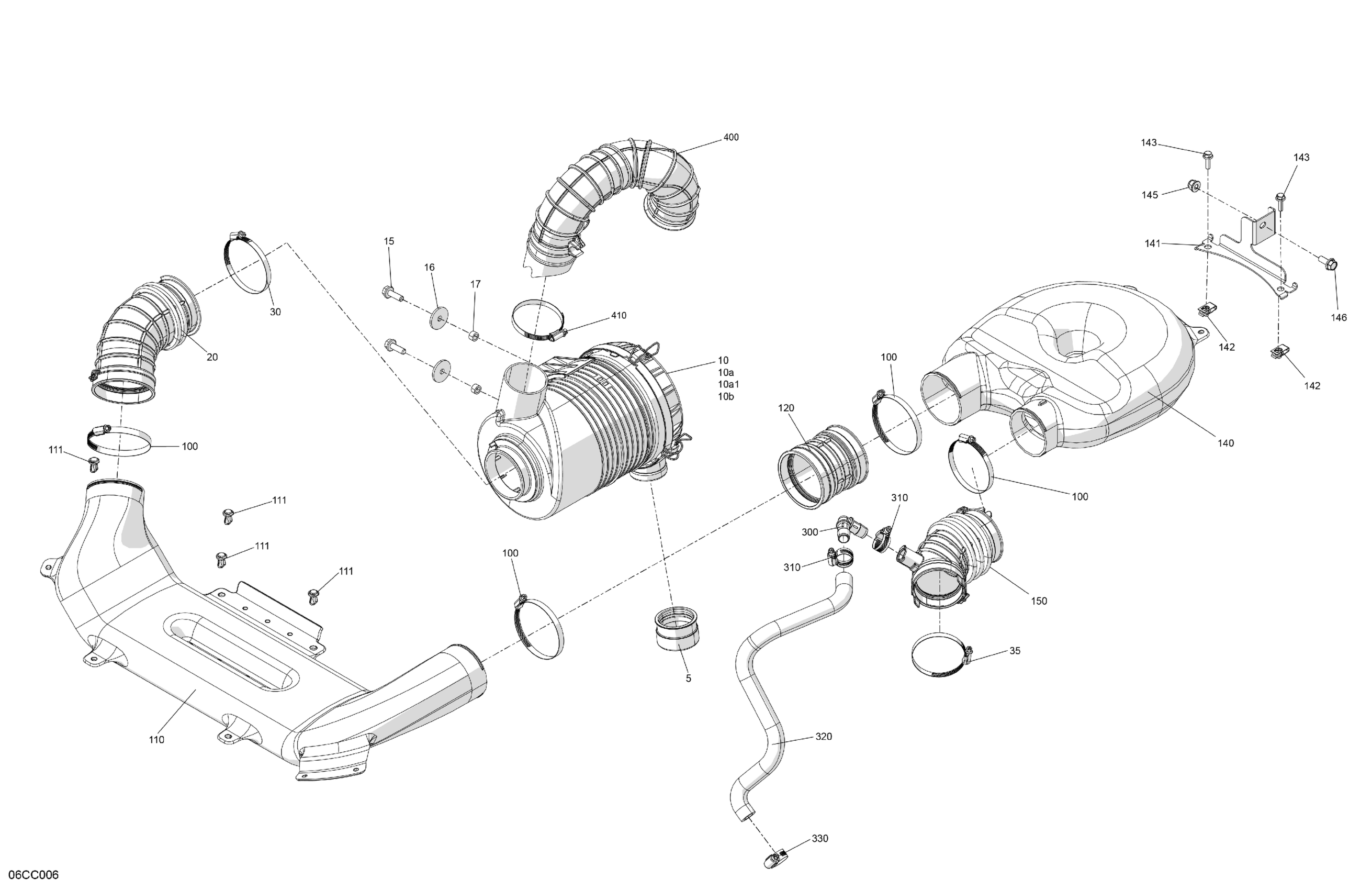

Can-Am Defender PRO HD10 - LTD CAB - 2023 Engine - Air Intake - Evap Diagram

Description

Price

Duct Bill Valve

715003114

$12.09

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$166.39

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$84.30

10a1

O-Ring

715900514

$17.13

10b

Air Filter

715900394

$49.22

Hex. Flange Screw M8 X 25

207682544

$0.90

Flat Washer M8

250200158

$1.74

Bushing

277000980

$12.43

Front Intake Duct

707800879

$25.34

Norma Clamp

293650096

$3.00

Norma Clamp

293650091

$4.46

100

Norma Clamp

293650096

$3.00

110

Central Intake Duct

707800836

$74.60

111

Tuflok Plastic Rivet

293150230

$1.21

120

Rear Intake Duct

707800880

$17.88

140

Air Inlet Box

707800877

$46.99

141

Support

707800940

$41.01

142

Panel Nut M6 X 1.0

250100198

$1.73

143

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

145

Hex. Flange Elastic Nut M8

233281414

$1.14

146

Hex. Flange Screw M8 X 20

207682044

$0.92

150

Rear Main Intake Duct

707800837

$25.34

300

Elbow Fitting 90

293710155

$7.72

310

Tridon Gear Clamp

293650173

$2.46

320

Crankcase Hose Formed

707800890

$33.55

330

Tridon Gear Clamp

293650173

$2.46

400

Air Inlet Tube

707800752

$39.52

410

Norma Clamp

293650091

$4.46
